Cutters
| ORDER CODE | TIP | ESD ORDER CODE | SAFETY CODE | CLIP TYPE | LENGTH (MM) | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|---|---|---|---|---|---|---|---|
| TR 30 58 |  | TR 30 58 D | TR 30 58 A | AL | 138mm | 8.5 | Ø 1.63mm | 14 awg |
| TR 5000 | | TR 5000 D | TR 5000 A | AF | 138mm | 12 | Ø 2.05mm | 12 awg |
| TR 5000 P | | TR 5000 P D | TR 5000 P A | AF | 138mm | 8 | Ø 1.30mm | 16 awg |
| TR 58 | | TR 58 D | TR 58 A | AL | 138mm | 11 | Ø 2.05mm | 12 awg |
| TRR 5000 | | TRR 5000 D | TRR 5000 A | AF | 138mm | 14 | Ø 2.59mm | 10 awg |
| TRR 58 | | TRR 58 D | TRR 58 A | AL | 160mm | 15 | Ø 2.59mm | 10 awg |
| CODE | TIP | HEAD | CUTTING(KG) | COPPER(⌀ MM) | COPPER(AWG) |
|---|
| ORDER CODE | TIP | HEAD | CUTTING FORCE (KG) | COPPER WIRE (⌀ MM) | COPPER WIRE (AWG) |
|---|

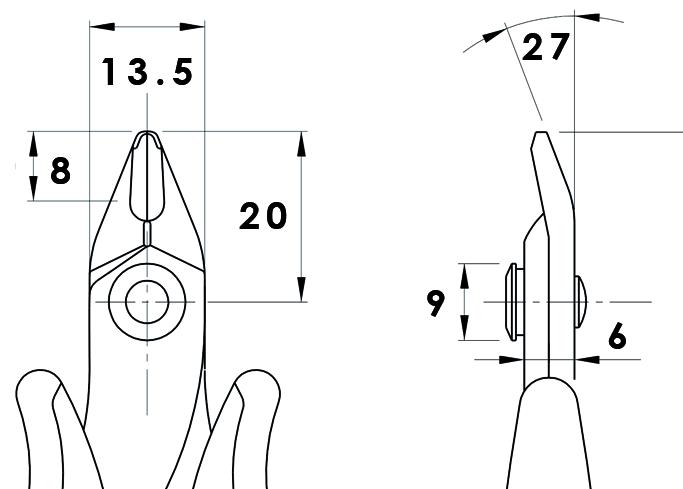

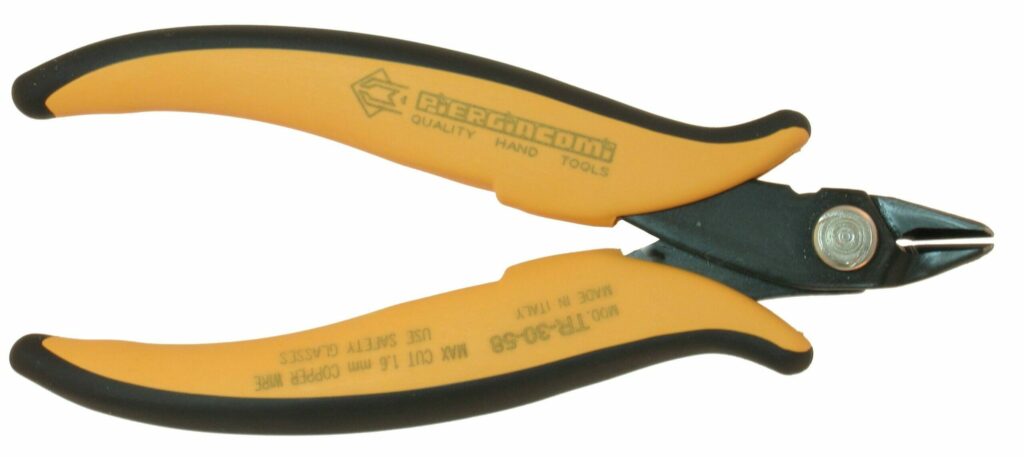

TR 30 58
Medium
8.5
Ø 1.63mm
14 awg
Bevelled-edge cutter. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 30 58 A)
– with ESD-safe handles in grey/black (code TR 30 58 D & TR 30 58 A D)

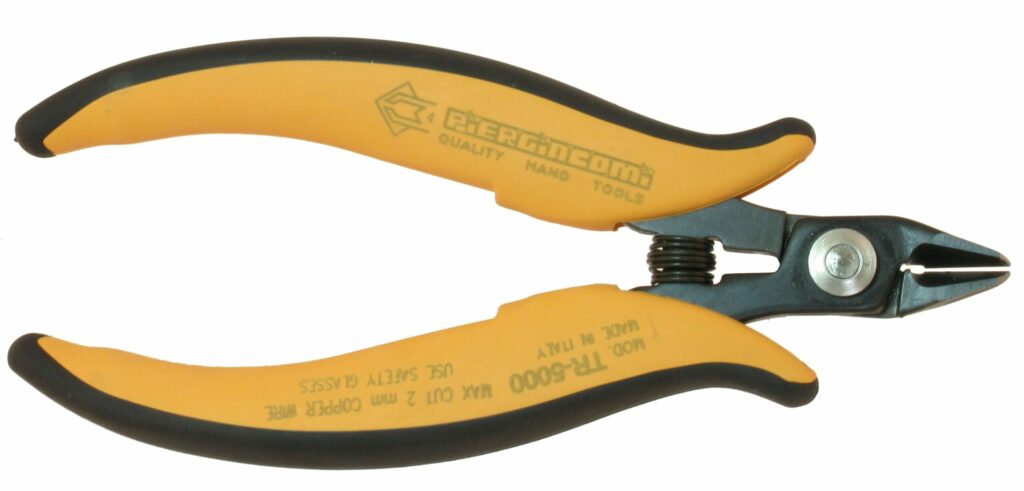

TR 5000
Medium
12
Ø 2.05mm
12 awg
TR 5000
Medium
12
Ø 2.05mm
12 awg
Bevelled-edge cutter. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 5000 A)
– with ESD-safe handles in grey/black (code TR 5000 D & TR 5000 A D)

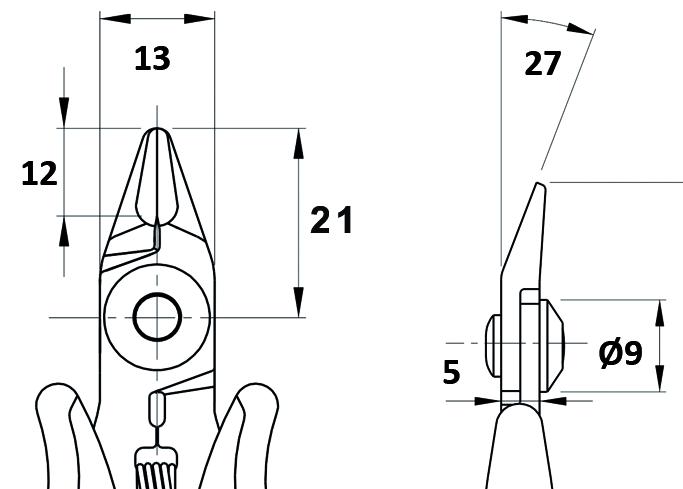

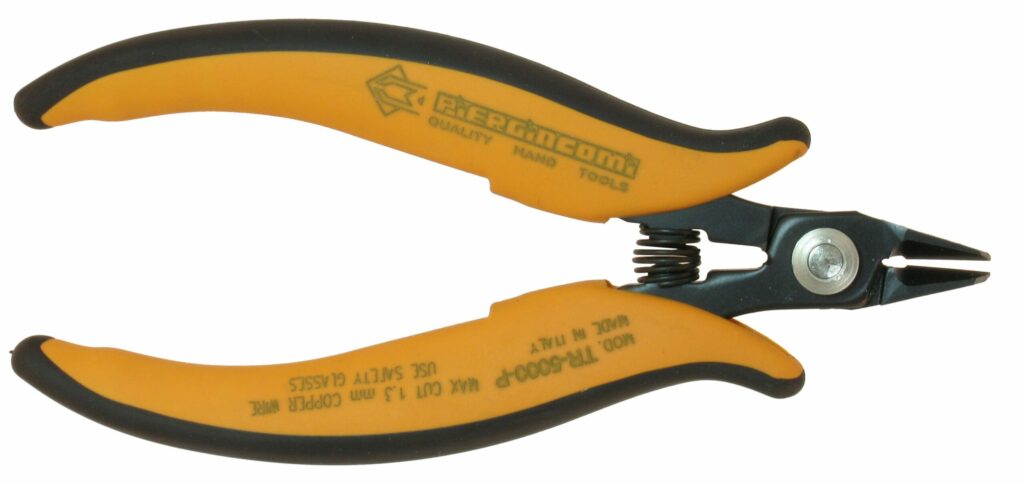

TR 5000 P
Medium
8
Ø 1.30mm
16 awg
TR 5000 P
Medium
8
Ø 1.30mm
16 awg
Tapered head bevelled-edge cutter. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 5000 P A)
– with ESD-safe handles in grey/black (code TR 5000 P D & TR 5000 P A D)

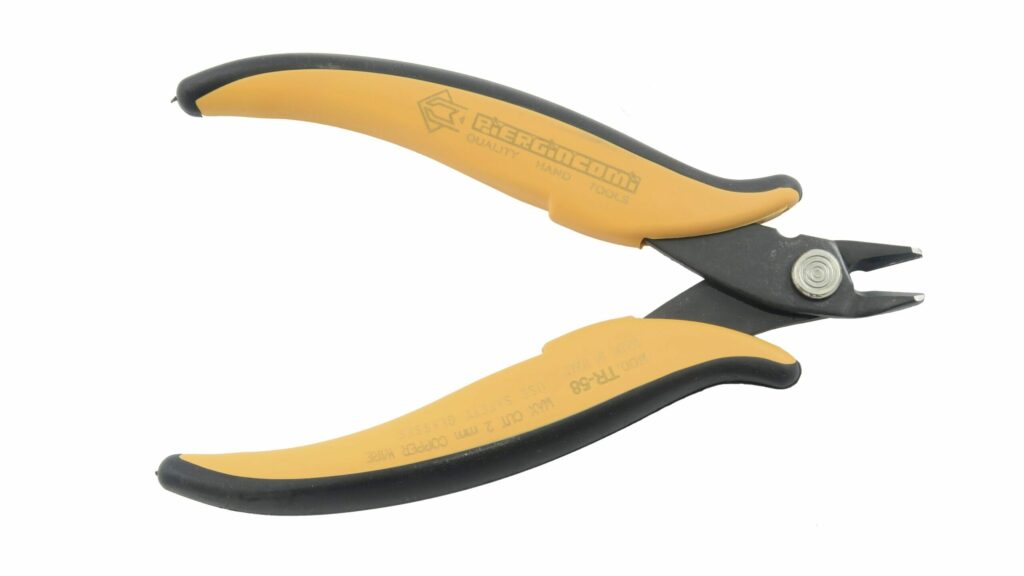

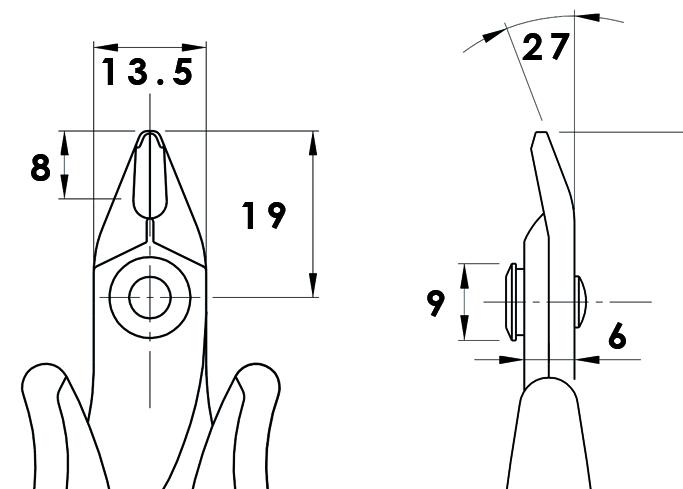

TR 58
Medium
11
Ø 2.05mm
12 awg
TR 58
Medium
11
Ø 2.05mm
12 awg
Bevelled-edge cutter. Shorter and more resistant head. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 58 A)
– with ESD-safe handles in grey/black (code TR 58 D & TR 58 A D)

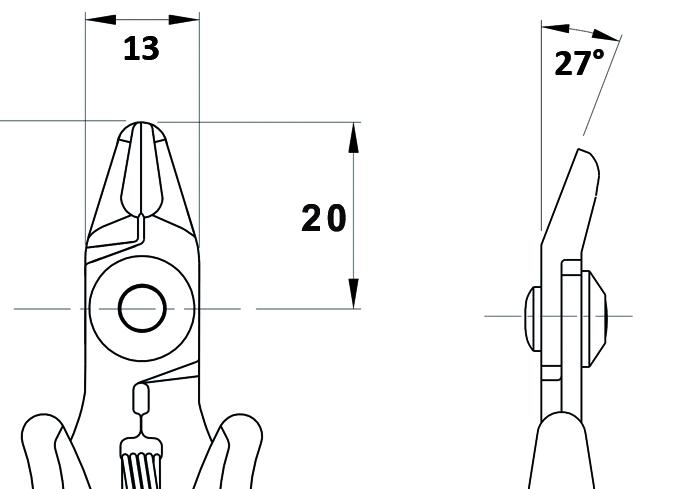

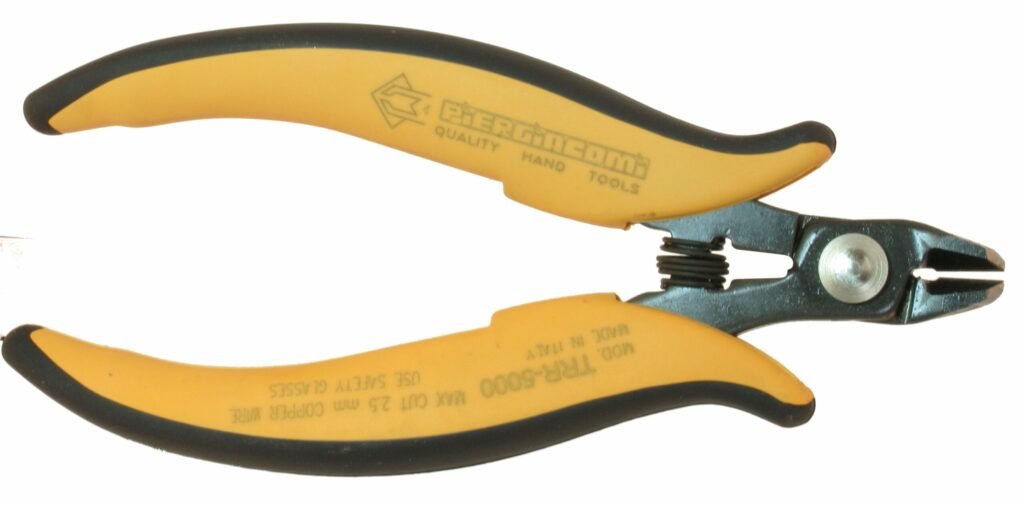

TRR 5000
Medium
14
Ø 2.59mm
10 awg
TRR 5000
Medium
14
Ø 2.59mm
10 awg
Bevelled-edge cutter. Ideal for cutting resistant materials. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TRR 5000 A)
– with ESD-safe handles in grey/black (code TRR 5000 D & TRR 5000 A D)

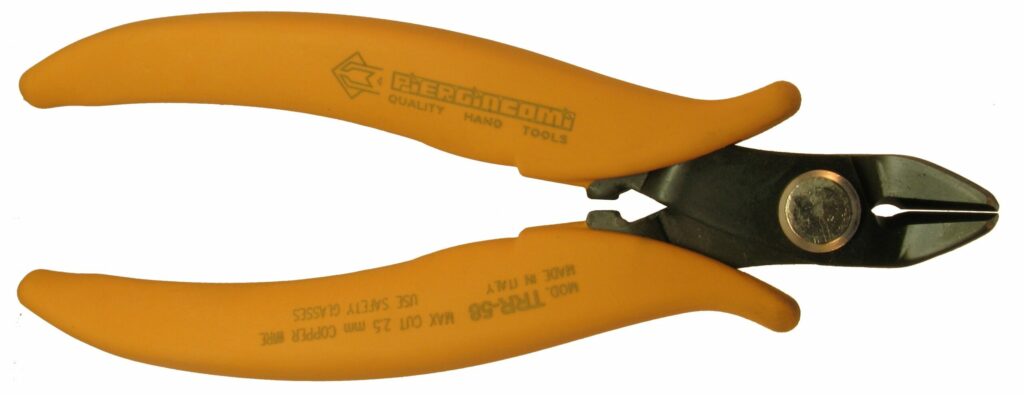

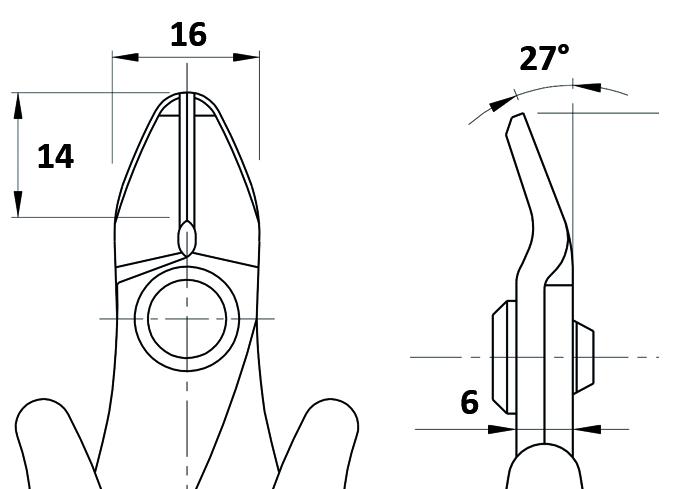

TRR 58
Maxi
15
Ø 2.59mm
10 awg
TRR 58
Maxi
15
Ø 2.59mm
10 awg
Bevelled-edge cutter. Ideal for cutting resistant materials. Steel thickness 3 mm. Tool length 160mm. Grip model B.
Also available in the following versions:
– with safety clip (code TRR 58 A)
– with ESD-safe handles in grey/black (code TRR 58 D & TRR 58 A D)
