Cutters
| ORDER CODE | TIP | ESD ORDER CODE | SAFETY CODE | CLIP TYPE | LENGTH (MM) | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|---|---|---|---|---|---|---|---|
| TR 20 M |  | TR 20 M D | TR 20 M A | AF | 132mm | 3 | Ø 0.81mm | 20 awg |
| TR 20 SM | | TR 20 SM D | TR 20 SM A | AF | 132mm | 3 | Ø 0.81mm | 20 awg |
| TR 25 | | TR 25 D | TR 25 A | AL | 138mm | 5 | Ø 1.30mm | 16 awg |
| TR 25 L | | TR 25 L D | TR 25 L A | AF | 160mm | 3 | Ø 1.30mm | 16 awg |
| TR 25 L 25 | | TR 25 L 25 D | TR 25 L 25 A | AF | 160mm | 3 | Ø 1.30mm | 16 awg |
| TR 25 P | | TR 25 P D | TR 25 P A | AF | 132mm | 3.5 | Ø 1.02mm | 18 awg |
| TR 25 X (inox) | | TR 25 X D | – | – | 138mm | 5 | Ø 1.30mm | 16 awg |
| TR 30 | | TR 30 D | TR 30 A | AL | 138mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 30 58 R | | TR 30 58 R D | TR 30 58 R A | AL | 138mm | 6.5 | Ø 1.63mm | 14 awg |
| TR 5000 PR | | TR 5000 PR D | TR 5000 PR A | AL | 138mm | 5 | Ø 1.30mm | 16 awg |
| TR 5000 R | | TR 5000 R D | TR 5000 R A | AF | 138mm | 8 | Ø 2.00mm | 12 awg |
| TR 58 R | | TR 58 R D | TR 58 R A | AL | 138mm | 9 | Ø 2.05mm | 12 awg |
| TRE 03 NB | | TRE 03 NB D | TRE 03 AB | AL | 138mm | 3 | Ø 1.30mm | 16 awg |
| TRR 58 G | | TRR 58 G D | – | – | 160mm | 15 | Ø 2.59mm | 10 awg |
| CODE | TIP | HEAD | COPPER WIRE | COPPER WIRE (AWG) |
|---|
| ORDER CODE | TIP | HEAD | CUTTING FORCE (KG) | COPPER WIRE (⌀ MM) | COPPER WIRE (AWG) |
|---|
TR 20 M
Micro
3
Ø 0.81mm
20 awg
TR 20 M
Micro
3
Ø 0.81mm
20 awg

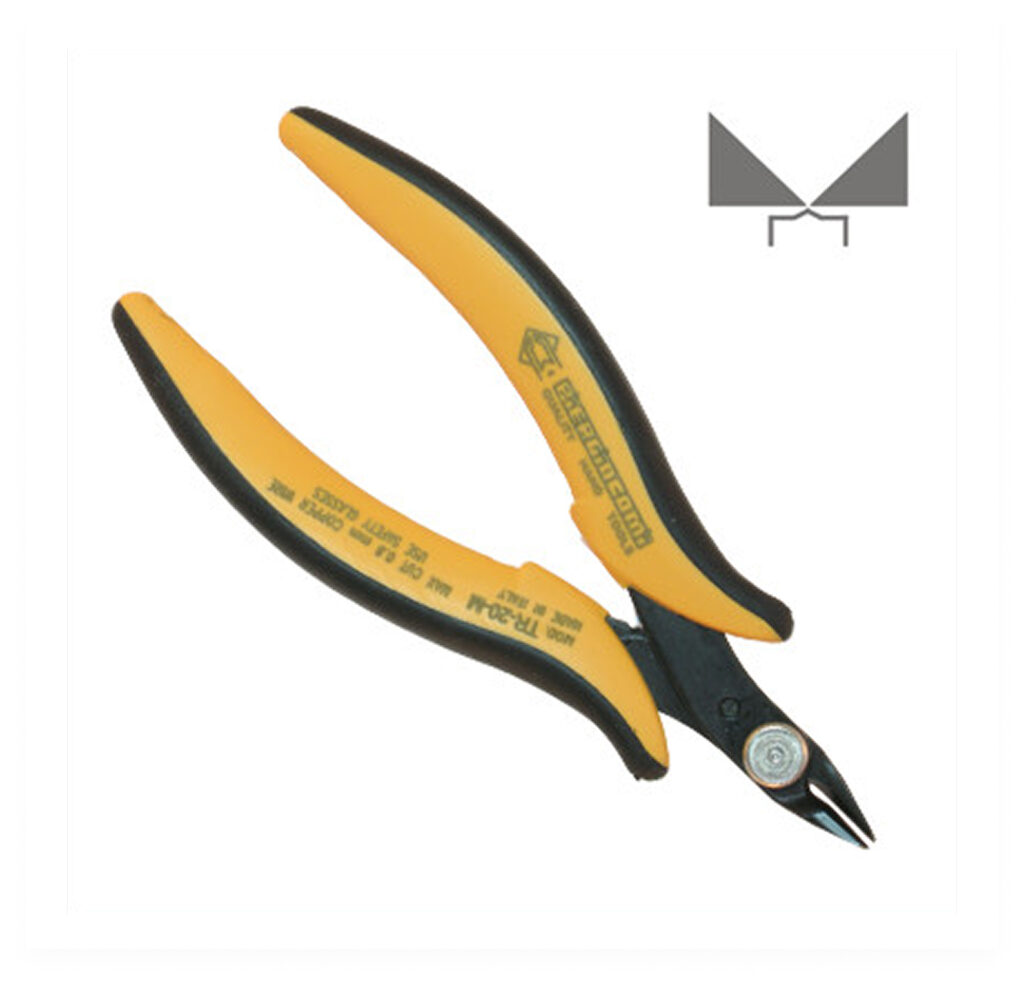

Flush cutter. Ideal for hard-to-reach areas and delicate electronics applications thanks to its compact size and light, ergonomic design. Steel thickness 2mm. Tool length 132mm. Grip model S.
Also available in the following versions:
– with safety clip (code TR 20 M A)
– with ESD-safe handles in grey/black (code TR 20 M D & TR 20 M A D)
TR 20 SM
Micro
3
Ø 0.81mm
20 awg
TR 20 SM
Micro
3
Ø 0.81mm
20 awg

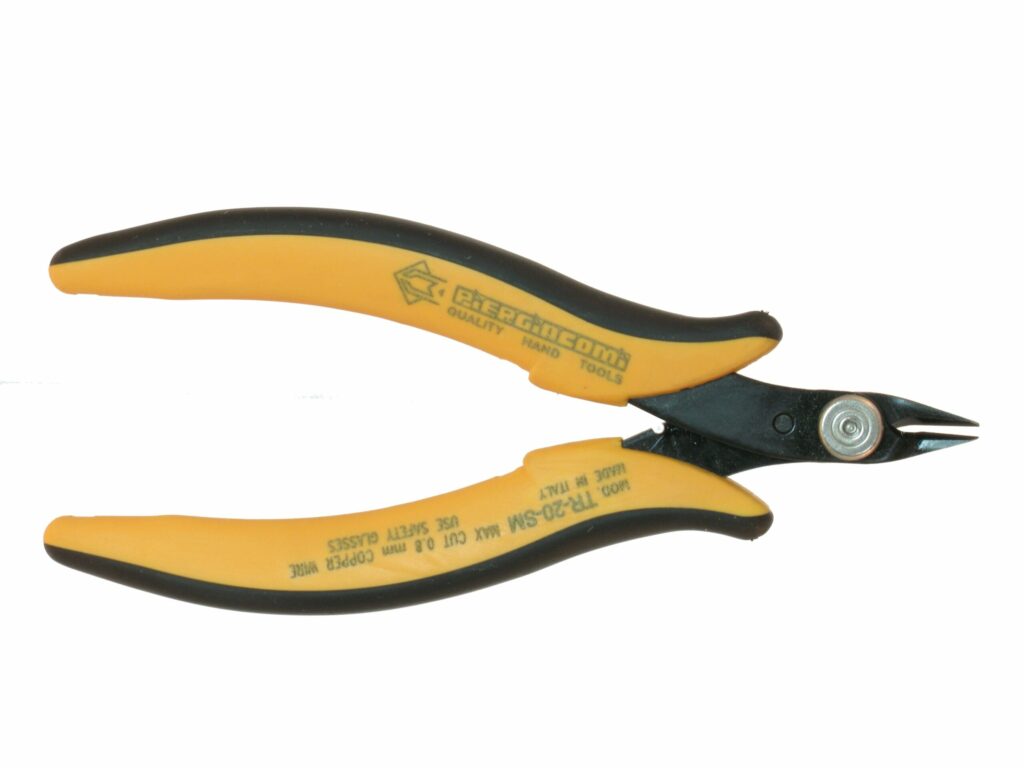

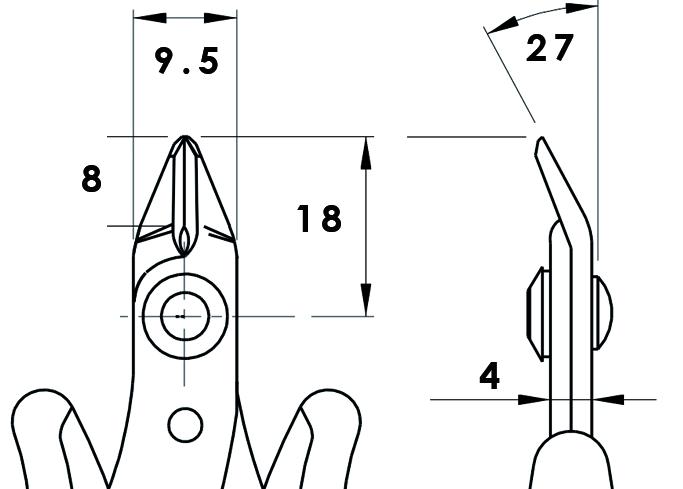

Flush cutter. Ideal for hard-to-reach areas and delicate electronics applications thanks to its compact size and light, ergonomic design. Same characteristics as TR 20 M, but with bevelled edges. Steel thickness 2mm. Tool length 132mm. Grip model S.
Also available in the following versions:
– with safety clip (code TR 20 SM A)
– with ESD-safe handles in grey/black (code TR 20 SM D & TR 20 SM A D)
TR 25
Medium
5
Ø 1.30mm
16 awg
TR 25
Medium
5
Ø 1.30mm
16 awg

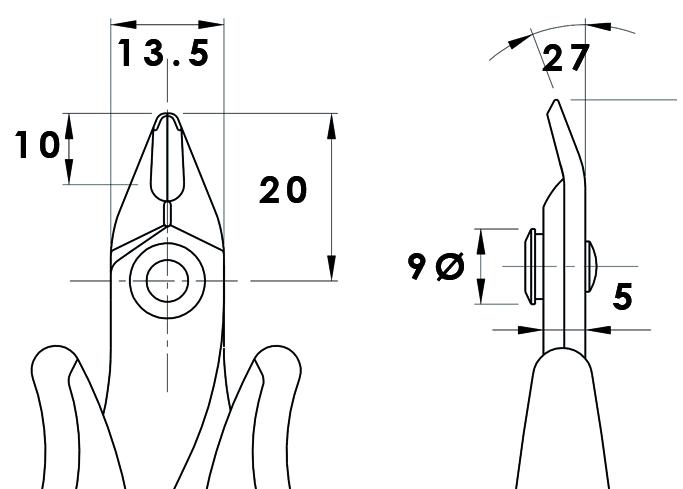

Flush cutter. One of the most popular cutting tools, specially designed for very delicate electronics applications. Steel thickness 2.5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 25 A)
– with ESD-safe handles in grey/black (code TR 25 D & TR 25 A D)
TR 25 L
Medium
3
Ø 1.30mm
16 awg

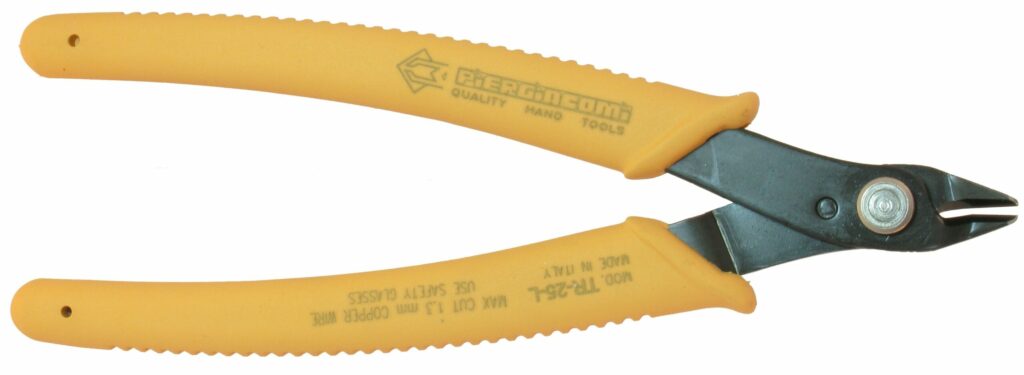

TR 25 L
Medium
3
Ø 1.30mm
16 awg

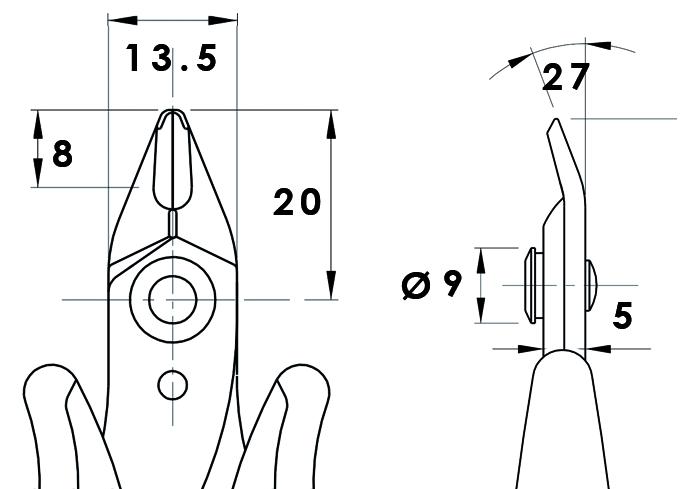

Flush cutter. Same characteristics as TR 25, but specially designed with longer handles for reduced cutting effort. Steel thickness 2.5 mm. Tool length 160 mm. Grip model L.
Also available in the following versions:
– with safety clip (code TR 25 L A)
– with ESD-safe handles in grey/black (code TR 25 L D & TR 25 L A D)
TR 25 L 25
Medium
3
Ø 1.30mm
16 awg
TR 25 L 25
Medium
3
Ø 1.30mm
16 awg

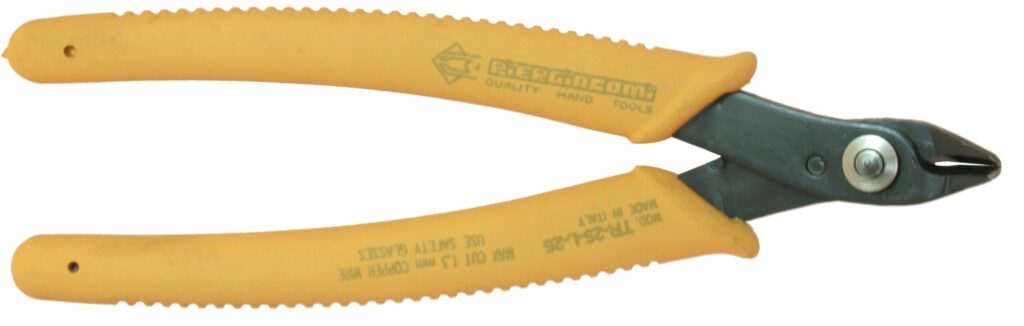

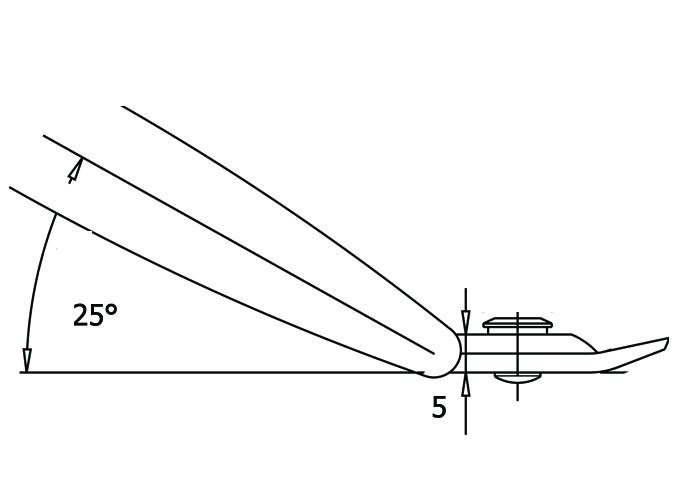

Flush cutter. With cutting edges angled at 25°, it is ideal for hard-to-reach areas; longer handles for reduced cutting effort. Steel thickness 2.5 mm. Tool length 160mm. Grip model L.
Also available in the following versions:
– with safety clip (code TR 25 L 25 A)
– with ESD-safe handles in grey/black (code TR 25 L 25 D & TR 25 L 25 A D)
TR 25 X (inox)
Medium
5
Ø 1.30mm
16 awg
TR 25 X (inox)
Medium
5
Ø 1.30mm
16 awg

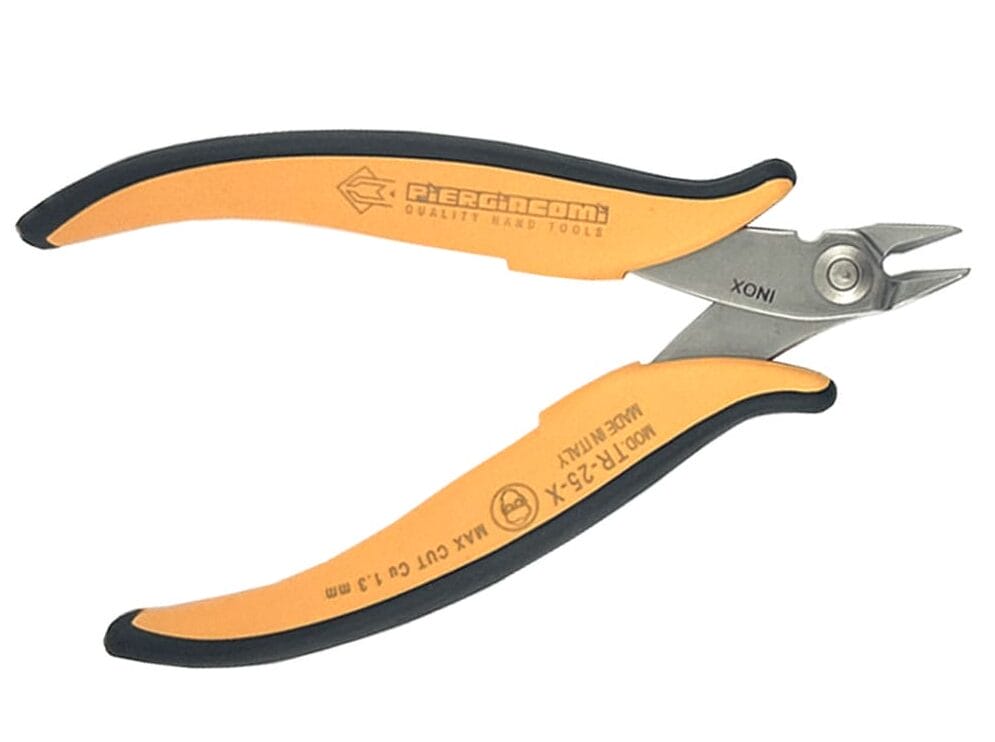

Flush cutter for the cutting of copper wire and other soft materials. Tool length 138 mm. Grip model St.
Made by stainless steel offers an high resistance to corrosion, is wet resistant and has an high durability. Thanks to its smooth surface, stainless steel, tends to retain polluting impurities in smaller amounts than others so that it is suitable to be used for applications in clean-room, electronics applied to medical industry and fish industry as well.
Inox steel thickness 2.5 mm.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 X D)
TR 30
Medium
5.5
Ø 1.30mm
16 awg

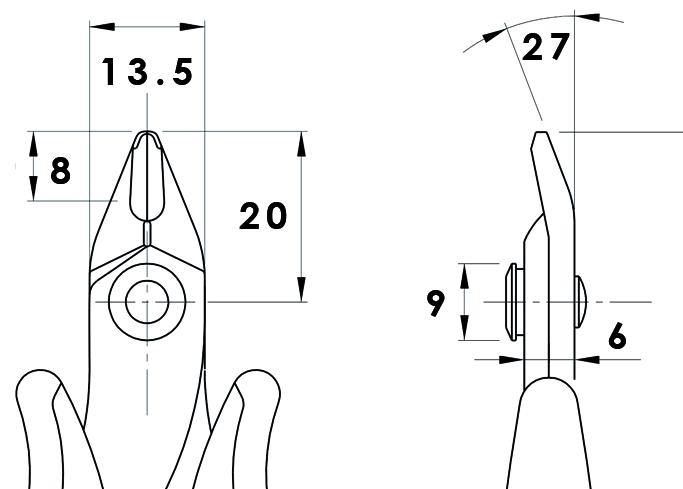

TR 30
Medium
5.5
Ø 1.30mm
16 awg

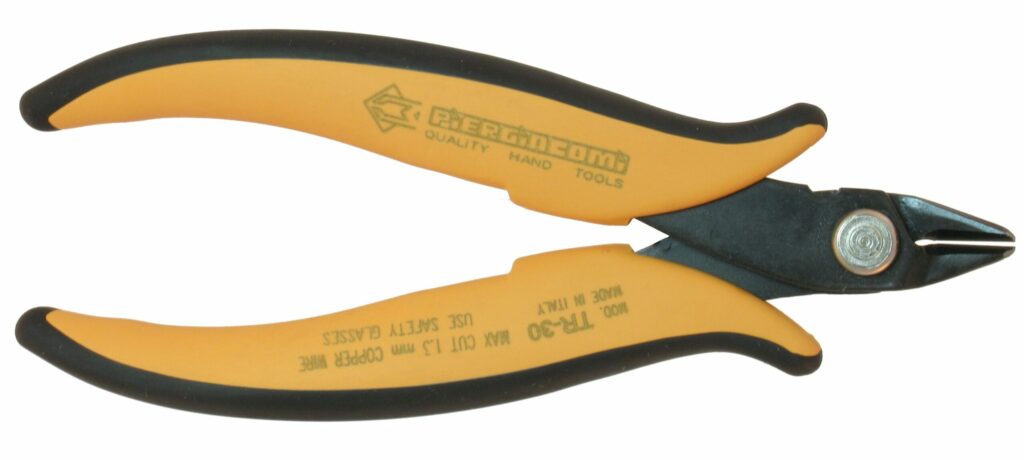

Flush cutter for the cutting of copper wire and other soft materials. Ergonomic bi-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm. Tool lenght 138mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 30 A)
– with ESD-safe handles in grey/black (code TR 30 D & TR 30 A D)
TR 30 58 R
Medium
6.5
Ø 1.63mm
14 awg
TR 30 58 R
Medium
6.5
Ø 1.63mm
14 awg

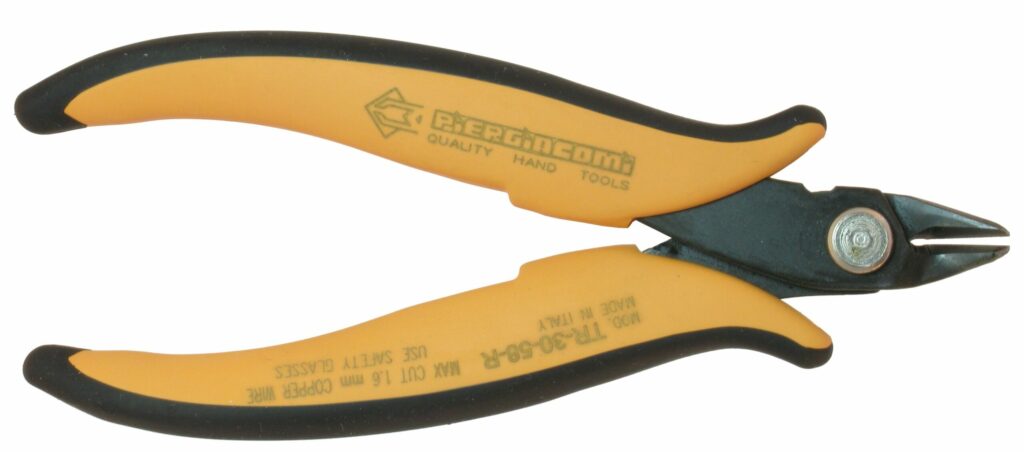

Flush cutter. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 30 58 R A)
– with ESD-safe handles in grey/black (code TR 30 58 R D & TR 30 58 R A D)
TR 5000 PR
Medium
5
Ø 1.30mm
16 awg

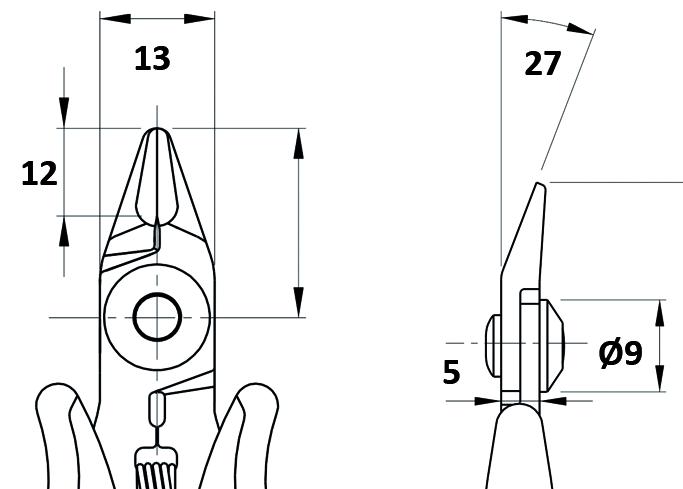

TR 5000 PR
Medium
5
Ø 1.30mm
16 awg

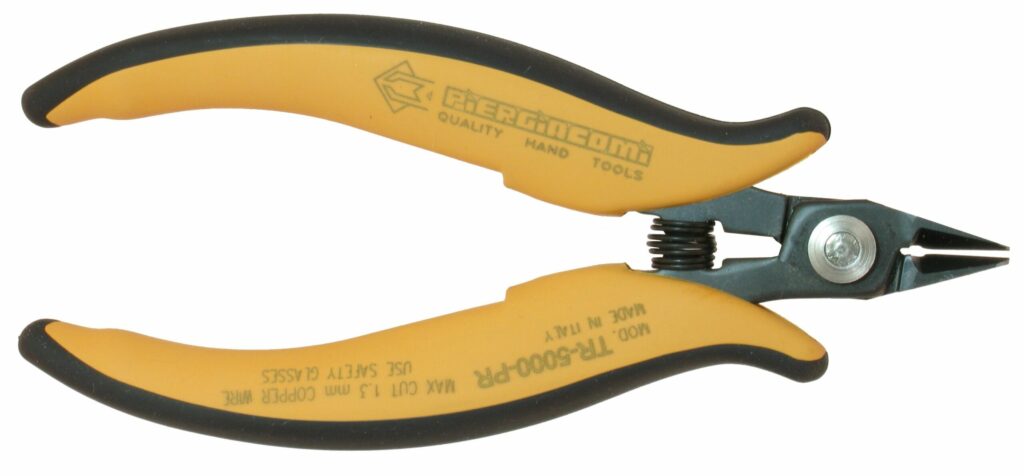

Strong flush cutter with very pointed blades for the cutting of copper wire and other soft materials. Ergonomic bi-material handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 5mm. Tool lenght 138mm.
Also available in the following versions:
– with safety clip (code TR 5000 PR A)
– with ESD-safe handles in grey/black (code TR 5000 PR D & TR 5000 PR A D)

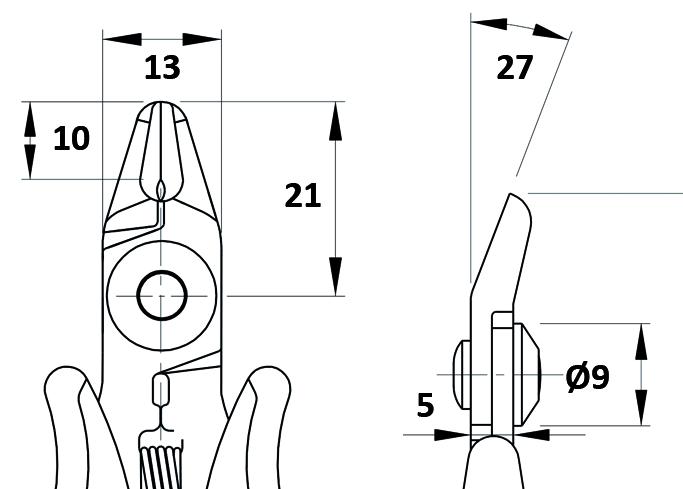

TR 5000 R
Medium
8
Ø 2.00mm
16 awg
TR 58 R
Medium
9
Ø 2.05mm
12 awg

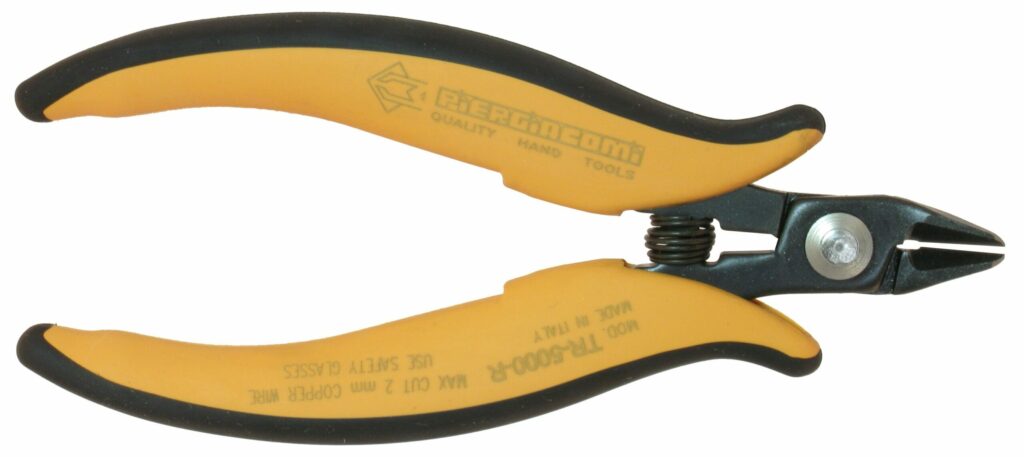

Strong flush cutter. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 5000 R A)
– with ESD-safe handles in grey/black (code TR 5000 R D & TR 5000 R A D)

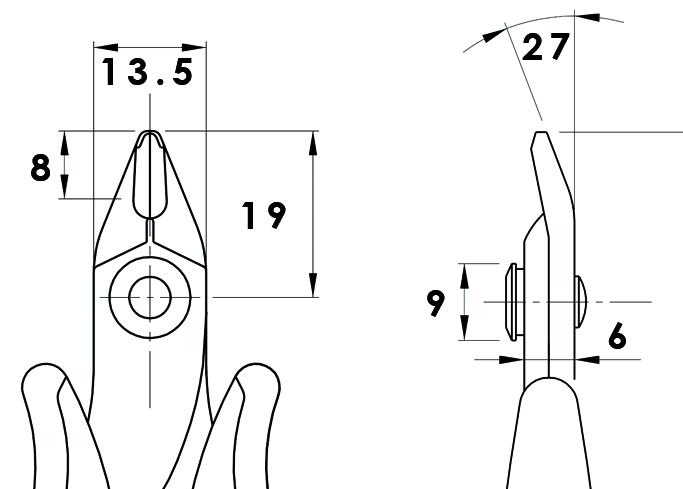

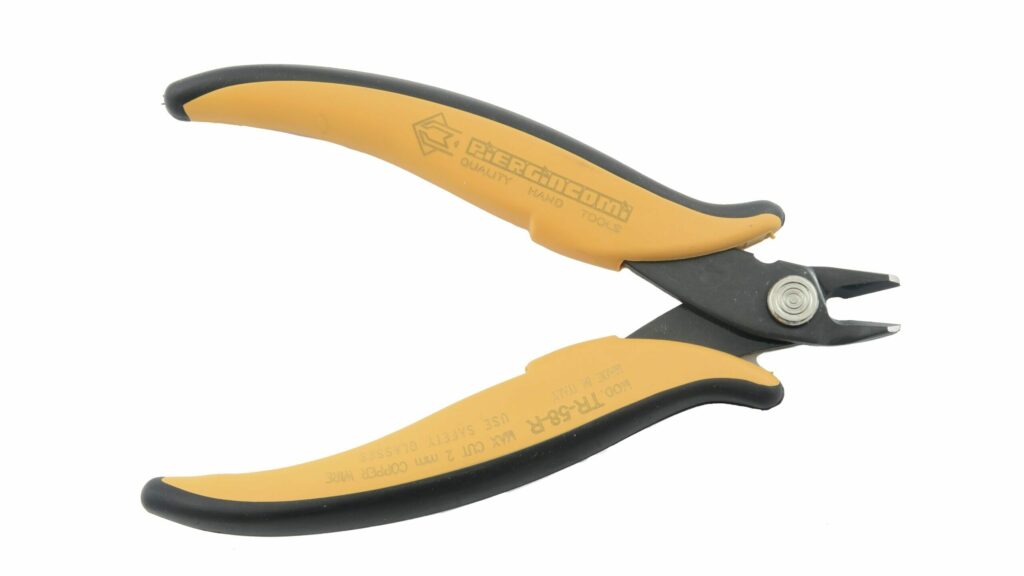

TR 58 R
Medium
9
Ø 2.05mm
12 awg
TRE 03 NB
Medium
3
Ø 1.30
16 awg
Flush cutter. Shorter and more resistant head. Steel thickness 3mm. Tool length 138mm. Grip model St.
Also available in the following versions:
– with safety clip (code TR 58 R A)
– with ESD-safe handles in grey/black (code TR 58 R D & TR 58 R A D)
TRE 03 NB
Medium
3
Ø 1.30mm
16 awg

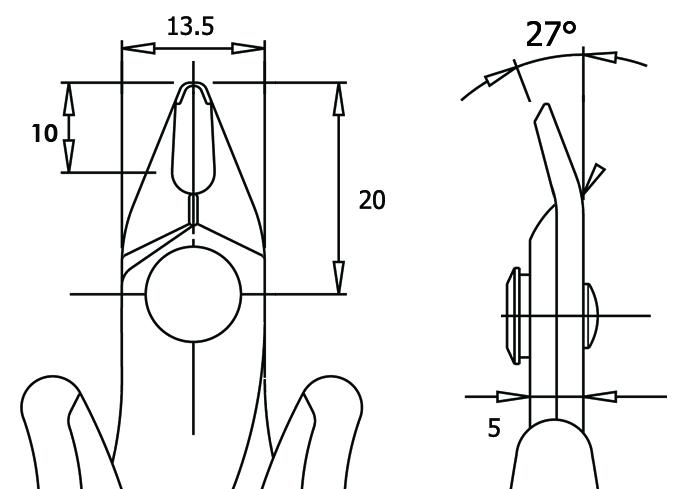

TRE 03 NB
Medium
3
Ø 1.30
16 awg
Flush cutter. Purposely designed as the simplified version of TR 25, but with the same characteristics. Steel thickness 2.5mm. Tool length 138mm. Grip model S.
Also available in the following versions:
– with safety clip (code TRE 03 AB)
– with ESD-safe handles in grey/black (code TRE 03 NB D & TRE 03 AB D)
TRR 58 G
Maxi
15
Ø 2.59mm
10 awg

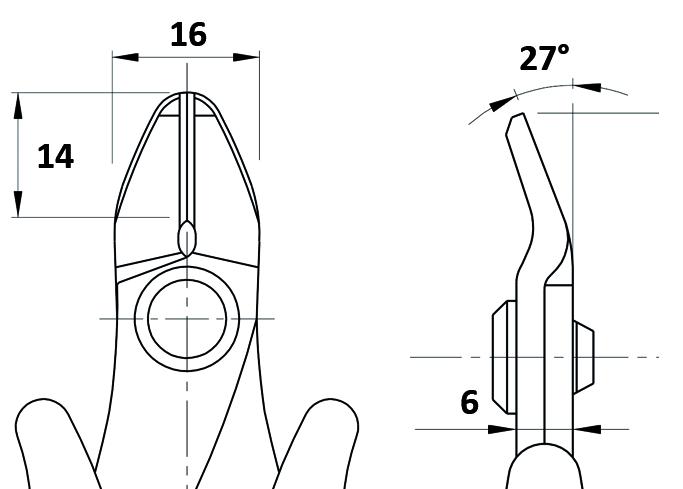

TRR 58 G
Maxi
15
Ø 2.59
10 awg

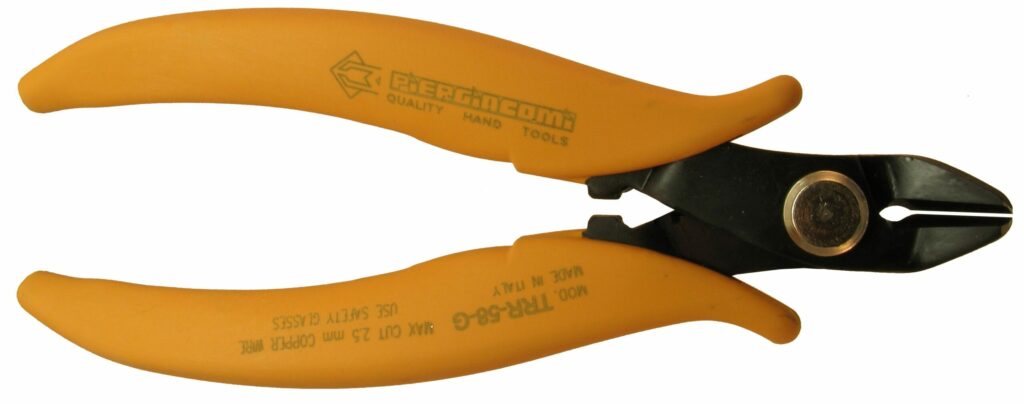

Very strong flush cutter. Suitable not only for electronics applications but also for jewellery making and rubber seal cutting. Steel thickness 3mm. Tool lenght 160mm. Grip model B.
Also available in the following version:
– with ESD-safe handles in grey/black (code TRR 58 G D)
