Cutters
| ORDER CODE | TIP | ESD ORDER CODE | Ø MM | AWG | WEIGHT (G) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|---|
| PCC1 |  |
- | - | - | 50g | 115mm | Coaxial cable stripper |
| PRF 0 | |
- | 0.8÷2.6 | 20÷10 | 50g | 115mm | Wire stripper |
| PS 4÷10 | |
- | 4÷10/0.8÷2.6 | 6÷000/20÷10 | 50g | 115mm | Wire stripper |
| PST 0.5 |  |
- | 0.5 | 24 | 33g | 125mm | Stripping tweezers |
| PST 0.6 | |
- | 0.6 | 22 | 33g | 125mm | Stripping tweezers |
| PST 0.8 | |
- | 0.8 | 20 | 33g | 125mm | Stripping tweezers |
| PST 1.0 | |
- | 1.0 | 18 | 33g | 125mm | Stripping tweezers |
| PST 1.6 | |
- | 1.6 | 14 | 33g | 125mm | Stripping tweezers |
| SF 30 |  |
SF 30 D | 0.20÷0.64 | 32-22 | 78g | 141mm | Adjustable wire stripper |
| SF 40/1 | |
- | 0.25÷1.0 | 30-18 | 22g | 50×55 | Flat wire stripper |
| SF 40/2 | |
- | 1.30÷1.8 | 16-13 | 22g | 50×55 | Flat wire stripper |
| SFF 30 | |
SFF 30 D | 0.32÷0.51 | 28-24 | 76g | 141mm | Fixed wire stripper |
| ORDER CODE | TIP | (Ø MM) | AWG | WEIGHT (G) |
|---|
PCC1
–
–
50g
PCC1
–
–
50g

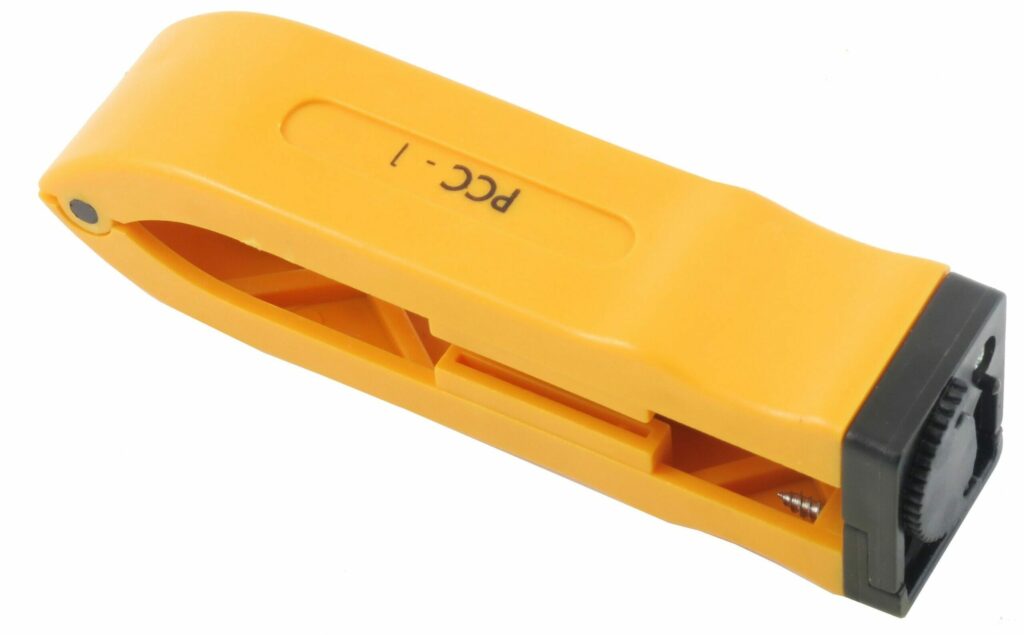

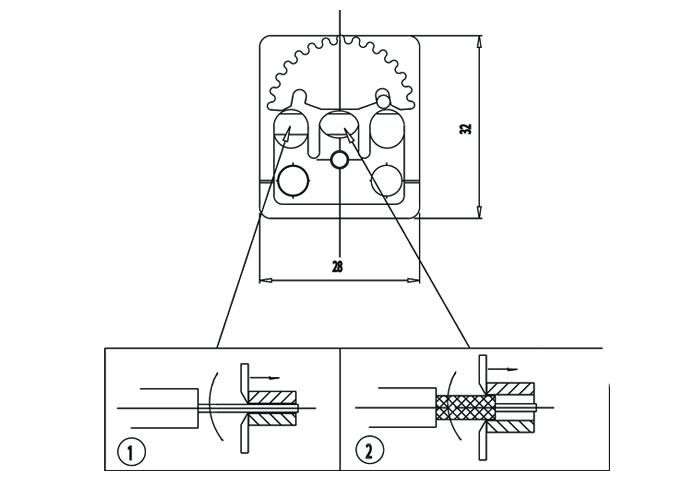

Coaxial cable stripper with double function, as shown in the figure:
1) insert the cable in the correct hole at the side, press and turn the tool 90° at the same time and pull.
2) insert the cable in the central hole, press and turn the tool 90° at the same time and pull.
AVAILABLE WHILE STOCKS LAST.
PRF 0
0.8÷2.6
20÷10
50g
PRF 0
0.8÷2.6
20÷10
50g

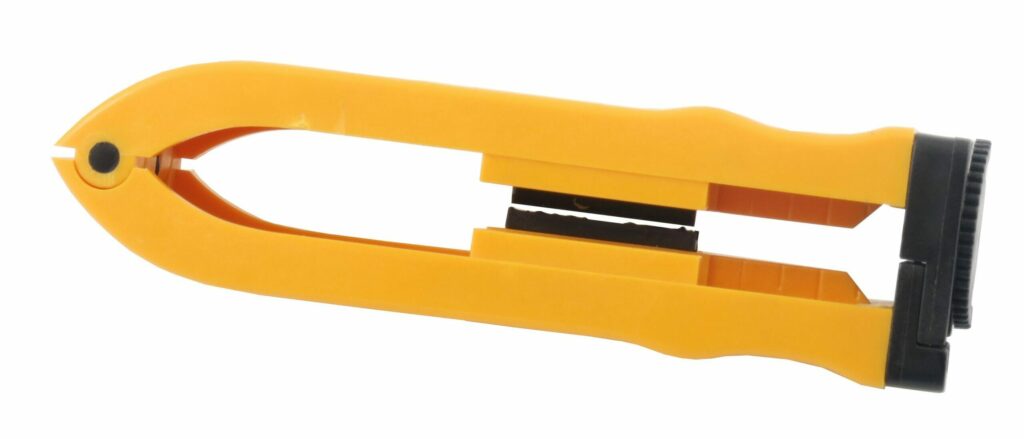

Wire stripper.
How to use it: Insert the wire between the 2 jaws up to the point where one wishes to strip and then pull back the tool. If needed, repeat this operation several times while turning the wire.
AVAILABLE WHILE STOCKS LAST.
PS 4÷10
4÷10/0.8÷2.6
6÷000/20÷10
50g
PS 4÷10
4÷10/0.8÷2.6
6÷000/20÷10
50g

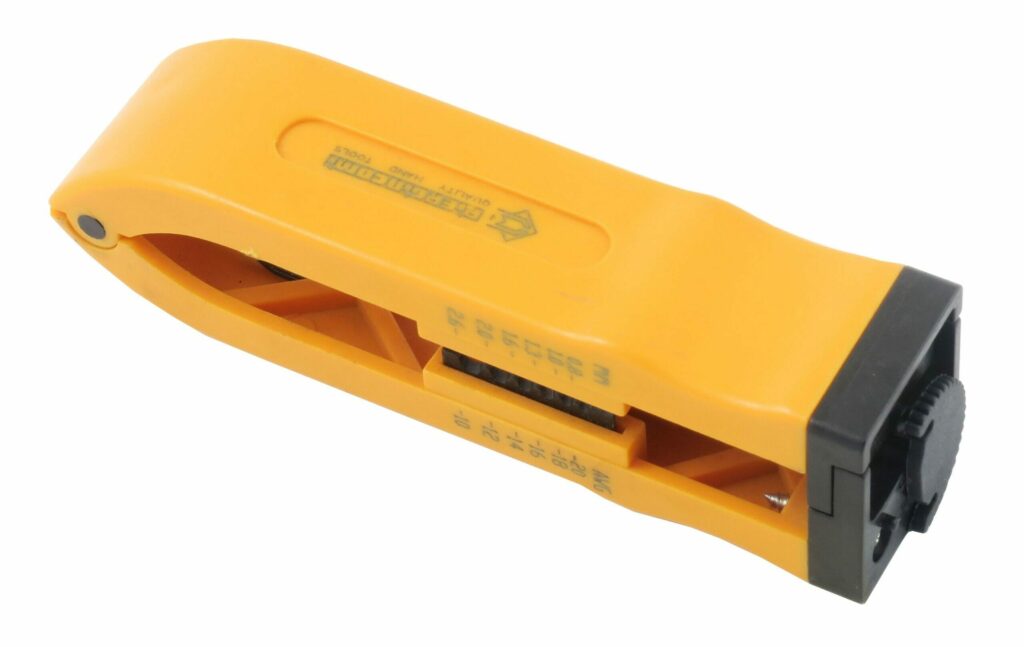

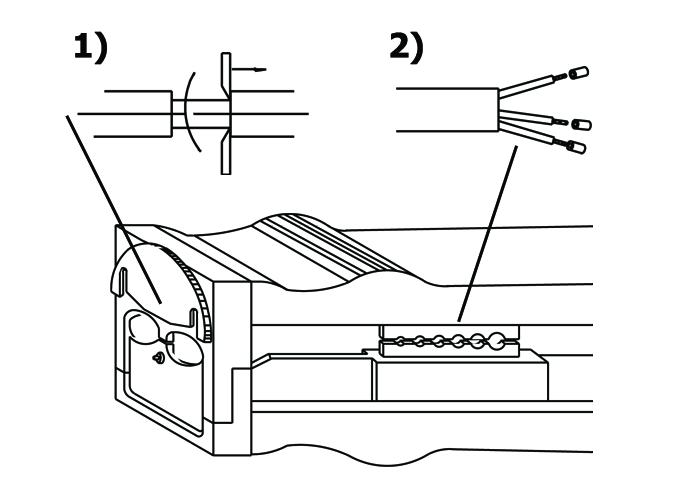

Wire stripper with double function, as shown in the figure:
1) Wire stripper for the outer sheath (from Ø 4 to 10mm – 6-000 awg): insert the cable into one of the frontal holes, press and turn the tool 90° and then pull back.
2) Wire stripper for the internal wires (from Ø 0.8 to 2.6mm – 20-10 awg): insert one of the internal wires into one of the appropriate side holes, press and pull back.
AVAILABLE WHILE STOCKS LAST.
PST 0.5
0.5
24
33g
PST 0.5
0.5
24
33g
Stripping tweezers for removing insulating coatings from wires Ø 0.5mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.
PST 0.6
0.6
22
33g
Stripping tweezers for removing insulating coatings from wires Ø 0.6mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.
PST 0.8
0.8
20
33g
PST 0.8
0.8
20
33g

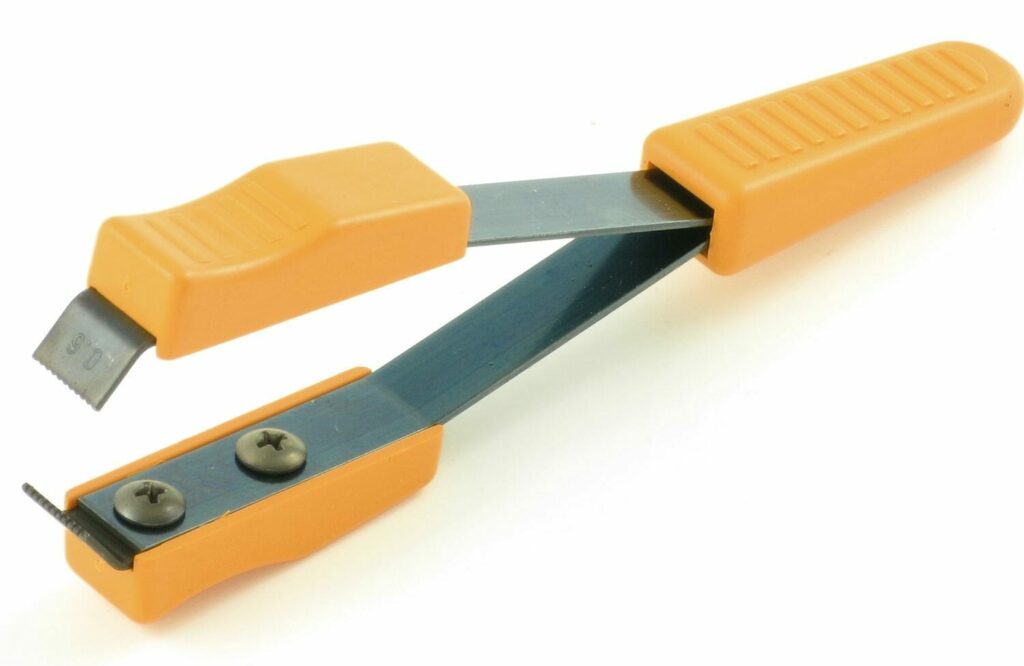

Stripping tweezers for removing insulating coatings from wires Ø 0.8mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.
PST 1.0
1.0
18
33g
PST 1.0
1.0
18
33g
Stripping tweezers for removing insulating coatings from wires Ø 1.0mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.
PST 1.6
1.6
14
33g
PST 1.6
1.6
14
33g
Stripping tweezers for removing insulating coatings from wires Ø 1.6mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.
SF 30
0.20÷0.64
32-22
78g
SF 30
0.20÷0.64
32-22
78g

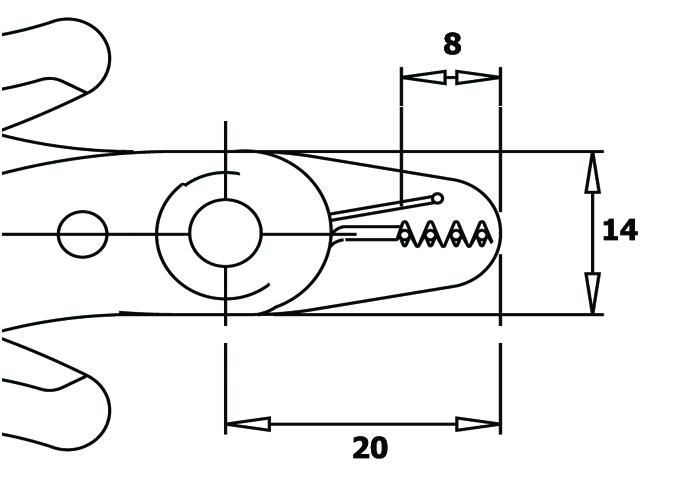

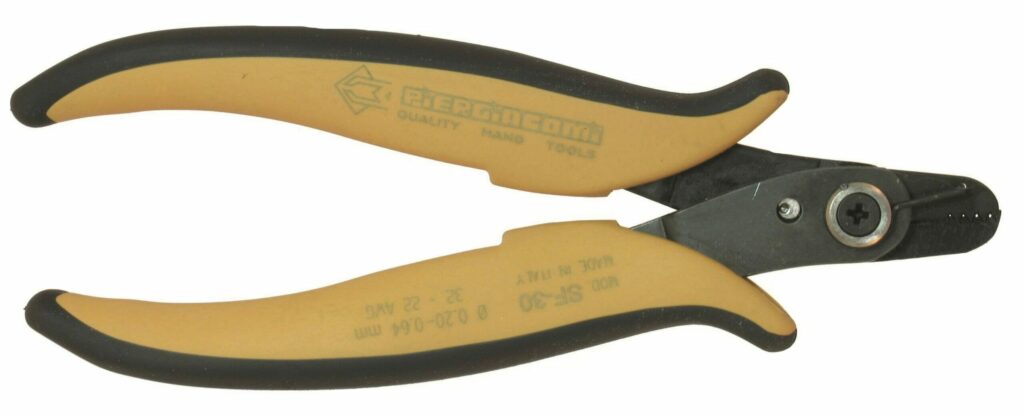

Wire stripper for diameters 0.20÷0.64mm (32-22 AWG) fitted with an elastic part that enables the stripping of the insulating cable sleeve without damaging the conductor wires. Steel thickness 2.5mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code SF 30 D)
SF 40/1
0.25÷1.0
30-18
22g
SF 40/1
0.25÷1.0
30-18
22g

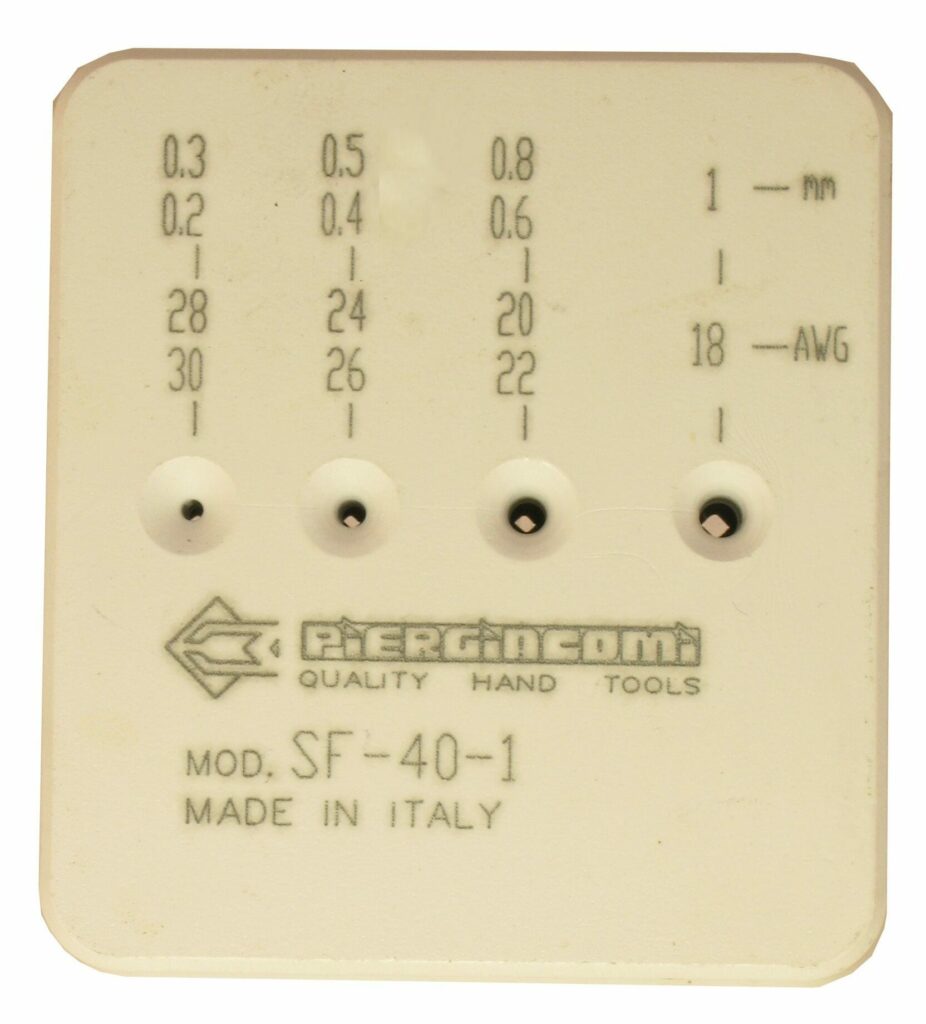

SF-40-1 is a reliable tool, easy to handle and very fast to use. Flat and lightweight, it can be easily carried in one’s pocket.
Wire stripper for diameters from 0.25mm to 1mm (30-18 awg).
Recommended for electronics applications.
SF 40/2
1.30÷1.8
16-13
22g
SF 40/2
1.30÷1.8
16-13
22g

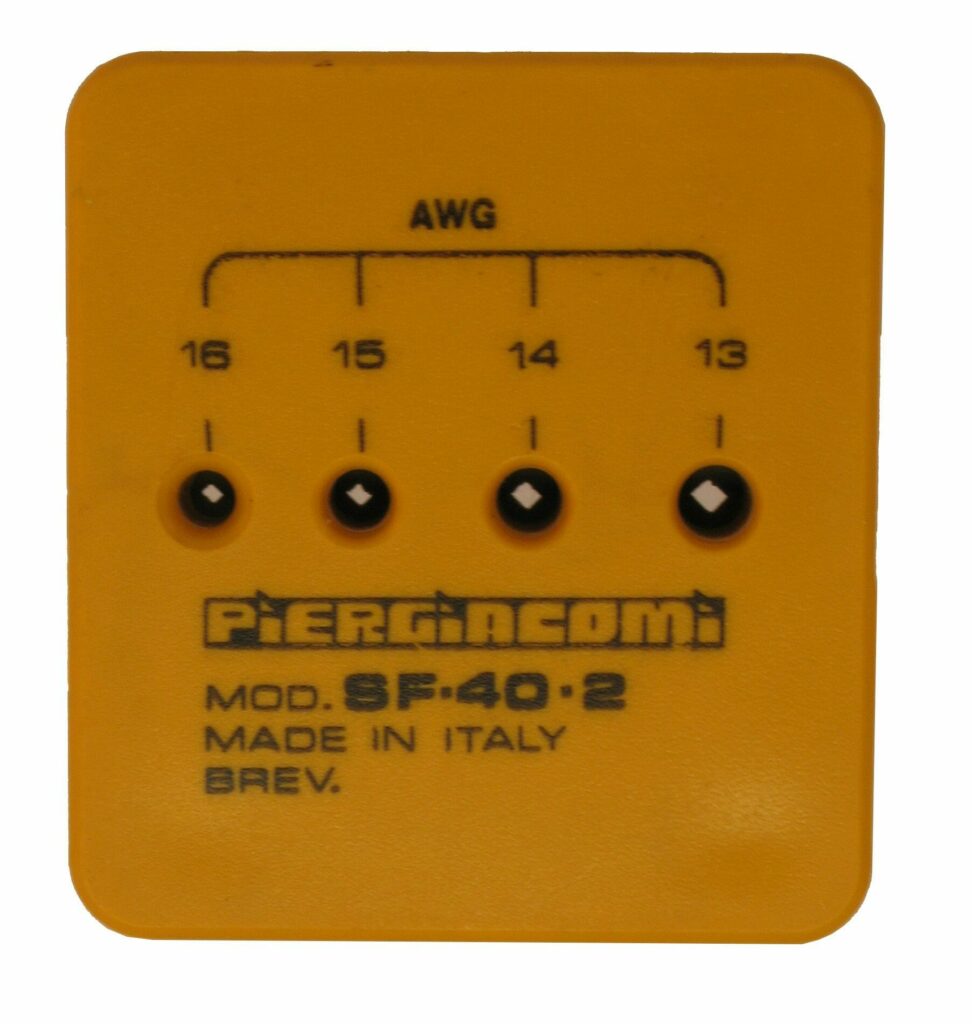

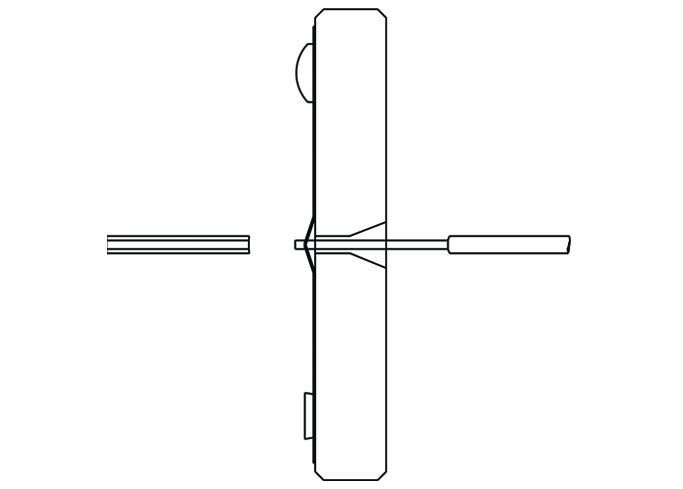

SF-40-2 is a reliable tool, easy to handle and very fast to use. Flat and lightweight, it can be easily carried in one’s pocket.
Wire stripper for diameters from 1.3mm to 1.8mm (16-13 awg).
Recommended for electronics applications.
SFF 30
0.32÷0.51
28-24
76g
SFF 30
0.32÷0.51
28-24
76g

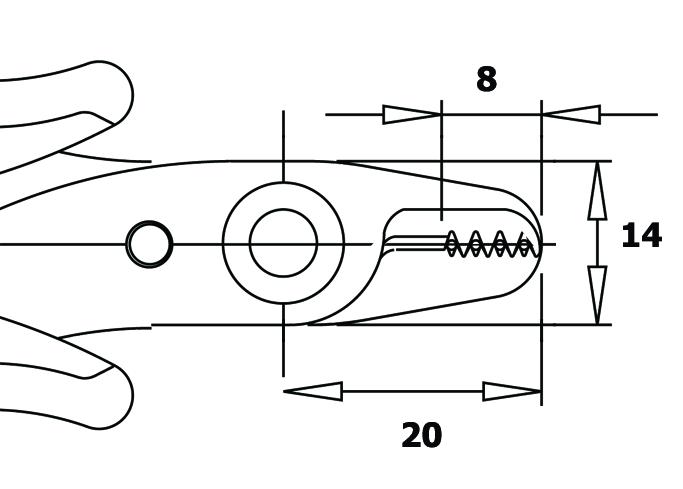

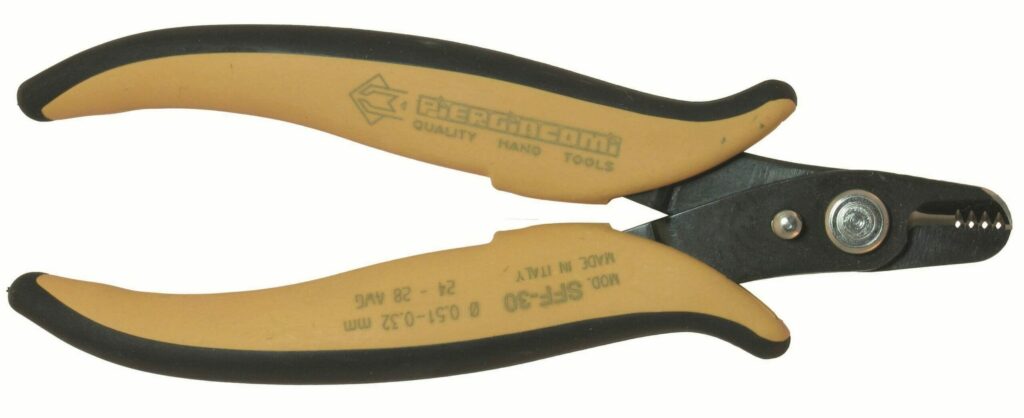

Fixed wire stripper for diameters 0.32÷0.51mm (28-24 AWG). Steel thickness 2.5mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code SFF 30 D)
