Cutters
| ORDER CODE | TIP | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | NOTES |
|---|---|---|---|---|---|
| P-TPP |  |
Body for lever action for TPP. | |||
| TPP SET with case | |
Case with pneumatic cutting tool included. | |||
| TPP TR 6000 | |
90 | Ø 1.60mm | 14 awg | Pneumatic tool; bevelled cutting edge |
| TPP TR 6000 (10-13-15) | |
90 | Ø 1.60mm | 14 awg | Pneumatic standoff cutter |
| TPP TR 6000 C | |
110 | Ø 1.80mm | 13 awg | Strong pneumatic tool; bevelled cutting edge |
| TPP TR 6000 PR | |
90 | Ø 1.30mm | 16 awg | Pneumatic tool; flush cutting edge, tapered head |
| TPP TR 6000 R | |
90 | Ø 1.60mm | 14 awg | Pneumatic tool; flush cutting edge |
| TPP TR 6000 V | |
80 | Ø 1.30mm | 16 awg | Pneumatic tool; 60° oblique flush end cutting nippers |
| TPP TR A | |
Clear protective cover | |||
| TPP TR V A | |
Clear protective cover |
| ORDER CODE | TIP | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|

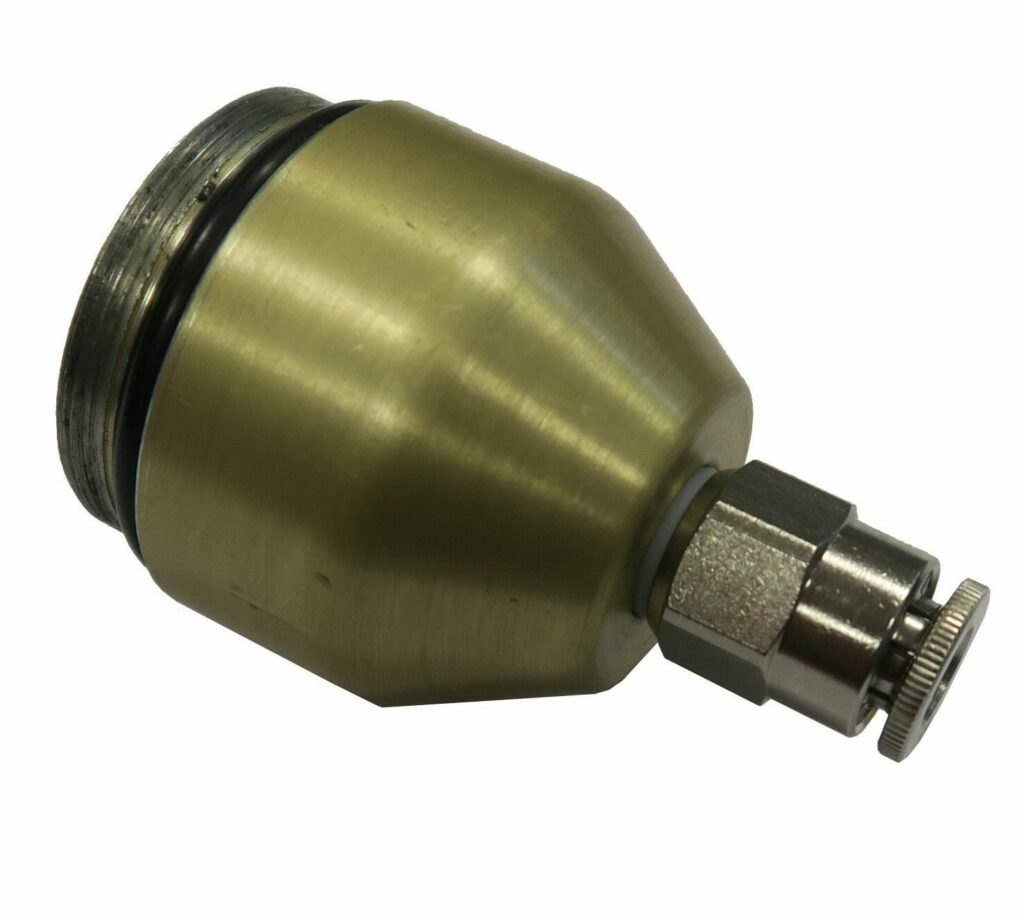

P-TPP
P-TPP
Kit for TPP pedal activation (pedal included).

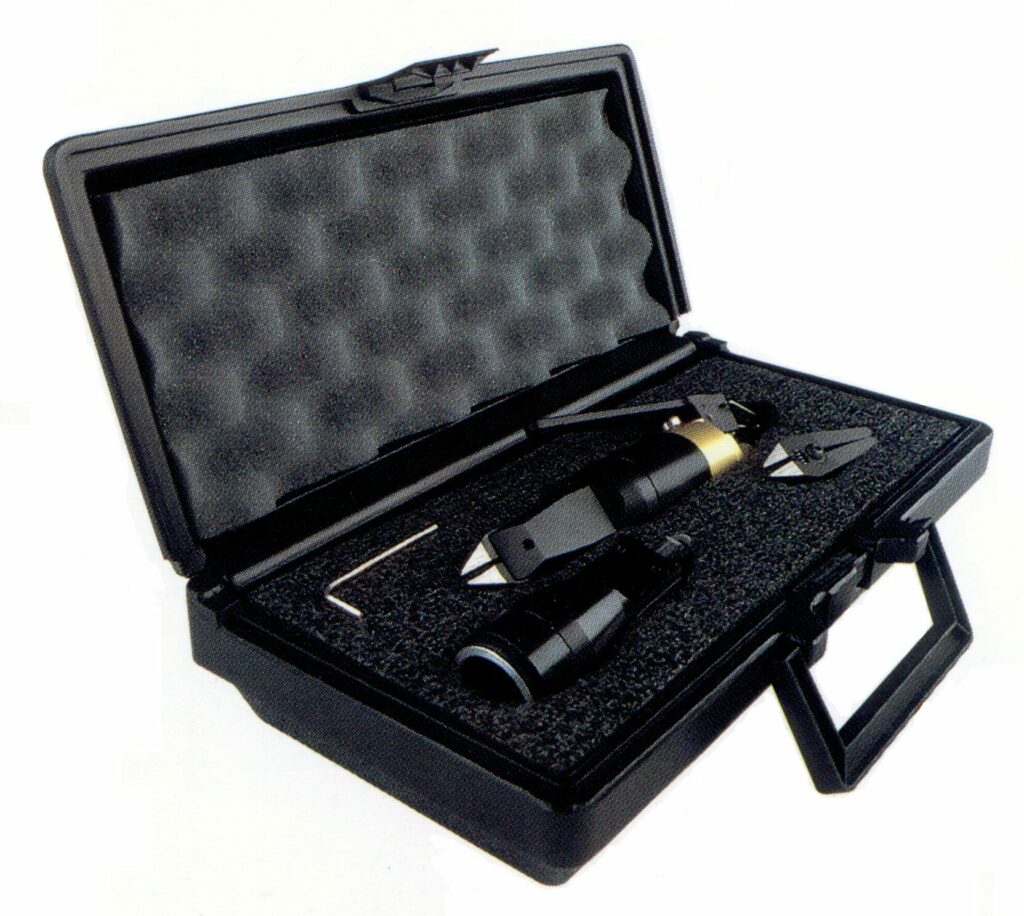

TPP SET with case
TPP SET with case
Case with pneumatic cutting tool included.
It contains:
– TPP-TR-6000
– TP-6000 cutting head (cut & bend): cutting force 50Kg, copper wire Ø 1.02mm (18 awg)
– CL-6000-R spare blades (flush cut): cutting force 90Kg, copper wire Ø 1.60mm (14 awg)
– Hex key (2mm)
Case dimensions: 260(d)x320(w)x80(h)mm
Weight: 730g
Activated by lever.

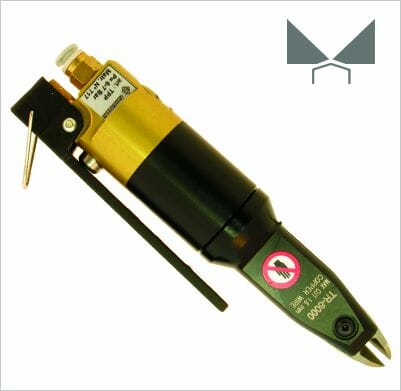

TPP TR 6000
90
Ø 1.60mm
14 awg
TPP TR 6000
90
Ø 1.60mm
14 awg
Pneumatic bevelled-edge cutting tool.
Lever activation.
Several different spare blades available on request.
Weight: 300g
Dimensions: 165x35mm

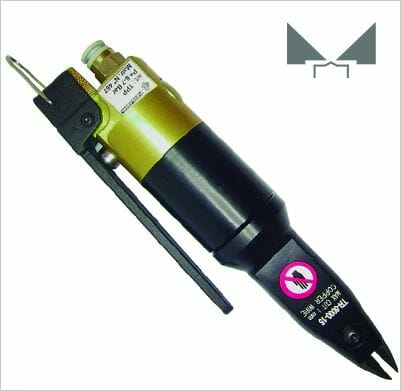

TPP TR 6000 (10-13-15)
90
Ø 1.60mm
14 awg
TPP TR 6000 (10-13-15)
90
Ø 1.60mm
14 awg

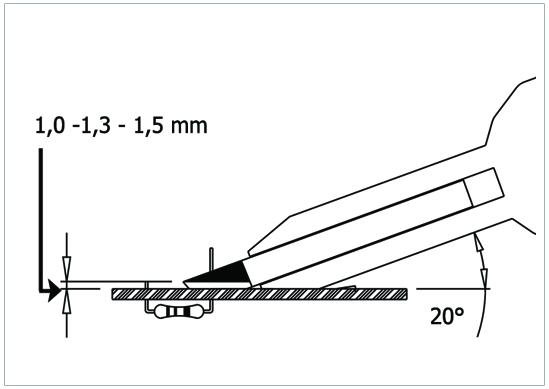

Pneumatic standoff cutter.
Lever activation.
Several different spare blades available on request:
– TPP TR 6000/10: 1.0 mm height from the surface.
– TPP TR 6000/13: 1.3 mm height from the surface.
– TPP TR 6000/15: 1.5 mm height from the surface.
Weight: 300g
Dimensions: 165x35mm
TPP TR 6000 C
110
Ø 1.80mm
13 awg
TPP TR 6000 C
110
Ø 1.80mm
13 awg
Pneumatic bevelled-edge cutting tool. Short and strong blades.
Lever activation.
Several different spare blades available on request.
Weight: 300g
Dimensions: 165x35mm

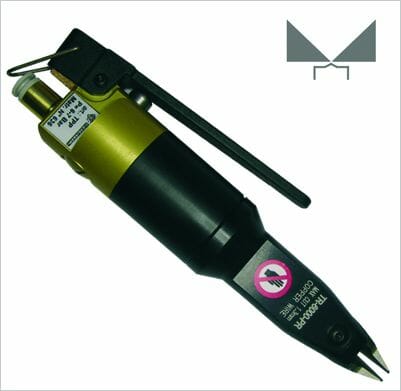

TPP TR 6000 PR
90
Ø 1.30mm
16 awg
TPP TR 6000 PR
90
Ø 1.30mm
16 awg

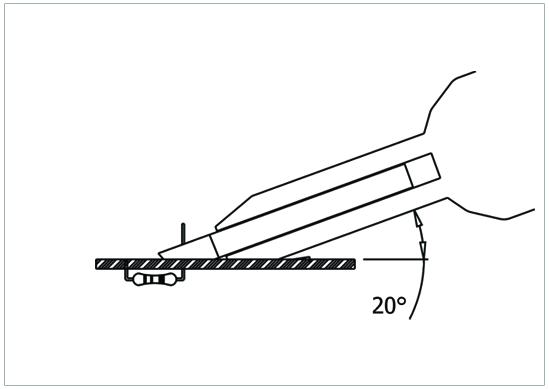

Pneumatic tapered head flush cutting tool.
Lever activation.
Several different spare blades available on request.
Weight: 300g
Dimensions: 165x35mm

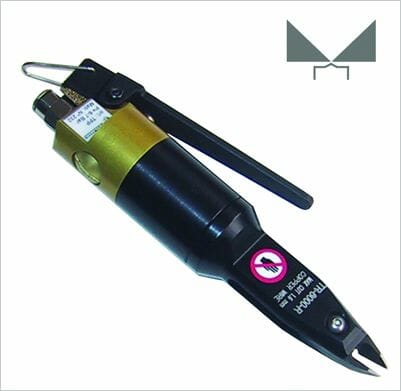

TPP TR 6000 R
90
Ø 1.60mm
14 awg
TPP TR 6000 R
90
Ø 1.60mm
14 awg

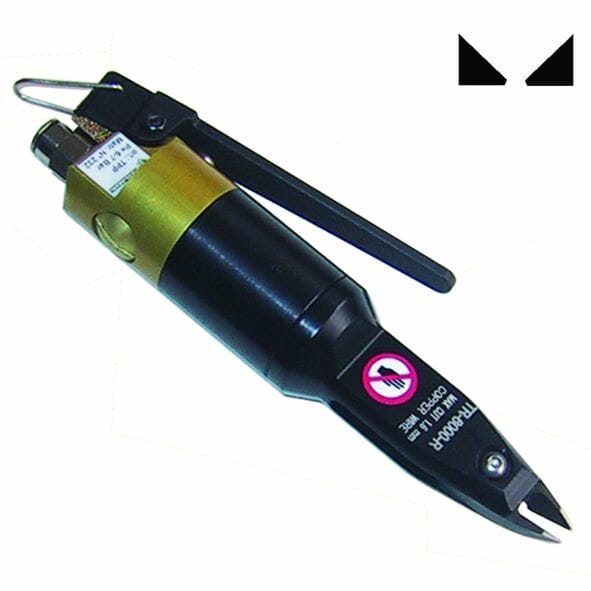

Pneumatic flush cutting tool.
Lever activation.
Several different spare blades available on request.
Weight: 300g
Dimensions: 165x35mm

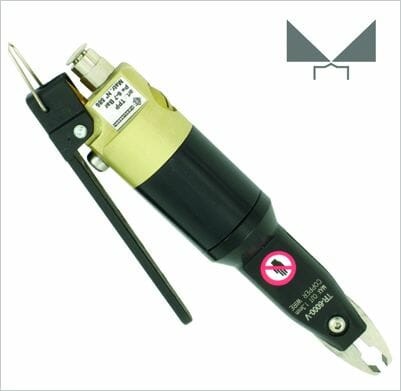

TPP TR 6000 V
80
Ø 1.30mm
16 awg
TPP TR 6000 V
80
Ø 1.30mm
16 awg
Pneumatic tool. 60° angled end flush cut. Ideal for hard-to-each areas.
Lever activation.
Several different spare blades available on request.
Weight: 300g
Dimensions: 165x35mm

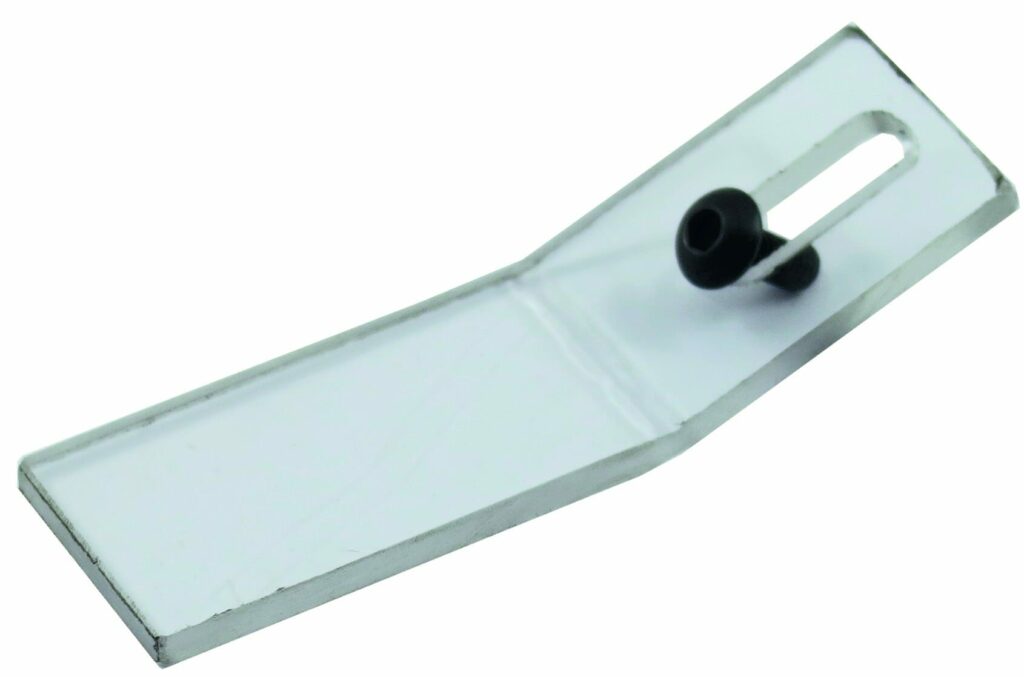

TPP TR A
TPP TR A
Clear polycarbonate protective cover for TPP-TR-6000 / TPP-TR-6000-R / TPP-TR-6000-C / TPP-TR-6000-PR / TPP-TR-6000 (10-13-15).
This cover can be installed only on a new product having the special fixing hole on the tool’s head.

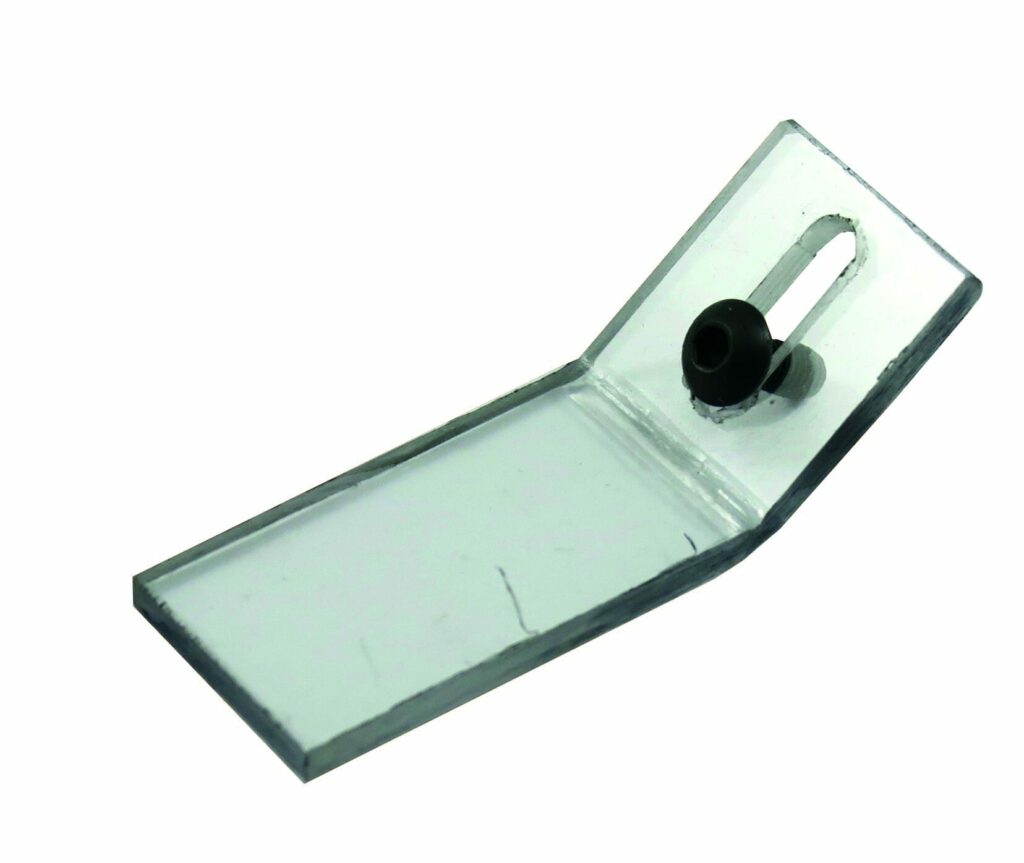

TPP TR V A
TPP TR V A
Clear polycarbonate protective cover for TPP-TR-6000-V.
This cover can be installed only on a new product having the special fixing hole on the tool’s head.
