| ORDER CODE | TIP | ESD ORDER CODE | HRC | WEIGHT (G) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PN 2002 M |  |
PN 2002 M D | 48-50 | 64g | 155mm | Long smooth chain-nose pliers |
| PN 2005 | |
PN 2005 D | 48-50 | 78g | 160mm | Long serrated chain-nose pliers |
| PN 2006 | |
PN 2006 D | 48-50 | 78g | 160mm | Long smooth needle-nose pliers |
| PN 2015 | |
PN 2015 D | 48-50 | 78g | 160mm | Long serrated chain-nose pliers |
| PN 2016 | |
PN 2016 D | 48-50 | 78g | 160mm | Long smooth chain-nose pliers |
| PN 5005 | |
PN 5005 D | 48-50 | 100g | 154mm | Long serrated needle-nose pliers |
| PN 5006 | |
PN 5006 D | 48-50 | 100g | 154mm | Long smooth needle-nose pliers |
| ORDER CODE | TIP | HEAD | HRC | WEIGHT (G) |
|---|

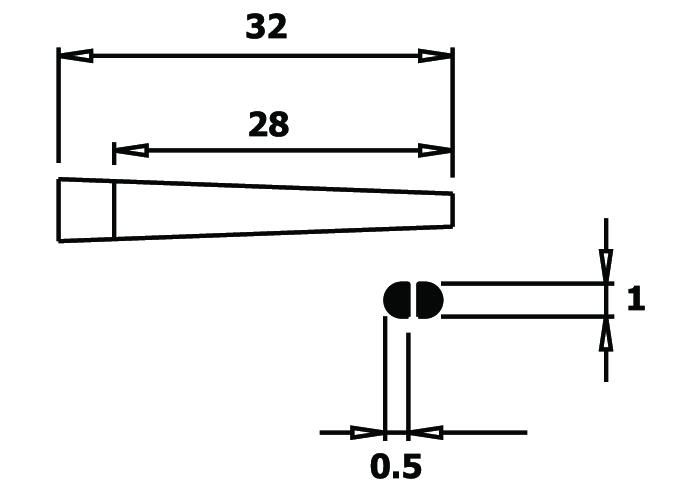

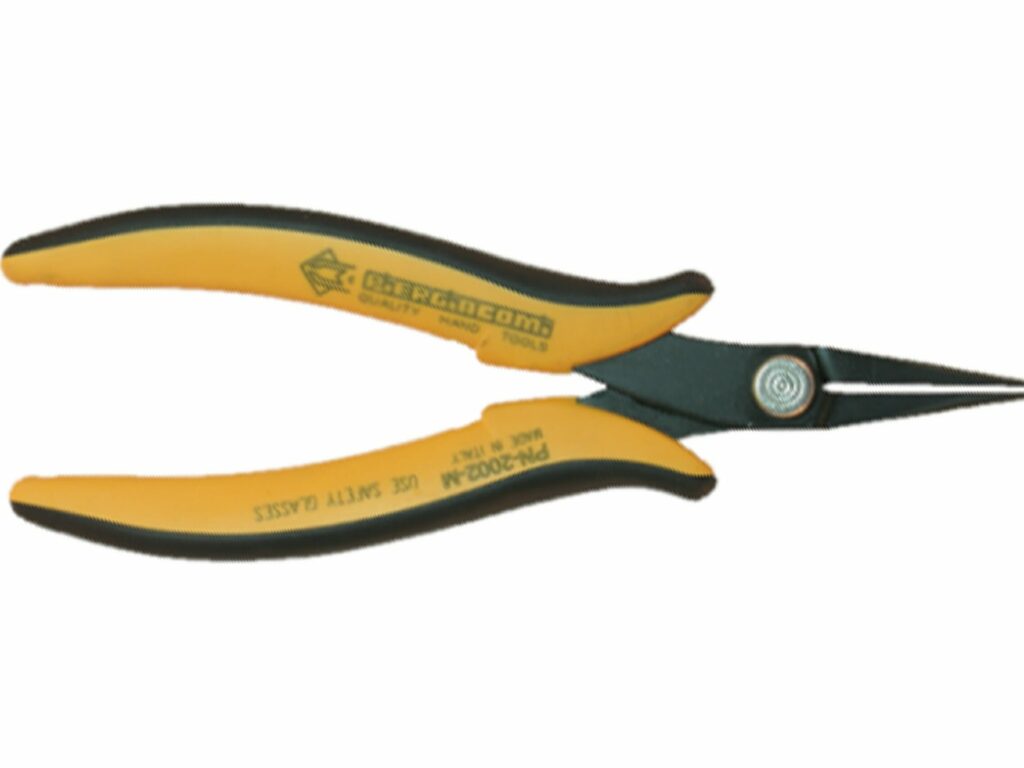

PN 2002 M
Micro
48-50
64g
PN 2002 M
Micro
48-50
64g
Needle-nose pliers with long smooth jaws rounded on the outside, and very thin tips. Ideal for gripping components in tight spaces without damaging them. Steel thickness 2mm. Total lenght 155mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2002 M D)

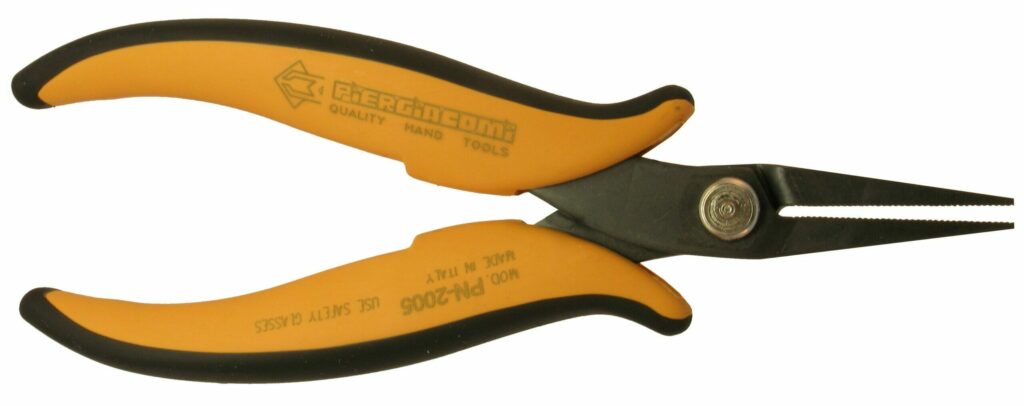

PN 2005
Medium
48-50
78g
PN 2005
Medium
48-50
78g

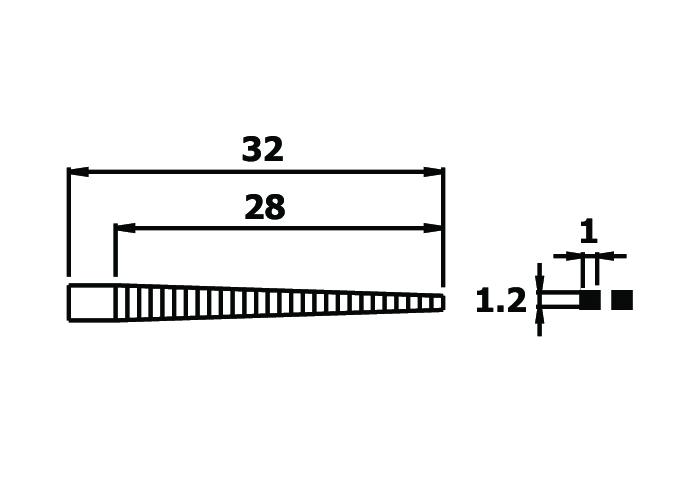

Needle-nose pliers with long serrated jaws, suitable for gripping components in hard-to-reach areas and for delicate electronics applications. Steel thickness 3mm. Total lenght 160mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2005 D)

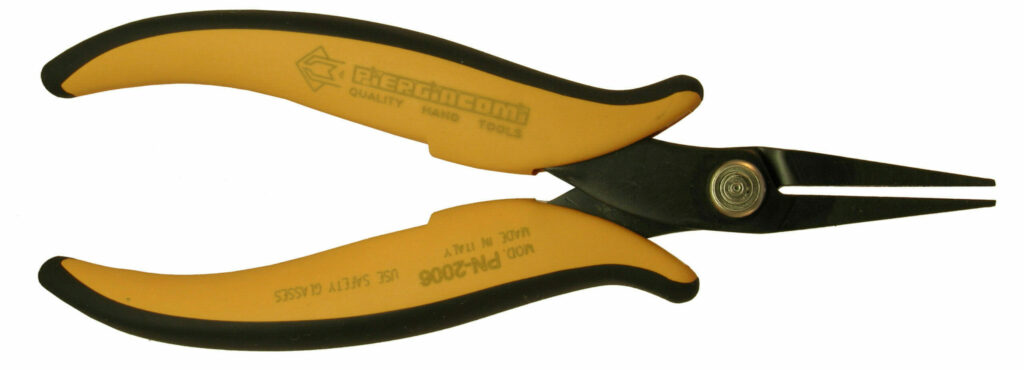

PN 2006
Medium
48-50
78g
PN 2006
Medium
48-50
78g

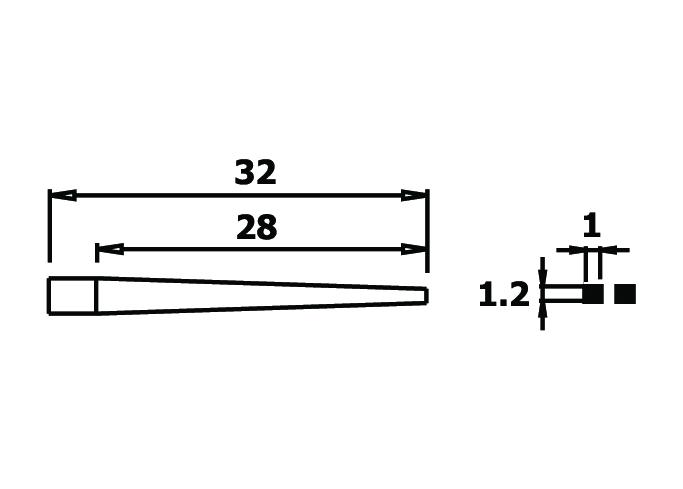

Needle-nose pliers with long smooth jaws, suitable for gripping components in hard-to-reach areas and for delicate electronics applications. Steel thickness 3mm. Total lenght 160mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2006 D)
PN 2015
Medium
48-50
78g
PN 2015
Medium
48-50
78g

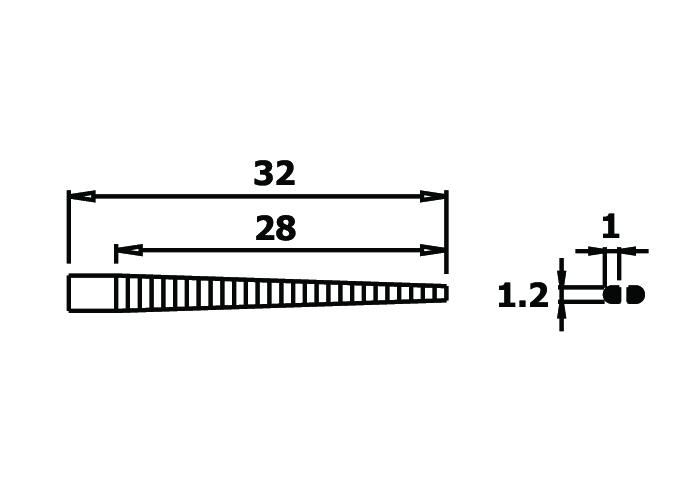

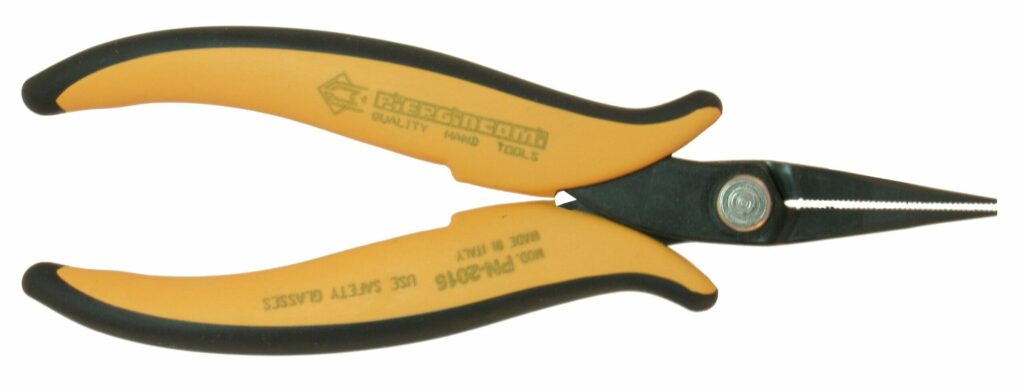

Needle-nose pliers with long serrated jaws rounded on the outside, ideal for gripping components in tight spaces without damaging them. Steel thickness 3mm. Total lenght 160mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2015 D)

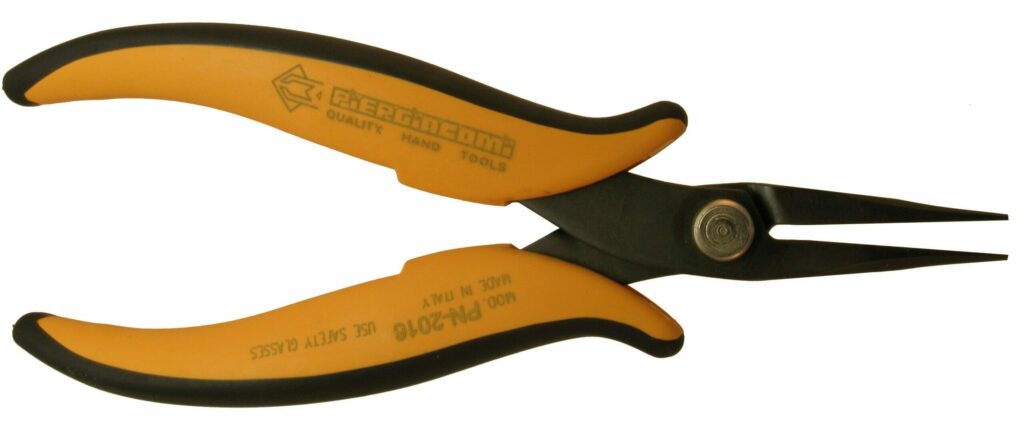

PN 2016
Medium
48-50
78g
PN 2016
Medium
48-50
78g

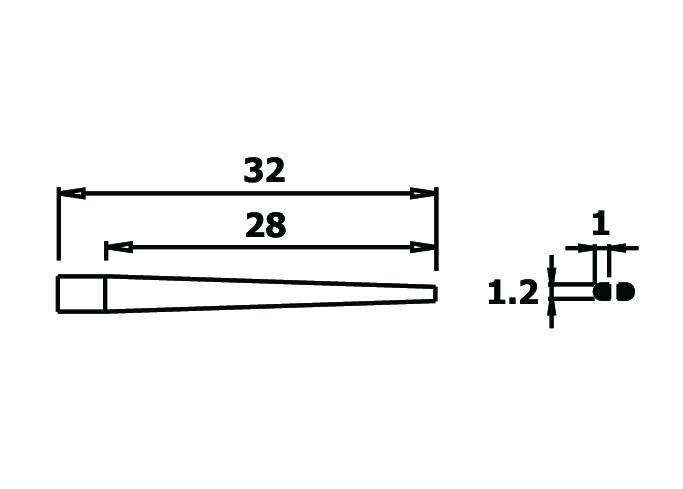

Needle-nose pliers with long smooth jaws rounded on the outside, ideal for gripping components in tight spaces without damaging them. Steel thickness 3mm. Total lenght 160mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2016 D)

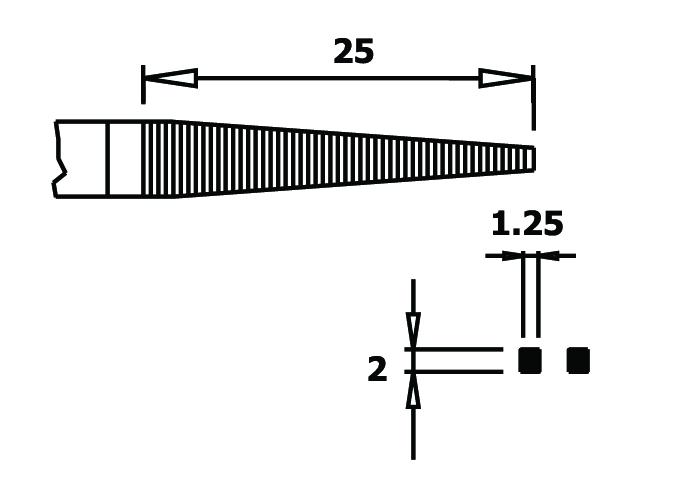

PN 5005
Medium
48-50
100g
PN 5005
Medium
48-50
100 g
Needle-nose pliers with long serrated jaws, specially designed for hard-to-reach areas. Steel thickness 5mm. Total lenght 154mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 5005 D)

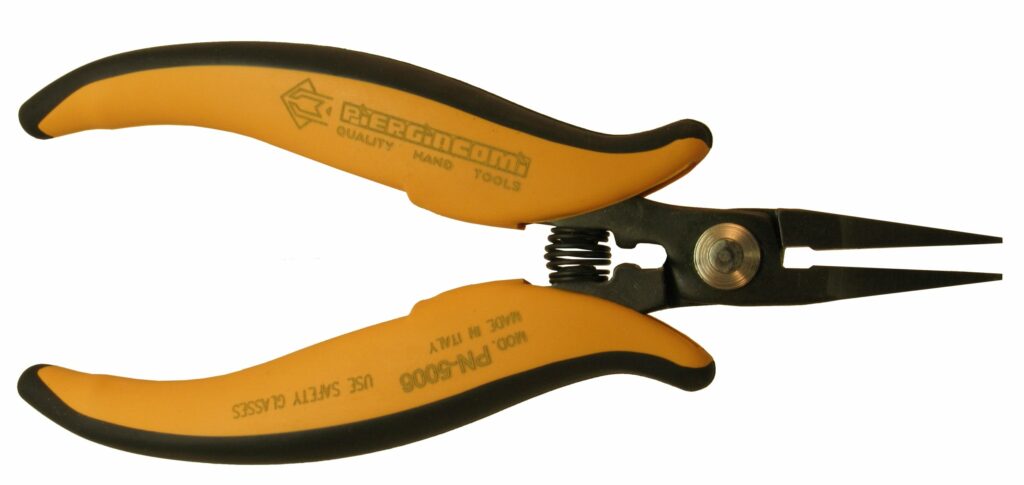

PN 5006
Medium
48-50
100g
PN 5006
Medium
48-50
100g

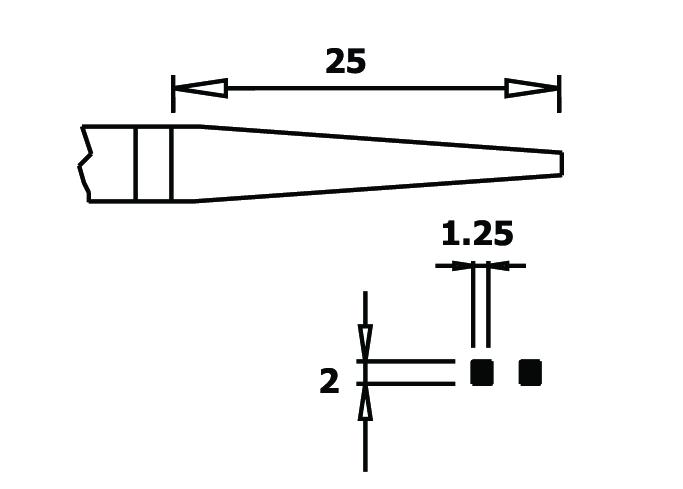

Needle-nose pliers with long smooth jaws, specially designed for hard-to-reach areas. Steel thickness 5mm. Total lenght 154mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 5006 D)
