| ORDER CODE | TIP | ESQ ORDER CODE | HRC (KG) | WEIGHT (G) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PPN 04 NB |  |
PPN 04 NB D | 46-48 | 115g | 170mm | Contact insertion pliers for multi-pole connectors. Contact dimensions: 18P, 18S, 16SP, 16P, 16S, 16, 12. |
| PPN 05 NB | |
PPN 05 NB D | 46-48 | 115g | 170mm | Contact insertion pliers for multi-pole connectors. Contact dimensions: 16SP, 16SS, 16P, 16S, 12P, 12S, 12, 8, 4. |
| PPN 06 NB | |
PPN 06 NB D | 46-48 | 115g | 170mm | Contact insertion pliers for multi-pole connectors. Contact dimensions: 20, 20P, 20S, 18, 18P, 18S, 16SP, 16SS, 16P, 16S, 16. |
| ORDER CODE | TIP | HRC (KG) | WEIGHT (G) |
|---|

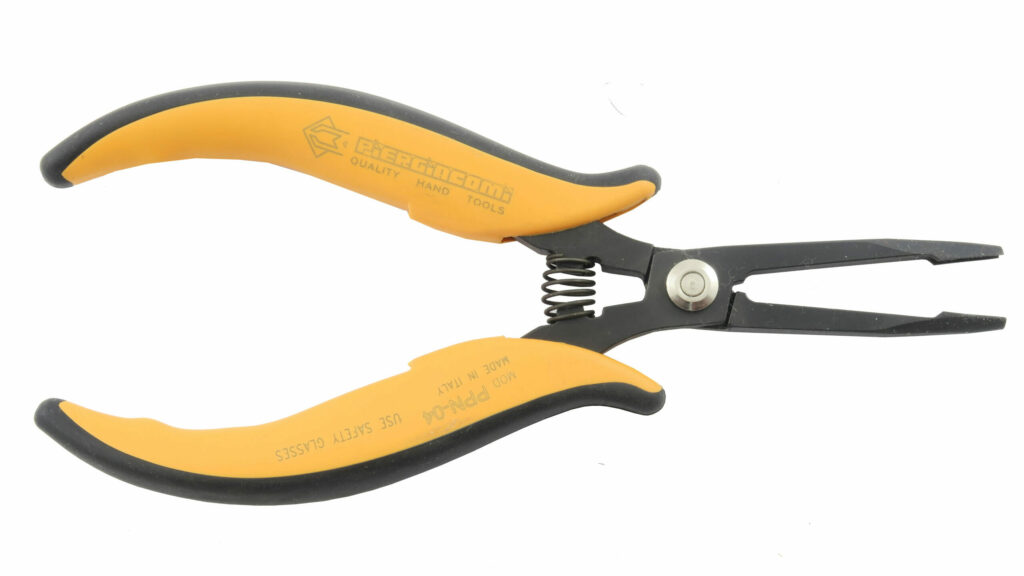

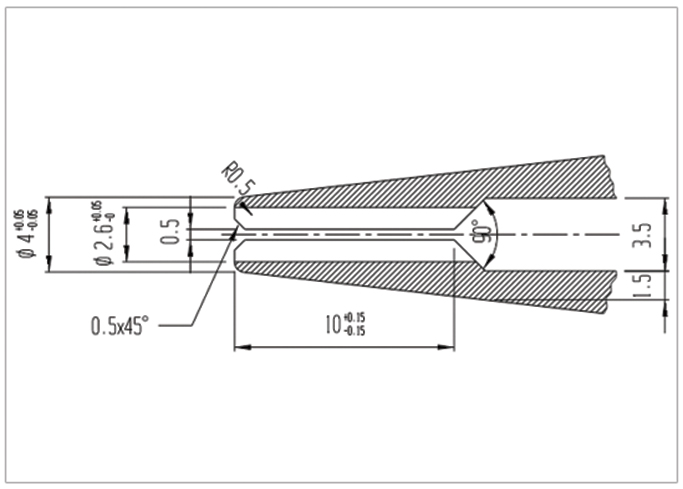

PPN 04 NB
46-48
115g
PPN 04 NB
46-48
115g
Special pliers for the insertion of contacts into multi-pole connectors.
The ergonomic handle is curved at the end to facilitate the insertion.
Steel thickness 5mm. Total lenght 170mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PPN 04 NB D)
Contact dimensions: 18P, 18S, 16SP, 16P, 16S, 16, 12.

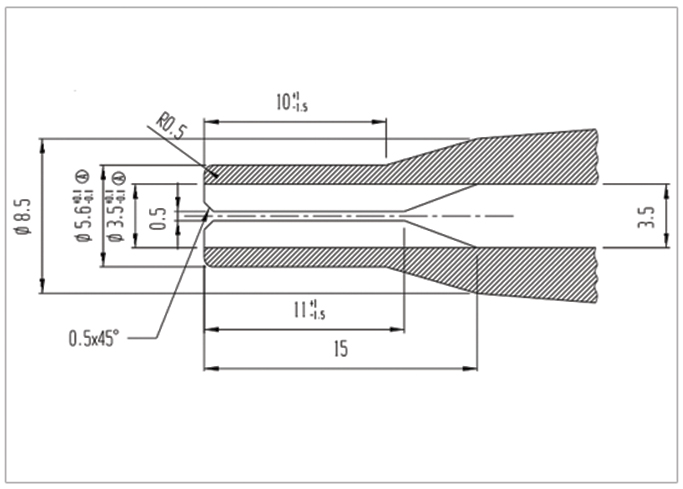

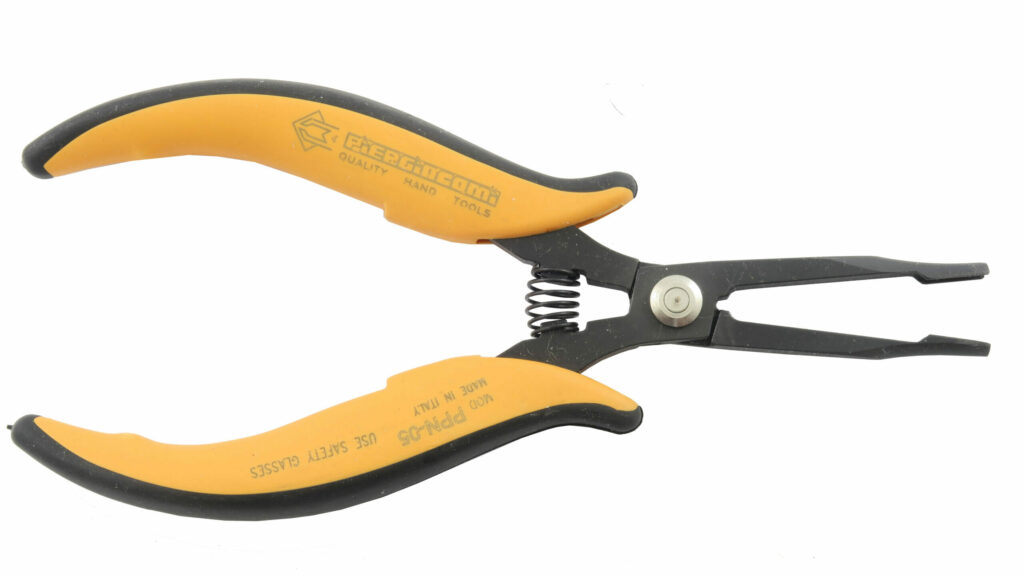

PPN 05 NB
46-48
115g
PPN 05 NB
46-48
115g
Special pliers for the insertion of contacts into multi-pole connectors.
The ergonomic handle is curved at the end to facilitate the insertion.
Steel thickness 5mm. Total lenght 170mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PPN 05 NB D)
Contact dimensions: 16SP, 16SS, 16P, 16S, 12P, 12S, 12, 8, 4.

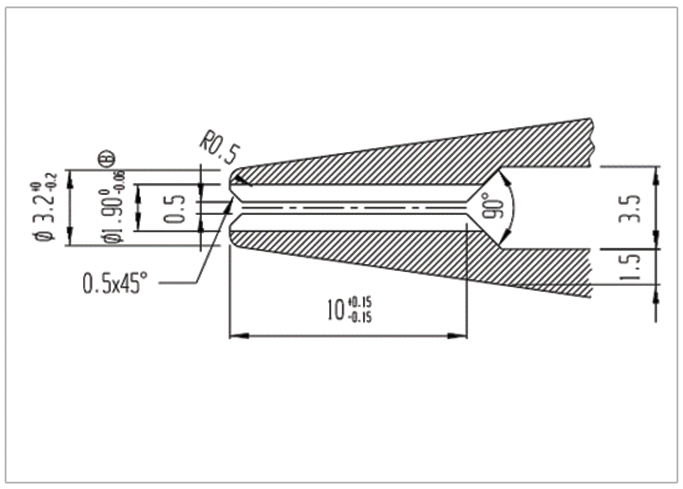

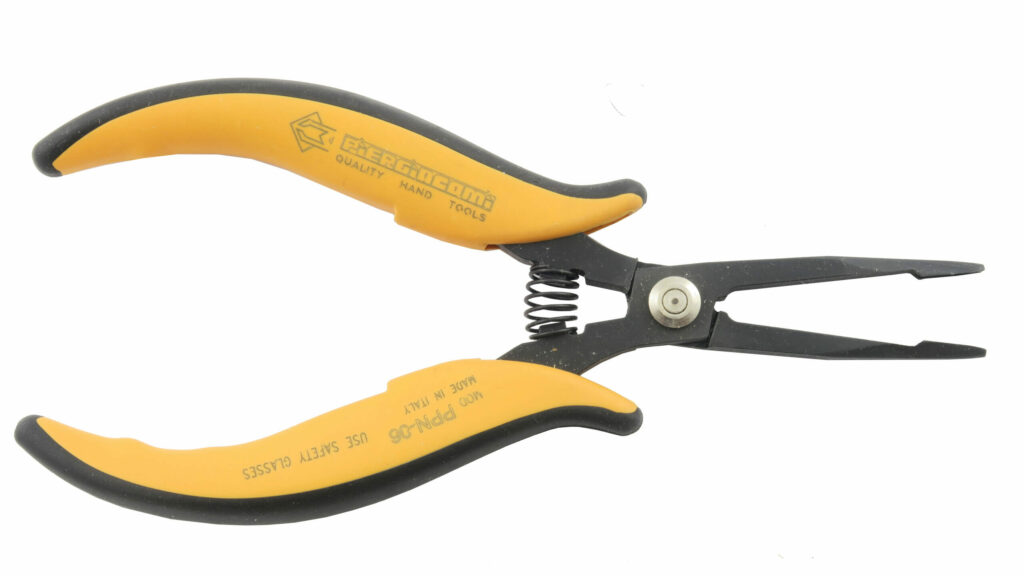

PPN 06 NB
46-48
115g
PPN 06 NB
46-48
115g
Special pliers for the insertion of contacts into multi-pole connectors.
The ergonomic handle is curved at the end to facilitate the insertion.
Steel thickness 5mm. Total lenght 170mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PPN 06 NB D)
Contact dimensions: 20, 20P, 20S, 18, 18P, 18S, 16SP, 16SS, 16P, 16S, 16.
