| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PN 5040/7D |  |
Max Ø 1.3mm | 16 awg | 3 | 158mm | 90° shape forming pliers. ESD safe handles. |
| PN 5040/90 D | |
Max cut Ø 1.0mm | 18 awg | 3 | 158mm | It bends and cuts the leads to 90°. ESD-safe handles. |
| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG |
|---|
PN 5040/7D
Max Ø 1.3mm
16 awg
3
PN 5040/7D
Max Ø 1.3mm
16 awg
3

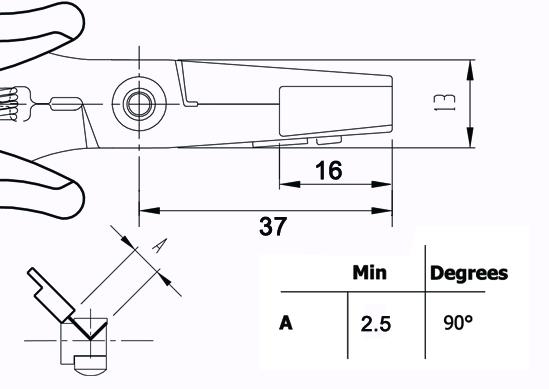

Special pliers used to bend the leads to 90°. With adjustable stop to adjust the forming distance (A). Max. forming width 16 mm, suitable for forming TO220 and TO247 components and other types of components. Steel thickness 5 mm. Tool length 158 mm. ESD-safe handles. Grip model St.

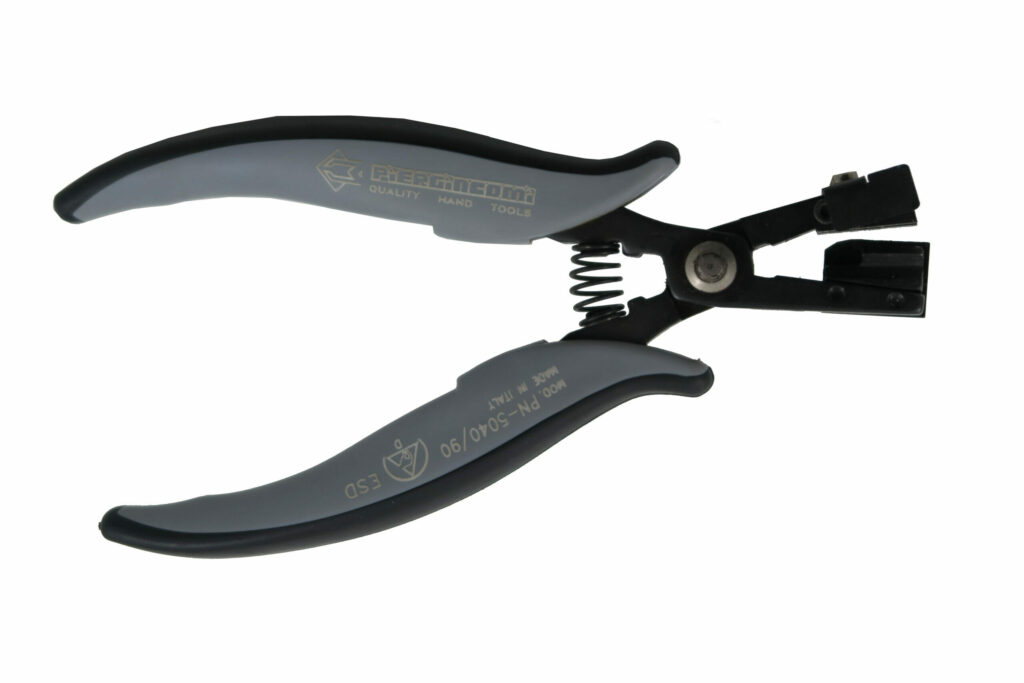

PN 5040/90 D
Max cut Ø 1.0mm
18 awg
3
PN 5040/90 D
Max cut Ø 1.0mm
18 awg
3
It forms the component lead in a « U » shape.
Dimensions: A = 10.16 mm ; B = 15 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.
