Cutters
| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | CUTTING FORCE (KG) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| P-TPP | Body for lever action for TPP. | |||||
| TP 30D |  |
Max cut Ø 0.6mm | 22 awg | 3 | 135mm | Cut and bend pliers. ESD-safe handles. |
| TP 5000/15D | |
Max cut Ø 0.8mm | 20 awg | 3 | 147mm | Cuts and bends the component fixing it on the circuit board. ESD-safe handles. |
| TPP SET with case | Case with pneumatic cutting tool included. | |||||
| TPP TP 6000 | |
Max cut Ø 1.0mm | 18 awg | 50 | 165x35mm | Pneumatic cut and bend tool |
| TPP TP 6000/15 | |
Max cut Ø 1.0mm | 18 awg | 70 | 165x35mm | Pneumatic cut and bend tool |
| ORDER CODE | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | CUTTING FORCE (KG) | LENGTH (MM) |
|---|

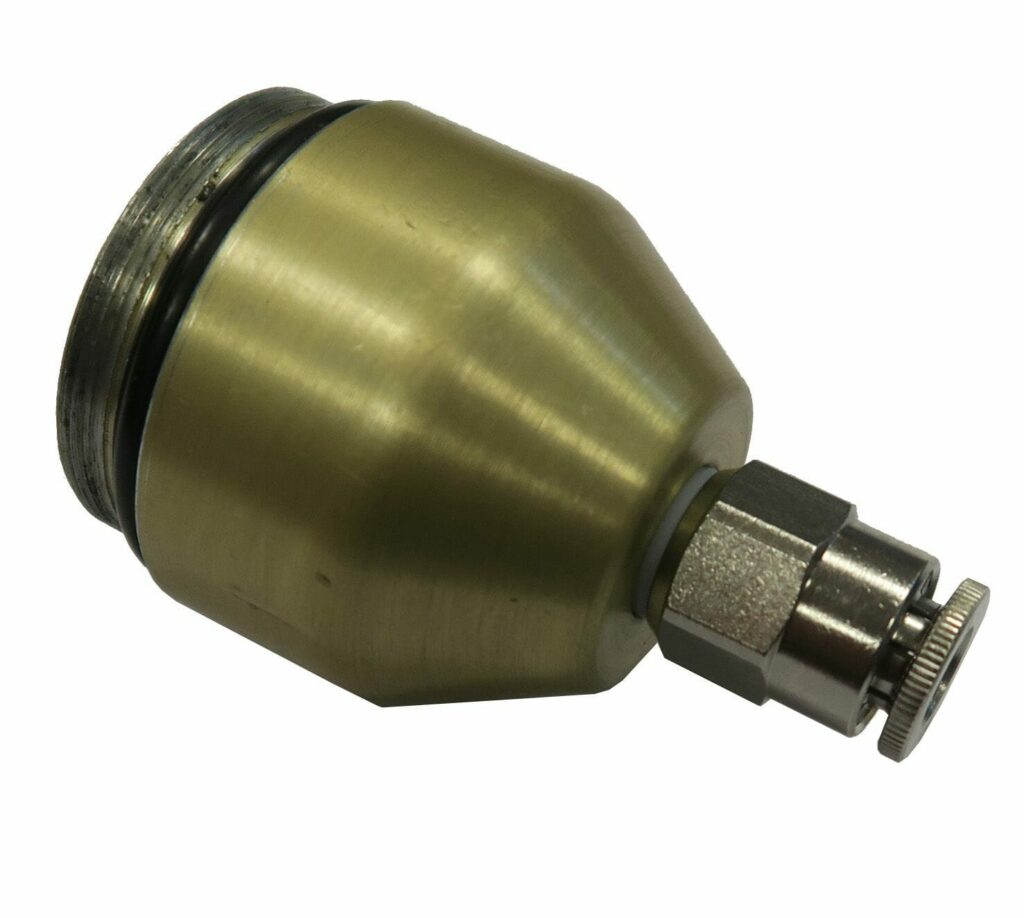

P-TPP
P-TPP
Kit for TPP pedal activation (pedal included).
TP 30D
Max cut Ø 0.6mm
22 awg
3
135mm

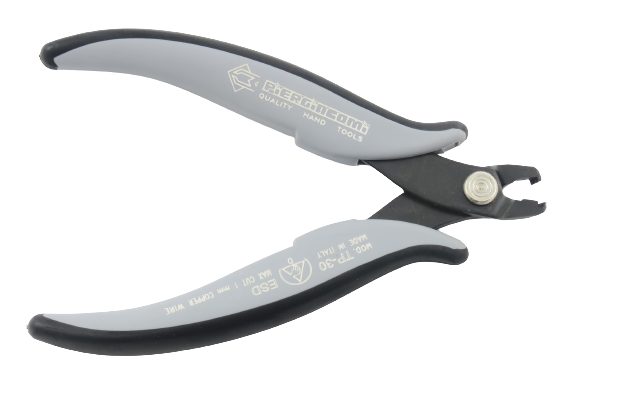

TP 30D
Max cut Ø 0.6mm
22 awg
3
135mm

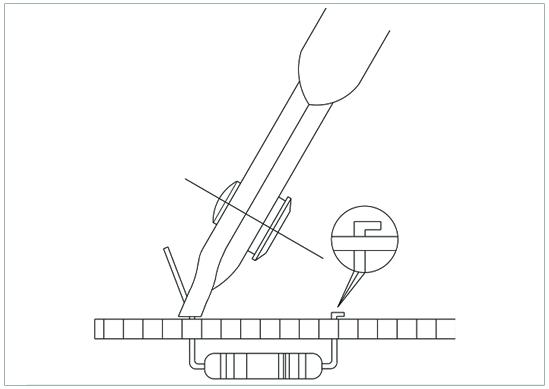

A special tool that cuts and bends the component wire against the PCB in one step. Steel thickness 3mm. Tool length 135mm. ESD-safe handles. Grip model St.

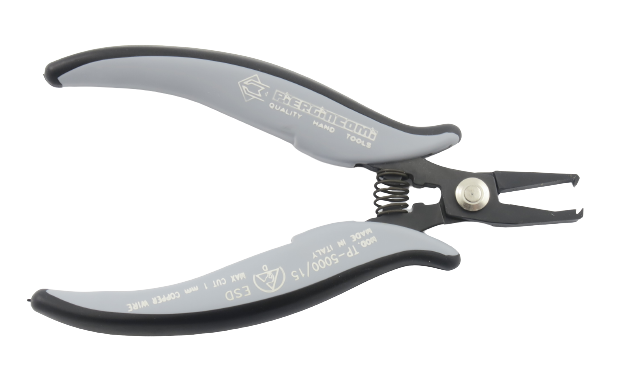

TP 5000/15D
Max cut Ø 0.8mm
20 awg
3
147mm
TP 5000/15D
Max cut Ø 0.8mm
20 awg
3
147mm

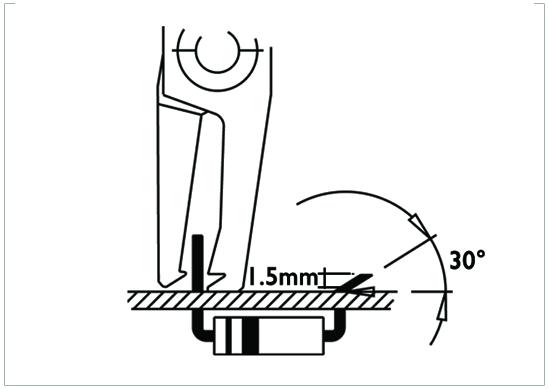

Special end cutting tool, ideal for tight spaces. It cuts and bends the component lead in one step, fixing it to the circuit board.
Steel thickness 5 mm. Tool length 147mm.
ESD-safe handles. Grip model St.

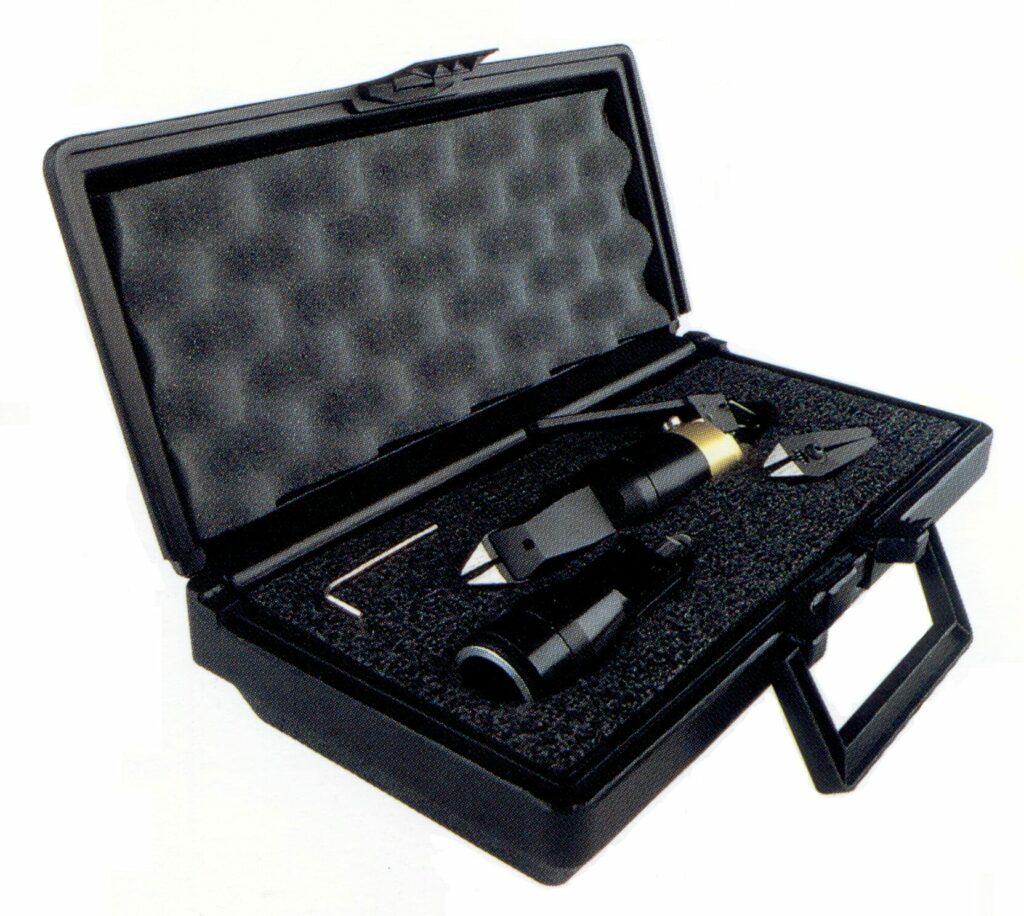

TPP SET with case
TPP SET with case
Case with pneumatic cutting tool included.
It contains:
– TPP-TR-6000
– TP-6000 cutting head (cut & bend): cutting force 50Kg, copper wire Ø 1.02mm (18 awg)
– CL-6000-R spare blades (flush cut): cutting force 90Kg, copper wire Ø 1.60mm (14 awg)
– Hex key (2mm)
Case dimensions: 260(d)x320(w)x80(h)mm
Weight: 730g
Activated by lever.
TPP TP 6000
Max cut Ø 1.0mm
18 awg
50
165x35mm

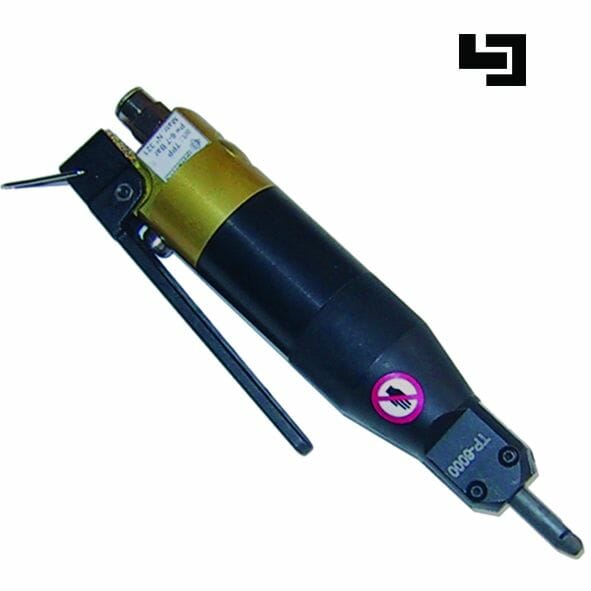

TPP TP 6000
Max cut Ø 1.0mm
18 awg
50
165x35mm

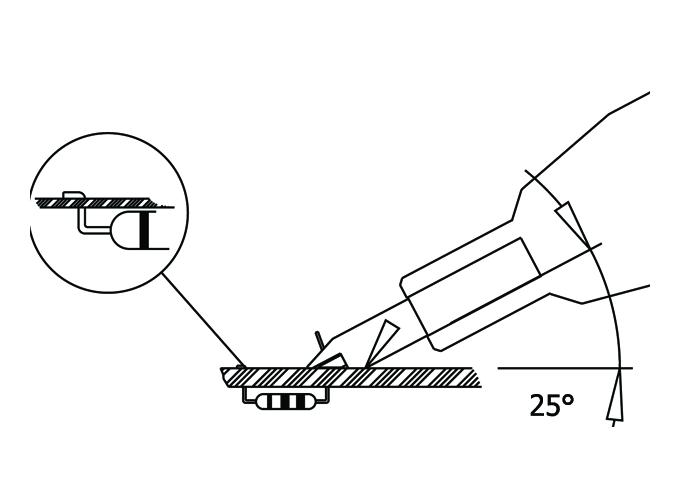

Pneumatic cutting and bending tool, which secures the component to the PCB.
Lever activation.
Several different spare blades available on request.
Weight: 300g
TPP TP 6000/15
Max cut Ø 1.0mm
18 awg
70
165x35mm

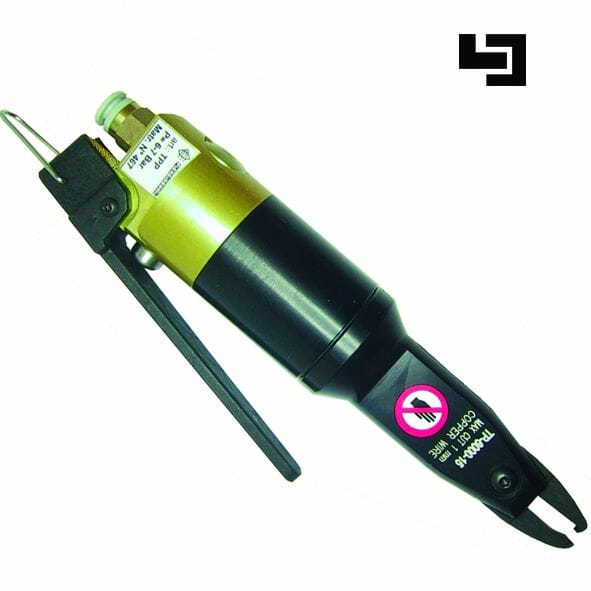

TPP TP 6000/15
Max cut Ø 1.0mm
18 awg
70
165x35mm

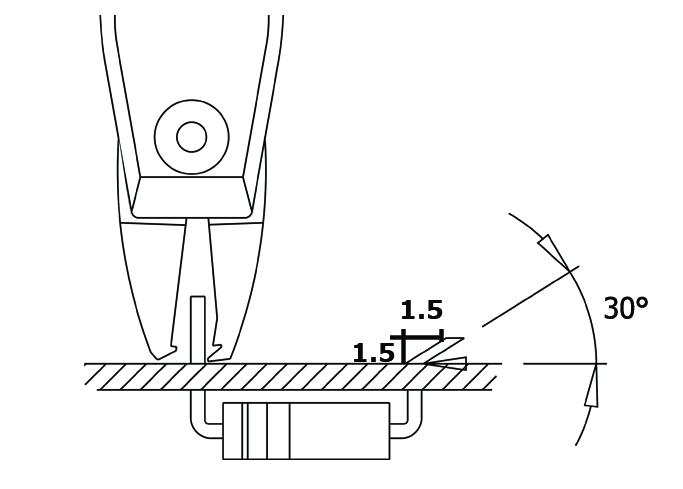

Pneumatic cutting and bending tool, which secures the component to the PCB. Similar to TPP-TP-6000 but with a different head shape, ideal for working in hard-to-reach areas.
Lever activation.
Several different spare blades available on request.
Weight: 300g
