| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | CUTTING FORCE (KG) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| TPP TS 6000 |  |
Max cut Ø 1.3mm | 16 awg | Max 80 | 165x35mm | Pneumatic cut and press tool. |
| TS 30D | |
Max cut Ø 1.0mm | 18 awg | 9 | 138mm | Cut and press pliers. ESD-safe handles. |
| ORDER CODE | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | CUTTING FORCE (KG) | LENGTH (MM) |
|---|
TPP TS 6000
Max cut Ø 1.3mm
16 awg
Max 80
165x35mm

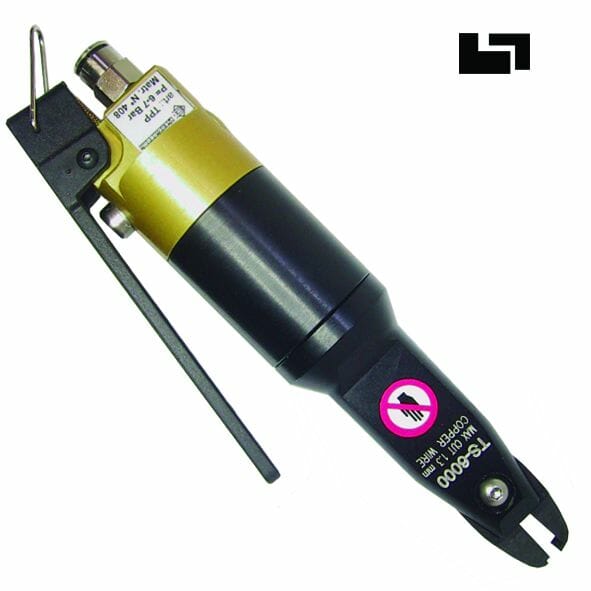

TPP TS 6000
Max cut Ø 1.3mm
16 awg
Max 80
165x35mm

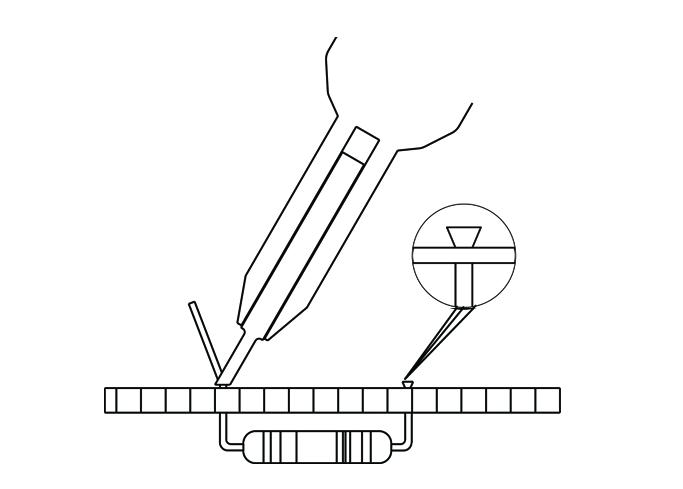

Pneumatic cut and press tool, which secures the component on the circuit board.
Lever activation.
Several different spare blades available on request.
Weight: 300gr.

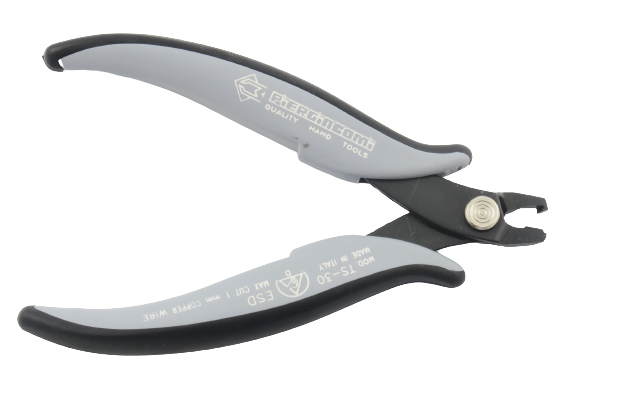

TS 30D
Max cut Ø 1.0mm
18 awg
9
138mm
TS 30D
Max cut Ø 1.0mm
18 awg
9
138mm

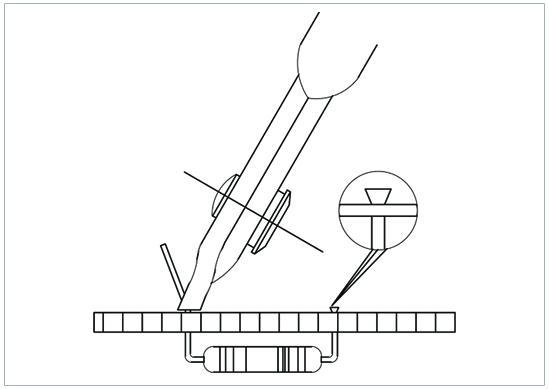

A special tool that cuts and presses the component wire against the PCB in one step. Steel thickness 3mm. Tool length 138mm. ESD-safe handles. Grip model St.
