| ORDER CODE | TIP | ESQ ORDER CODE | HRC | WEIGHT (G) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PN 2001 |  |
PN 2001 D | 48-50 | 78g | 146mm | Short serrated needle-nose pliers |
| PN 2002 | |
PN 2002 D | 48-50 | 78g | 146mm | Short smooth needle-nose pliers |
| PN 20 M | |
PN 20 M D | 48-50 | 49g | 136mm | Short smooth needle-nose pliers |
| PN 5001 | |
PN 5001 D | 48-50 | 98g | 146mm | Short serrated needle-nose pliers |
| PN 5002 | |
PN 5002 D | 48-50 | 98g | 146mm | Short smooth needle-nose pliers |
| ORDER CODE | TIP | HEAD | HRC | WEIGHT (G) |
|---|

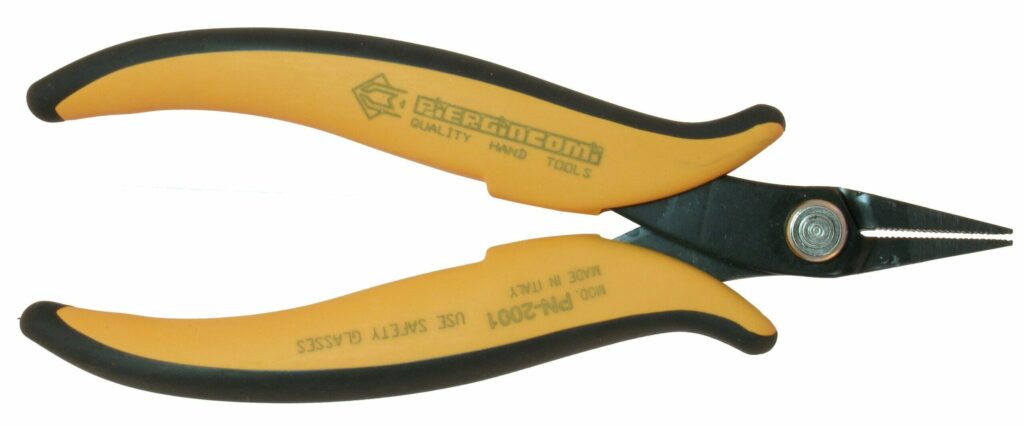

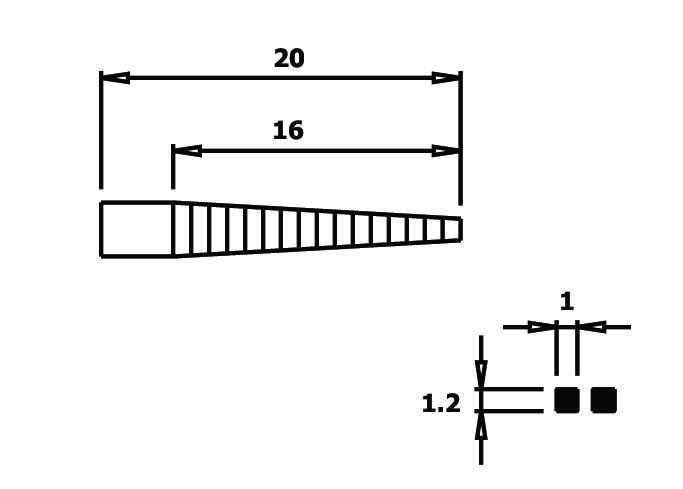

PN 2001
Medium
48-50
78g
PN 2001
Medium
48-50
78g
Needle-nose pliers with short serrated jaws, suitable for gripping any type of components. Steel thickness 3mm. Total lenght 146mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2001 D)

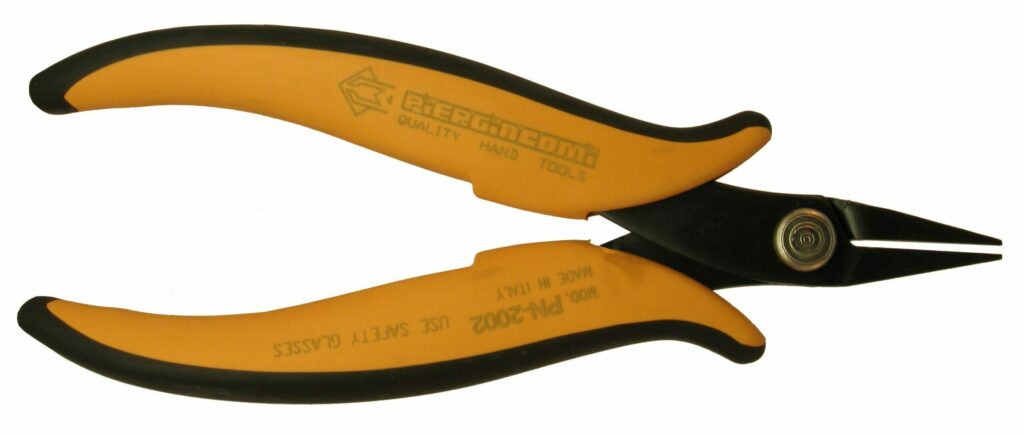

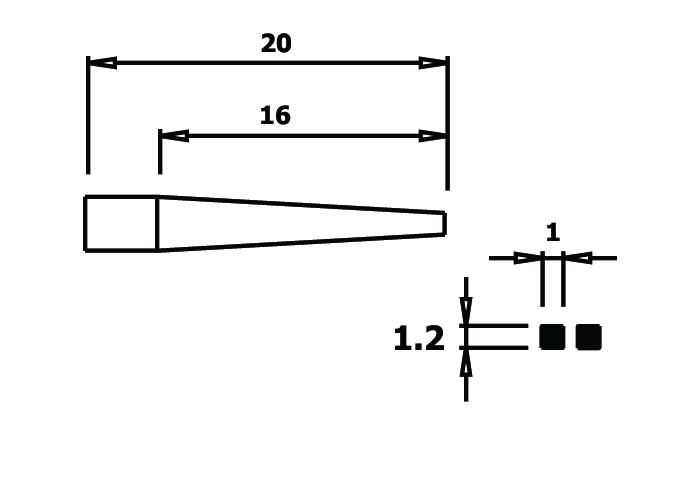

PN 2002
Medium
48-50
78g
PN 2002
Medium
48-50
78g
Needle-nose pliers with short smooth jaws, suitable for gripping any type of components. Steel thickness 3mm. Total lenght 146mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 2002 D)

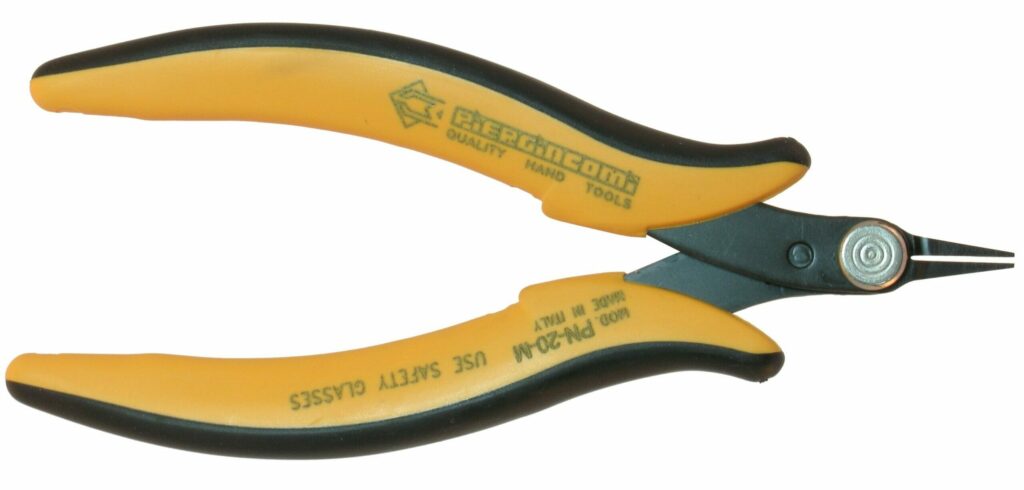

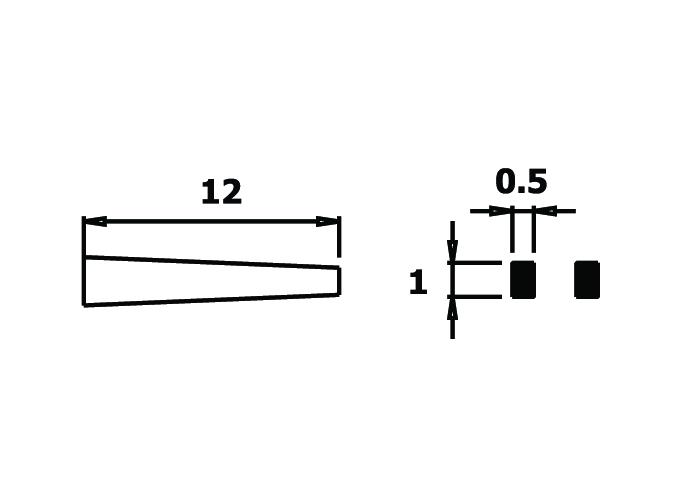

PN 20 M
Micro
48-50
49g
PN 20 M
Micro
48-50
49g
Needle-nose pliers with short smooth jaws, specially designed for delicate electronics applications. Steel thickness 2mm. Total length 136mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 20 M D)

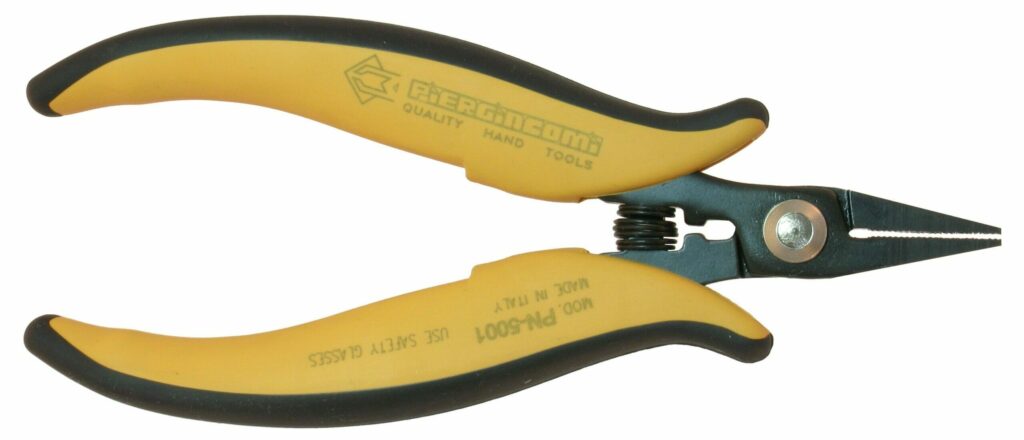

PN 5001
Medium
48-50
98g
PN 5001
Medium
48-50
98g

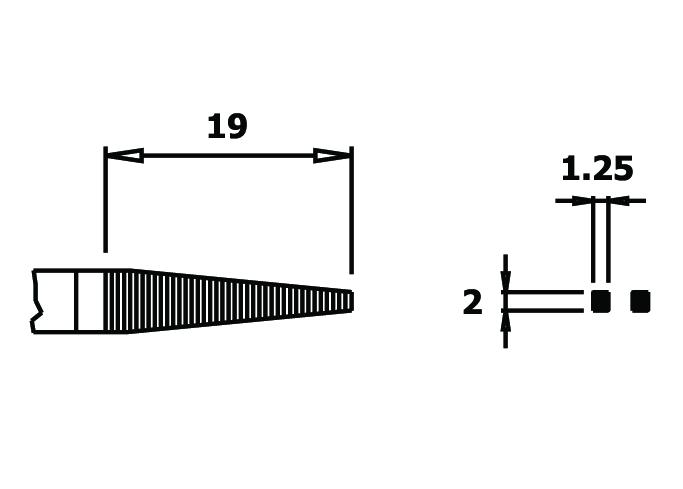

Needle-nose pliers with short serrated jaws, suitable for gripping any type of components. Steel thickness 5mm. Total lenght 146mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 5001 D)

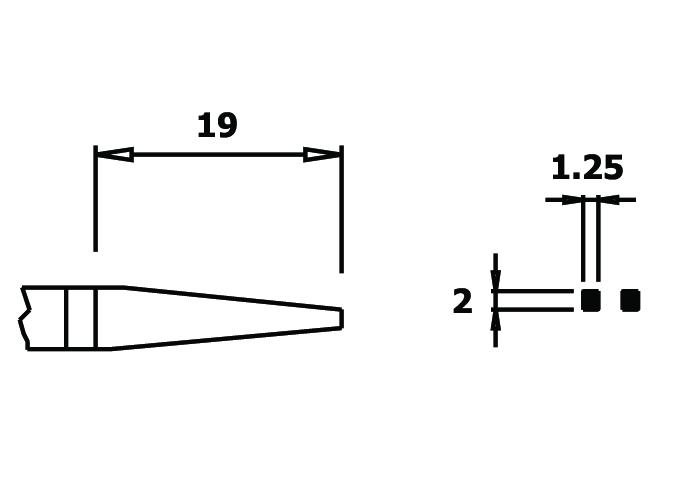

PN 5002
Medium
48-50
98g
PN 5002
Medium
48-50
98g

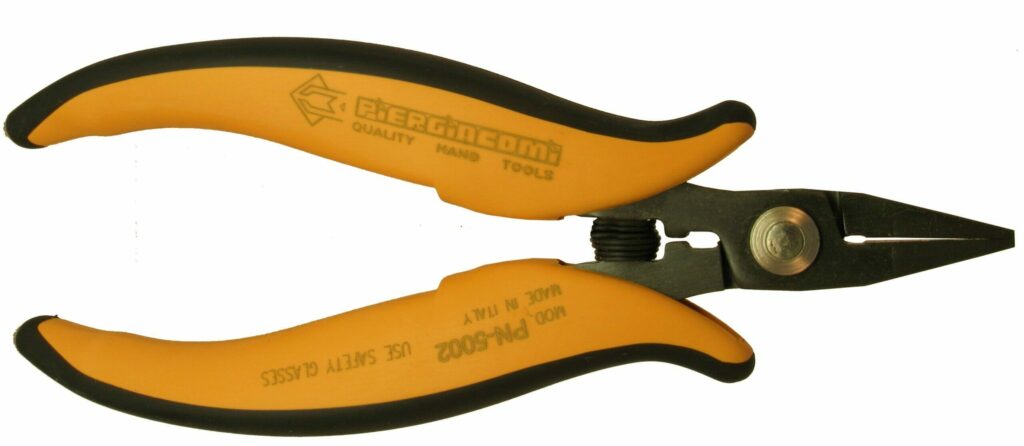

Needle-nose pliers with short smooth jaws, suitable for gripping any type of components. Steel thickness 5mm. Total lenght 146mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code PN 5002 D)
