| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|
| PNI 5000D |  |
Max cut Ø 0.8mm | 20 awg | 3 | 150mm | Small IC forming and cutting pliers. ESD-safe handles. |
| PNI 5015D |  |
Max cut Ø 0.6mm | 22 awg | 5 | 155mm | Pliers for a clean cut on an entire row of pins, at a predetermined height from the surface. ESD-safe handles. |
| ORDER CODE | TIP | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | FORMING FORCE KG |
|---|

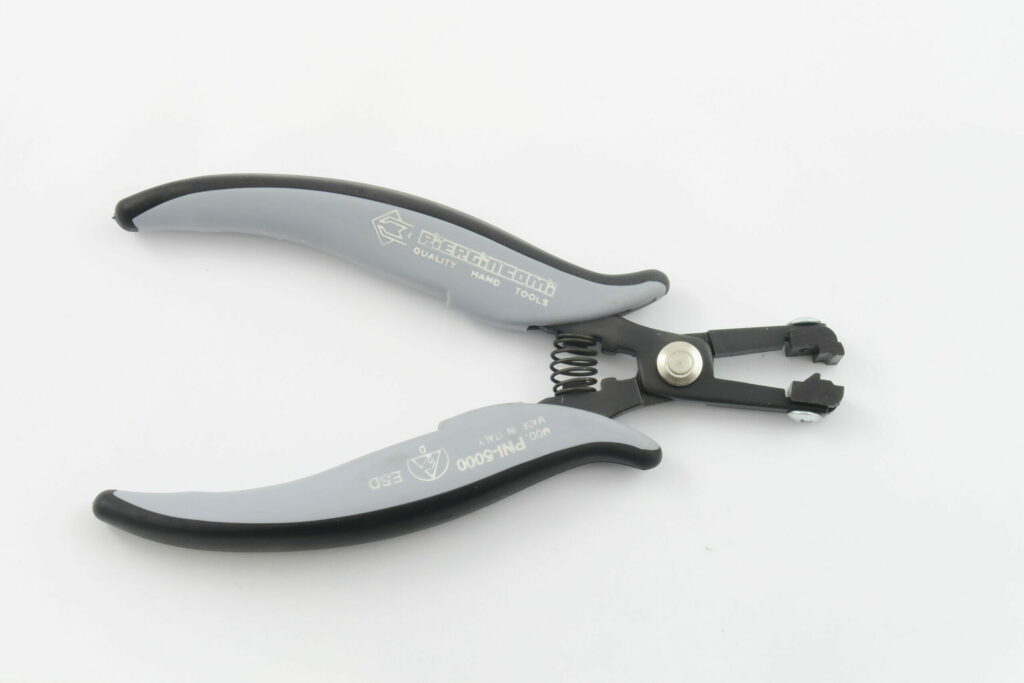

PNI 5000D
Max cut Ø 0.8mm
20 awg
3
PNI 5000D
Max cut Ø 0.8mm
20 awg
3

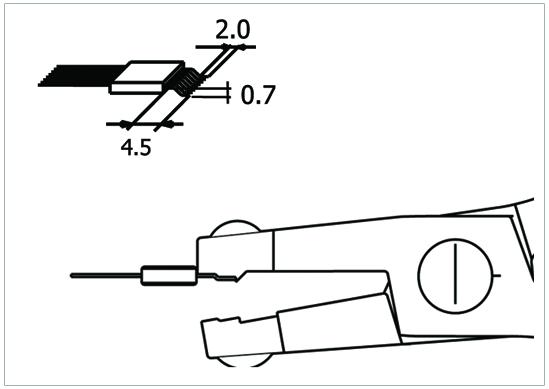

Special pliers designed to cut and form IC pins in one step. Steel thickness 5 mm. Tool length 150 mm. ESD-safe handles. Grip model St.

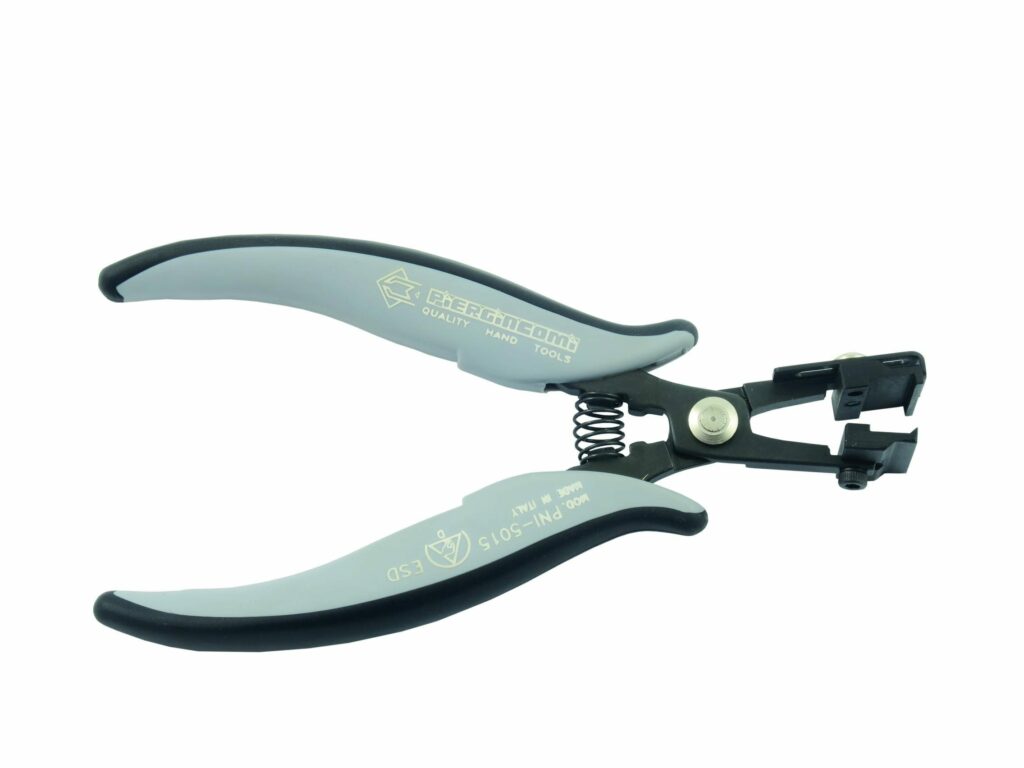

PNI 5015D
Max cut Ø 0.6mm
22 awg
5
PNI 5015D
Max cut Ø 0.6mm
22 awg
5

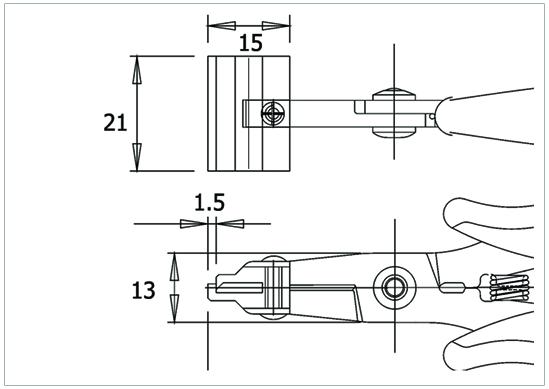

Special pliers for a clean cut on an entire row of pins, at a predetermined adjustable height from the surface. The cutting length can be adjusted using the adjustable stop (min. 1.5mm – max. 10mm). Steel thickness 5 mm. Tool length 155 mm. ESD-safe handles. Grip model St.
