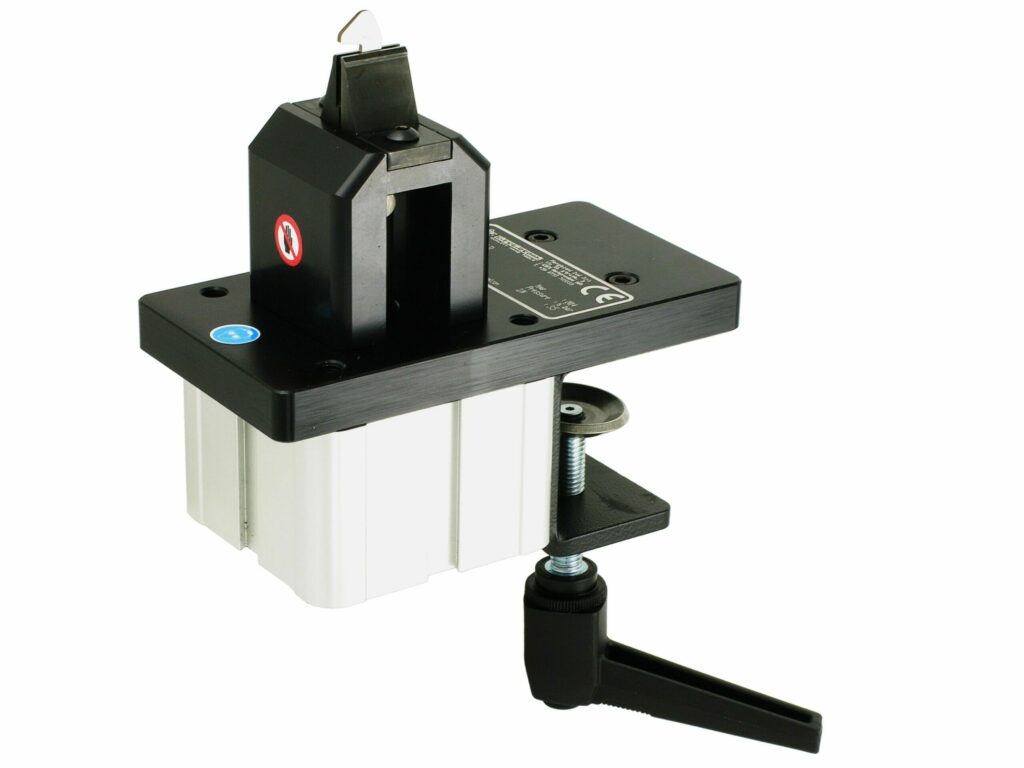

“DPP MONO” Pneumatic Depaneling system with 1 head.
PCB specifications for the DPP MONO:
– Blade thickness: 2mm, 2.3mm, 2.4mm & 2.5mm
– Isthmus: 1÷5mm
– Max PCB thickness: 1.6mm
– Max cutting force: 190kg
– Minimum isthmus distance: 13mm
The DPB is normally supplied with the “L” blade, but it is possible to order the “T” blade too.
How to order:
DPB-1-ST20 (for 2mm cutting standard blade)
DPB-1-ST23 (for 2.3mm cutting standard blade)
DPB-1-ST24 (for 2.4mm cutting standard blade)
DPB-1-ST25 (for 2.5mm cutting standard blade)
Replacement standard blade « L » form: SDP-20-LT (2mm), SDP-23-LT (2.3mm), SDP-24-LT (2.4mm), SDP-25-LT (2.5mm).
Replacement special blade « T » form: SDP-20-LTT (2mm), SDP-23-LTT (2.3mm), SDP-24-LTT (2.4mm), SDP-25-LTT (2.5mm).
Dimension: 155x80x200mm
Weight: 2.5Kg
Pedal activation.
DPP 20 N
blade 2.0mm (.078”)
DPP 20 N
blade 2.0mm (.078”)

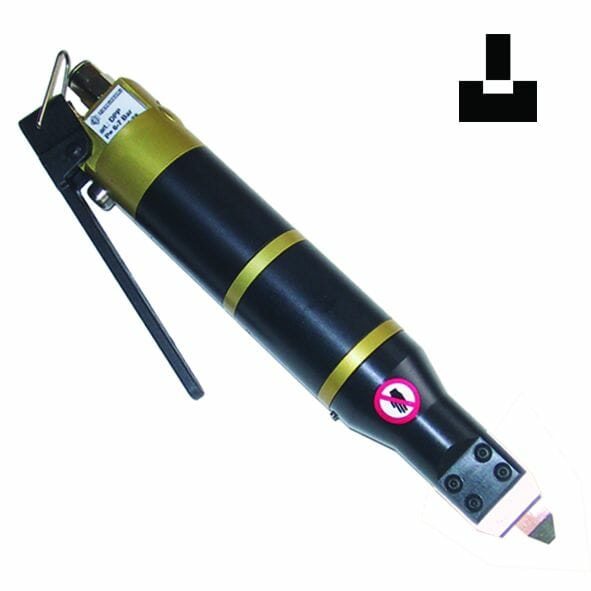

Pneumatic depaneling tool (2.0mm blade).
The DPP is designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The blades, made from special steel in various thicknesses, are interchangeable, so as to meet any customer needs (max. isthmus length 3mm). The DPP is normally supplied with the « L » blade.
TECHNICAL DETAILS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force: 80Kg
– Blade thickness: 2.0mm
– Custom blades on request (included the « T » blade).
Size of blades are interchangeable, by buying the « set of blade » of the required size!
How to order:
– Replacement blade: LDPP20 (2.0mm)
– Set of blade: LPDPP…(specify size of blade 2.3/2.4/2.5mm)
Dimensions: 210x35mm
Weight: 400g
Activated by lever.
DPP 23 N
blade 2.3mm (.090”)
DPP 23 N
blade 2.3mm (.090”)
Pneumatic depaneling tool (2.3mm blade).
The DPP is designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The blades, made from special steel in various thicknesses, are interchangeable, so as to meet any customer needs (max. isthmus length 3mm). The DPP is normally supplied with the « L » blade.
TECHNICAL DETAILS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force: 80Kg
– Blade thickness: 2.3mm
– Custom blades on request (included the « T » blade).
Size of blades are interchangeable, by buying the « set of blade » of the required size!
How to order:
– Replacement blade: LDPP23 (2.3mm)
– Set of blade: LPDPP…(specify size of blade 2.0/2.4/2.5mm)
Dimensions: 210x35mm
Weight: 400g
Activated by lever.
DPP 24 N
blade 2.4mm (.094”)
DPP 24 N
blade 2.4mm (.094”)
Pneumatic depaneling tool (2.4mm blade).
The DPP is designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The blades, made from special steel in various thicknesses, are interchangeable, so as to meet any customer needs (max. isthmus length 3mm). The DPP is normally supplied with the « L » blade.
TECHNICAL DETAILS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force: 80Kg
– Blade thickness: 2.4mm
– Custom blades on request (included the « T » blade).
Size of blades are interchangeable, by buying the « set of blade » of the required size!
How to order:
– Replacement blade: LDPP24 (2.4mm)
– Set of blade: LPDPP…(specify size of blade 2.0/2.3/2.5mm)
Dimensions: 210x35mm
Weight: 400g
Activated by lever.
DPP 25 N
blade 2.5mm (.098”)
DPP 25 N
blade 2.5mm (.098”)
Pneumatic depaneling tool (2.5mm blade).
The DPP is designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The blades, made from special steel in various thicknesses, are interchangeable, so as to meet any customer needs (max. isthmus length 3mm). The DPP is normally supplied with the « L » blade.
TECHNICAL DETAILS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force: 80Kg
– Blade thickness: 2.5mm
– Custom blades on request (included the « T » blade).
Size of blades are interchangeable, by buying the « set of blade » of the required size!
How to order:
– Replacement blade: LDPP25 (2.5mm)
– Set of blade: LPDPP…(specify size of blade 2.0/2.3/2.4mm)
Dimensions: 210x35mm
Weight: 400g
Activated by lever.
DPP SET with case
–
DPP SET with case
–

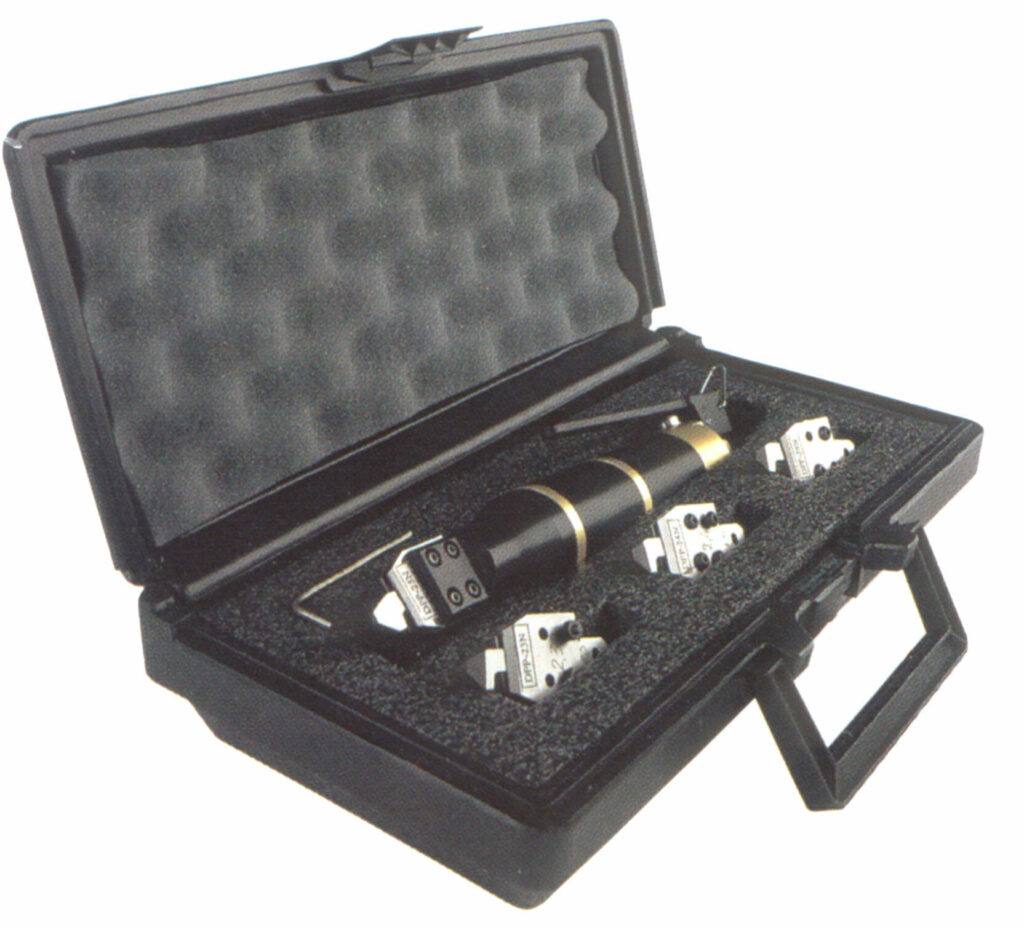

Case with pneumatic depaneling tool included.
It contains:
– DPP-25-N (blade thickness 2.5mm)
– 3 set of interchangeable blades (LPDPP20 2.0mm 0.078″; LPDPP23 2.3mm 0.090″; LPDPP24 2.4mm 0.094″)
– hexagonal spanner (2mm)
Case dimensions: 260(d)x320(w)x80(h)mm
Weight: 830g
Activated by lever.
P-DPP
–
P-DPP
–

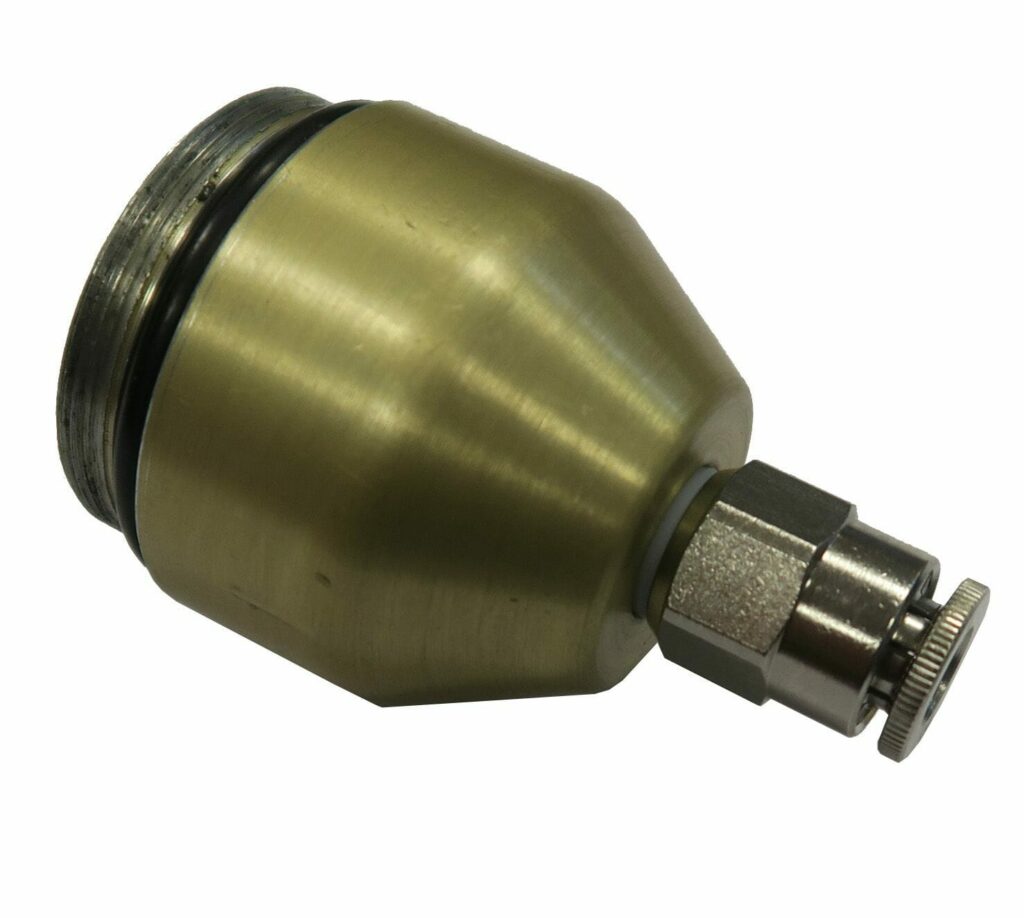

Kit for DPP pedal activation (pedal included).
