Cutters
| ORDER CODE | ESD ORDER CODE | MAXIMUM CUTTING FORCE (KG) | BLADE THICKNESS (MM) | WEIGHT (G) | LENGTH (MM) |
|---|---|---|---|---|---|
| DP 10 N | DP 10 N D | 1kg | 1.0mm (.039″) | 90g | 147mm |
| DP 15 N | DP 15 N D | 3kg | 1.5mm (.059″) | 90g | 147mm |
| DP 18 N | DP 18 N D | 3kg | 1.8mm (.070″) | 90g | 147mm |
| DP 20 N | DP 20 N D | 3kg | blade 2.0mm (.078″) | 90g | 147mm |
| DP 23 N | DP 23 N D | 7kg | blade 2.3mm (.090″) | 90g | 147mm |
| DP 24 N | DP 24 N D | 7kg | blade 2.4mm (.094″) | 90g | 147mm |
| DP 25 N | DP 25 N D | 7kg | blade 2.5mm (.098″) | 90g | 147mm |
| ORDER CODE | ESD ORDER CODE | MAXIMUM CUTTING FORCE (KG) | BLADE THICKNESS (MM) | WEIGHT (G) | LENGTH (MM) |
|---|

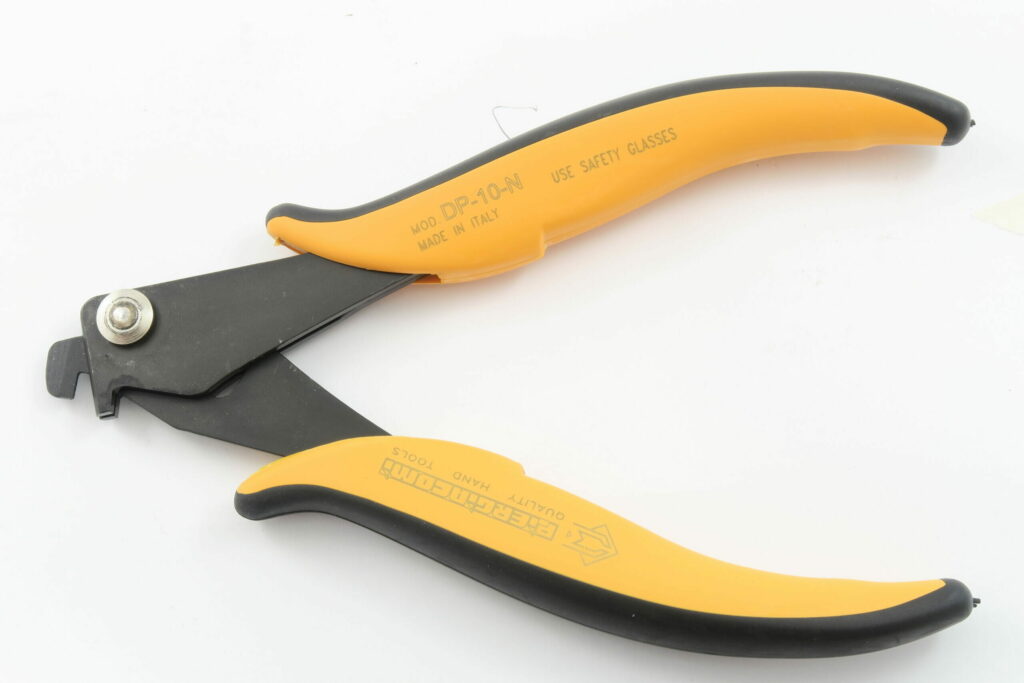

DP 10 N
DP 10 N D
1kg
1.0mm (.039”)
90g
147mm
DP 10 N
DP 10 N D
1kg
1.0mm (.039”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 1kg.
– Blade thickness: 1.0mm

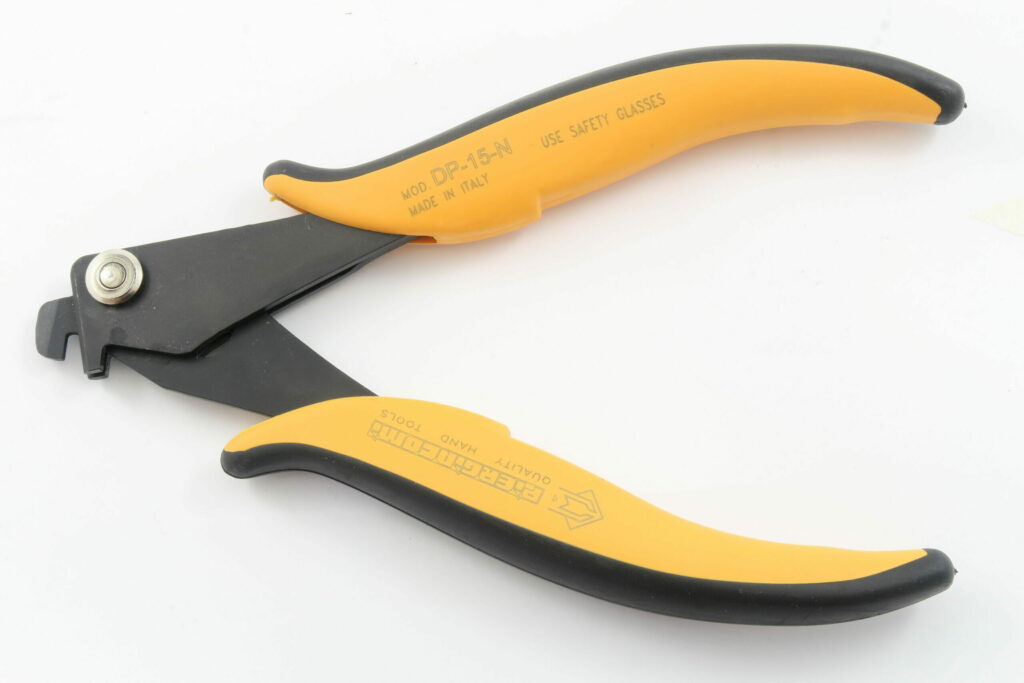

DP 15 N
DP 15 N D
3kg
1.5mm (.059”)
90g
147mm
DP 15 N
DP 15 N D
3kg
1.5mm (.059”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 3kg.
– Blade thickness: 1.5mm

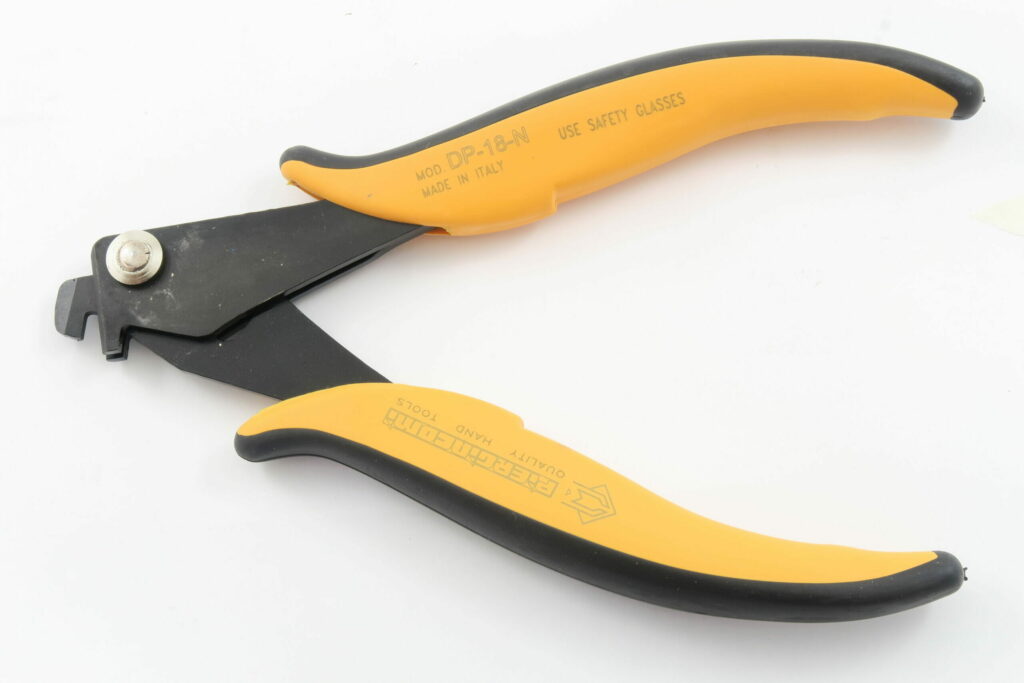

DP 18 N
DP 18 N D
3kg
1.8mm (.070”)
90g
147mm
DP 18 N
DP 18 N D
3kg
1.8mm (.070”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 3kg.
– Blade thickness: 1.8mm

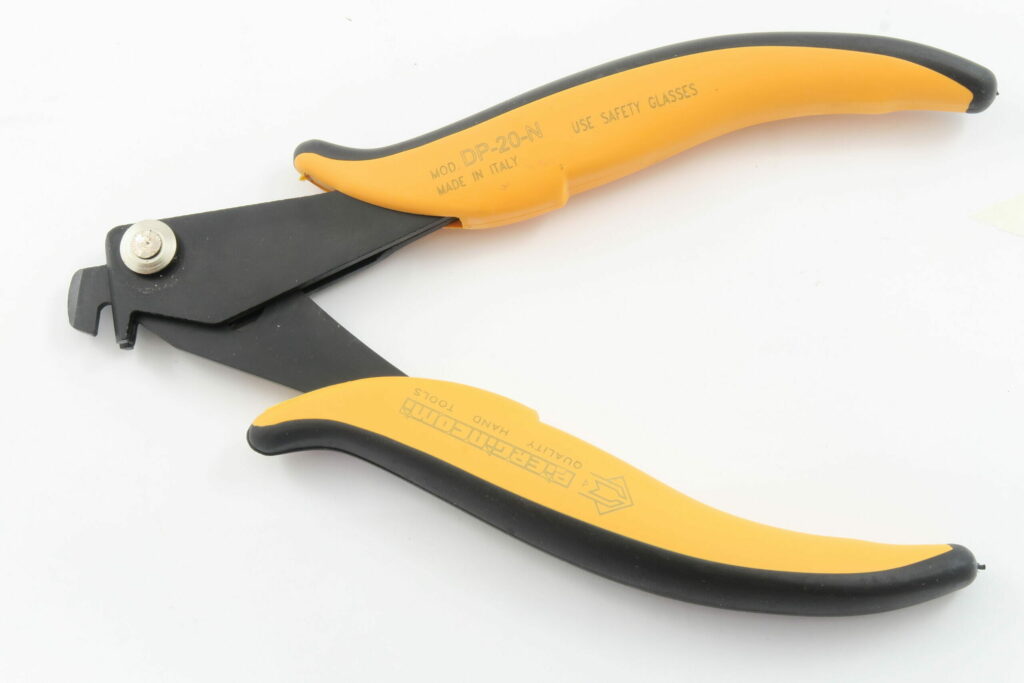

DP 20 N
DP 20 N D
3kg
blade 2.0mm (.078”)
90g
147mm
DP 20 N
DP 20 N D
3kg
blade 2.0mm (.078”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 3kg.
– Blade thickness: 2.0mm

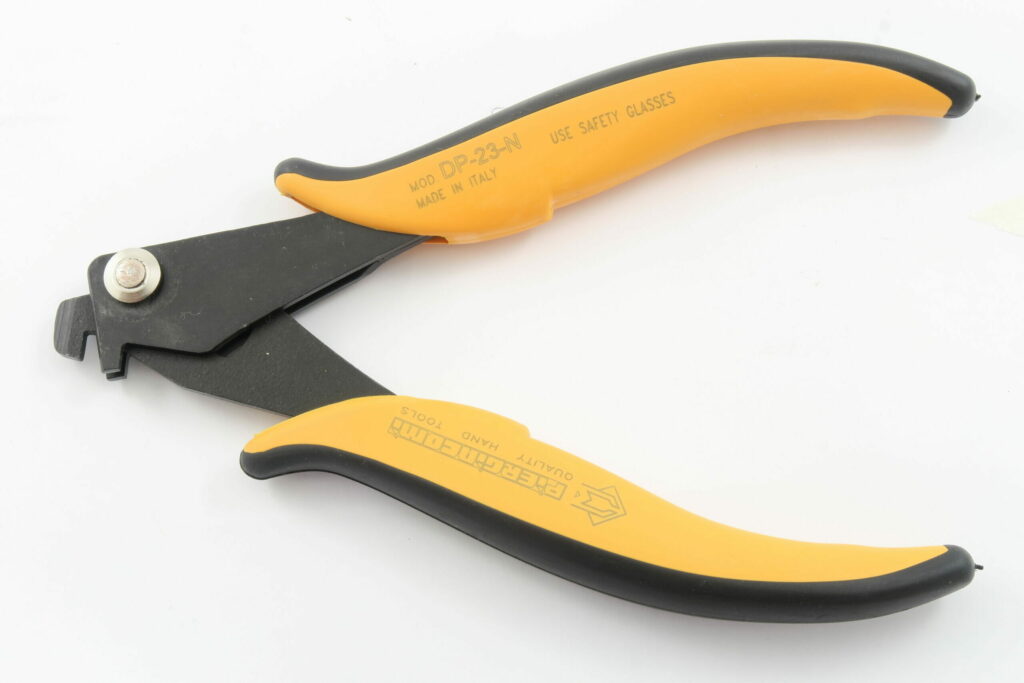

DP 23 N
DP 23 N D
7kg
blade 2.3mm (.090”)
90g
147mm
DP 23 N
DP 23 N D
7kg
blade 2.3mm (.090”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 7kg.
– Blade thickness: 2.3mm

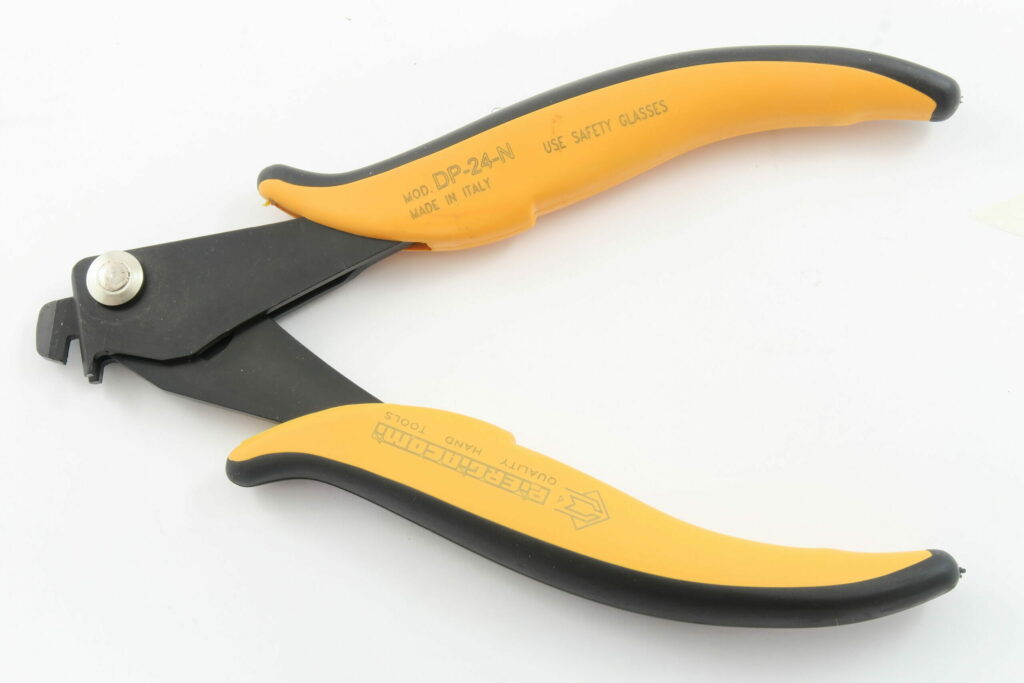

DP 24 N
DP 24 N D
7kg
blade 2.4mm (.094”)
90g
147mm
DP 24 N
DP 24 N D
7kg
blade 2.4mm (.094”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 7kg.
– Blade thickness: 2.4mm

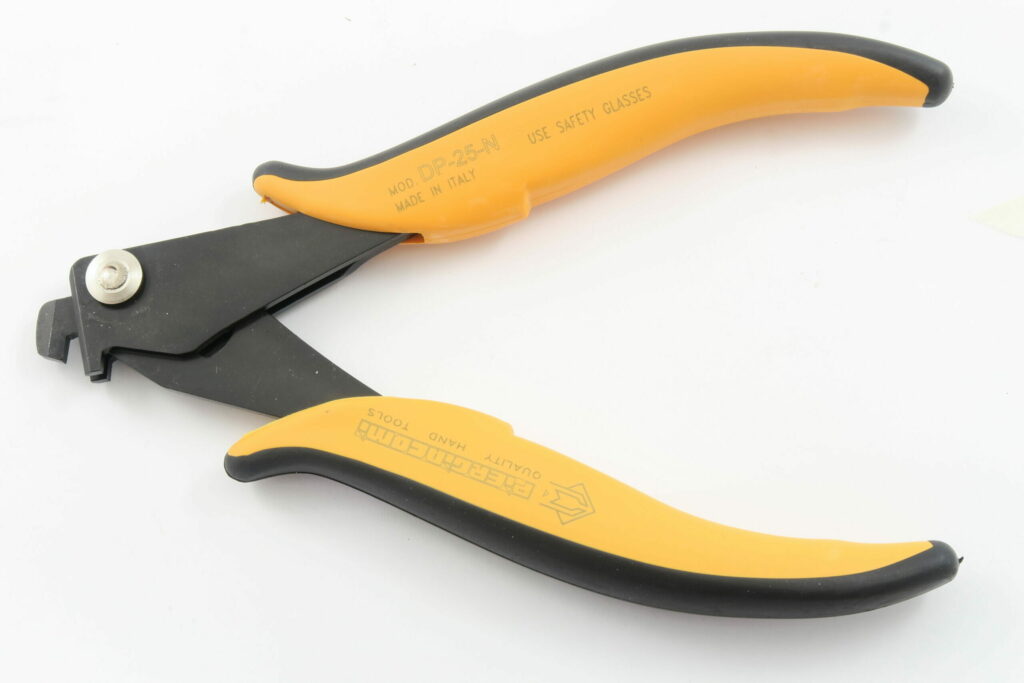

DP 25 N
DP 25 N D
7kg
blade 2.5mm (.098”)
90g
147mm
DP 25 N
DP 25 N D
7kg
blade 2.5mm (.098”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS:
– Maximum PCB thickness: 1.6mm
– Minimum isthmus distance: 11mm
– Maximum cutting force 7kg.
– Blade thickness: 2.5mm
