Cutters
| ORDER CODE | TIP | ESD ORDER CODE | LENGTH (MM) | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|---|---|---|---|---|---|
| TR 20 50 M |  | TR 20 50 M D | 131mm | 2 | Ø 0.64mm | 22 awg |
| TR 20 TM | | TR 20 TM D | 129mm | 2 | Ø 0.64mm | 22 awg |
| TR 20 VM |  | TR 20 VM D | 132mm | 2 | Ø 0.64mm | 22 awg |
| TR 25 50 | | TR 25 50 D | 135mm | 5 | Ø 1.30mm | 16 awg |
| TR 25 50 X (inox) | | TR 25 50 X D | 135mm | 5 | Ø 1.30mm | 16 awg |
| TR 30 T | | TR 30 T D | 137mm | 2.5 | Ø 1.02mm | 18 awg |
| TR 30 V | | TR 30 V D | 144mm | 3 | Ø 1.02mm | 18 awg |
| TR 5000 V | | TR 5000 V D | 147mm | 3.5 | Ø 1.30mm | 16 awg |
| ORDER CODE | TIP | HEAD | CUTTING FORCE (KG) | COPPER WIRE (⌀ MM) | COPPER WIRE (AWG) |
|---|

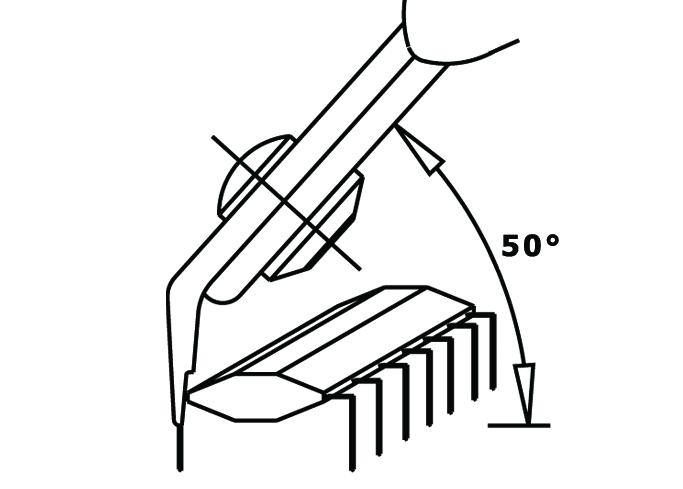

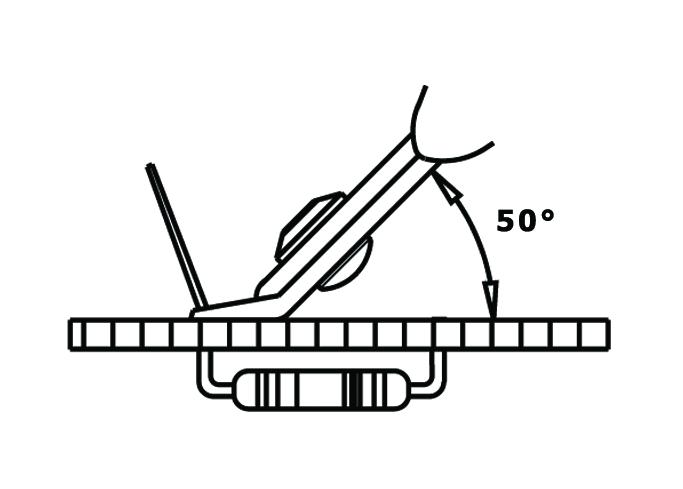

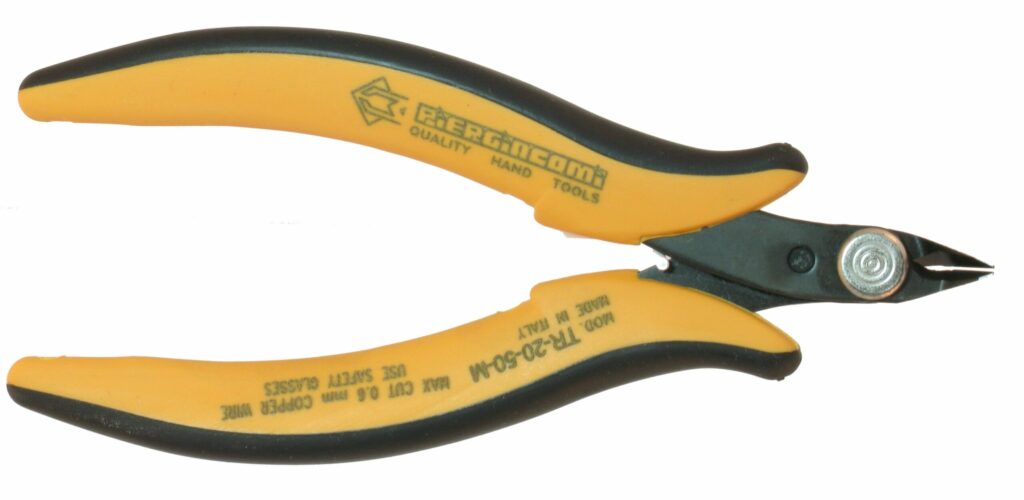

Flush cutter with particularly thin head and cutting edges angled at 50°, ideal for hard-to-reach areas. Steel thickness 2 mm. Tool length 131 mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 20 50 M D)

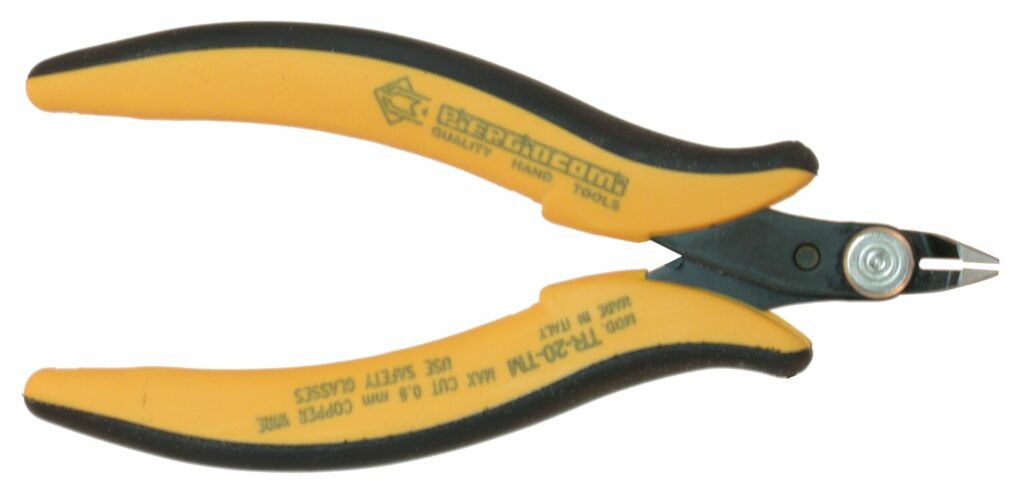

TR 20 TM
Micro
2
Ø 0.64mm
22 awg
TR 20 TM
Micro
2
Ø 0.64mm
22 awg
Flush end cutter. With small cutting edges, angled at 60°, ideal for hard-to-reach areas. Steel thickness 2 mm. Tool length 132 mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 20 VM D)

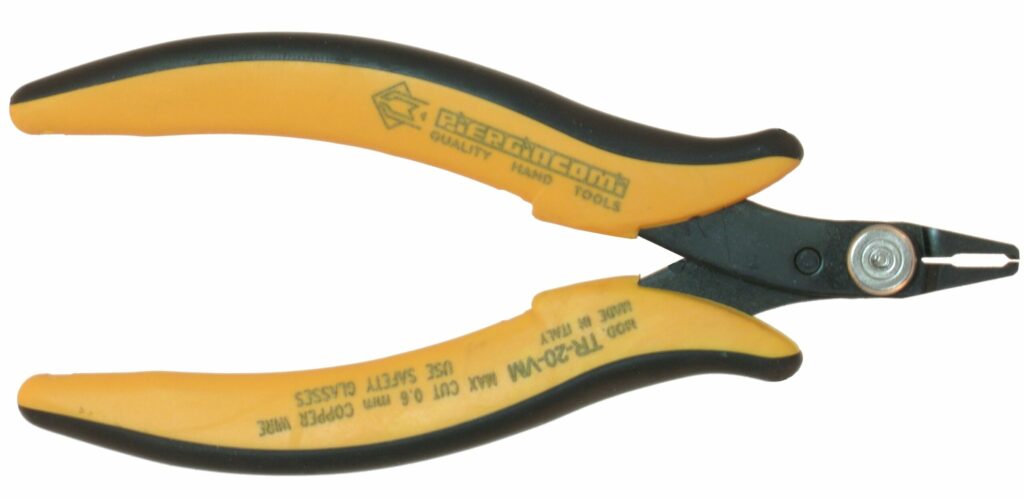

TR 20 VM
Micro
2
Ø 0.64mm
22 awg
TR 20 VM
Micro
2
Ø 0.64mm
22 awg

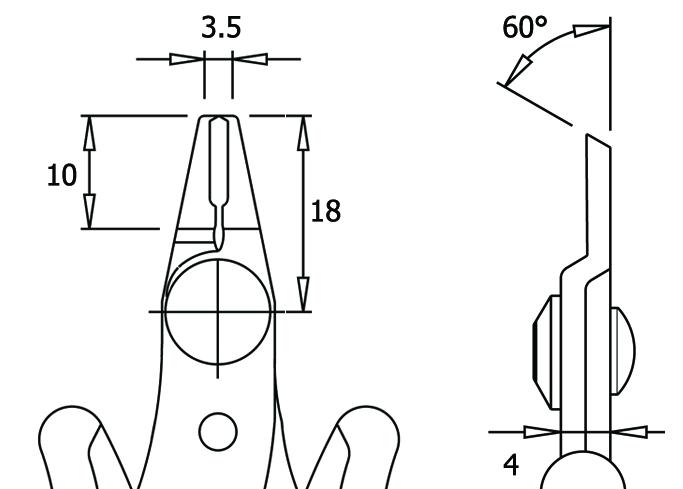

Flush end cutter. With small cutting edges, angled at 60°, ideal for hard-to-reach areas. Steel thickness 2 mm. Tool length 132 mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 20 VM D)

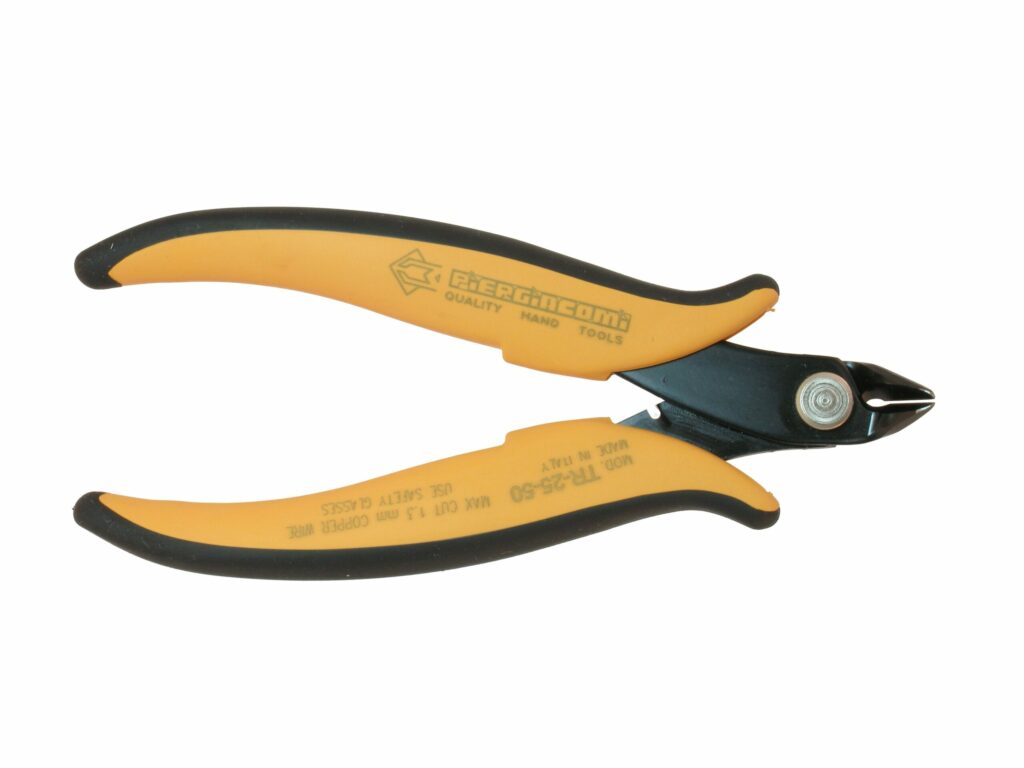

TR 25 50
Medium
5
Ø 1.30mm
16 awg
TR 25 50
Medium
5
Ø 1.30mm
16 awg

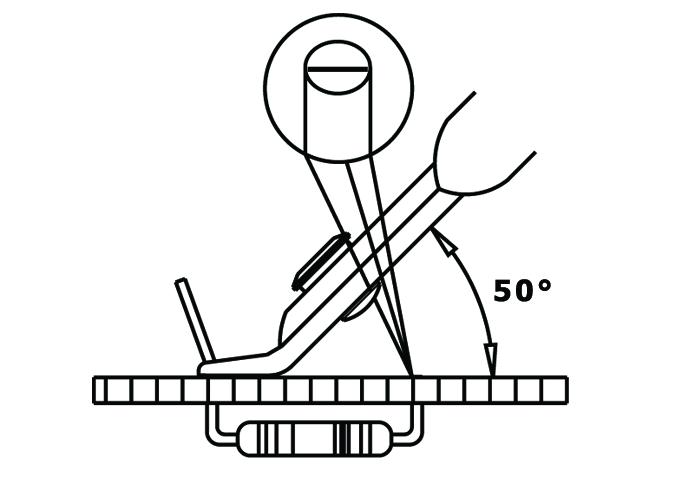

50° angled flush cutter for specific electronics applications. Steel thickness 2.5 mm. Tool length 135 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 50 D)

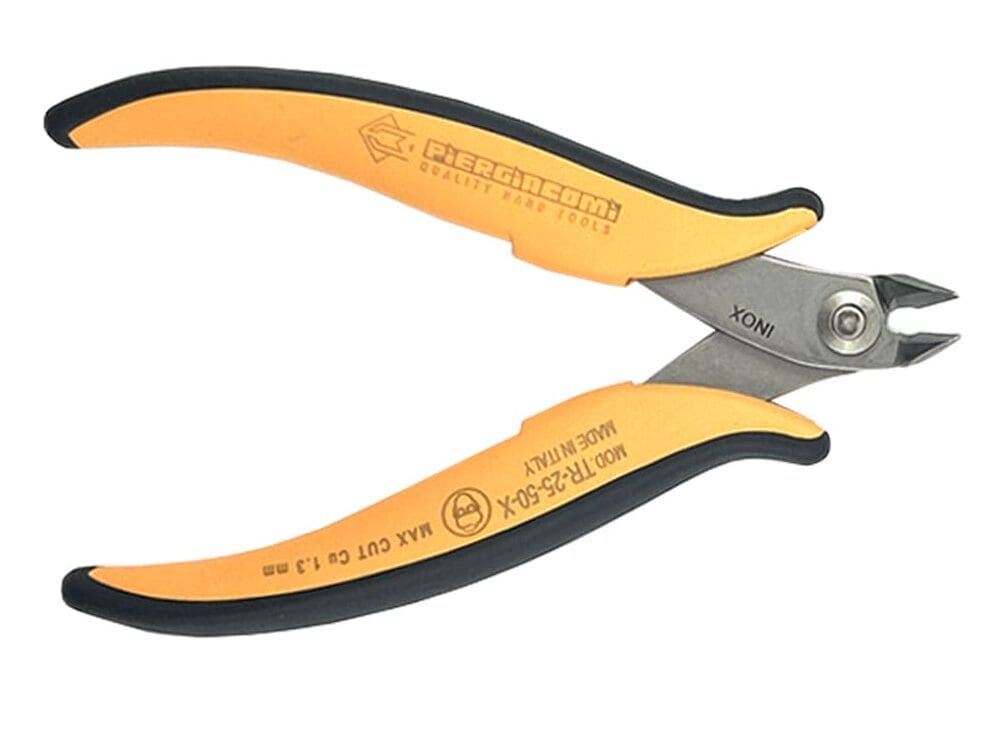

TR 25 50 X (inox)
Medium
5
16 awg
TR 25 50 X (inox)
Medium
5
Ø 1.30mm
16 awg
50° angled flush cutter for specific electronics applications. Tool length 135 mm. Grip model St.
Made by stainless steel offers an high resistance to corrosion, is wet resistant and has an high durability. Thanks to its smooth surface, stainless steel, tends to retain polluting impurities in smaller amounts than others so that it is suitable to be used for applications in clean-room, electronics applied to medical industry and fish industry as well.
Inox steel thickness 2.5 mm.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 50 X D)60° angled oblique end cutter. Specially designed for cutting component leads at 1.5 mm from the surface. Steel thickness 3 mm. Tool length 144 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 15 V D)

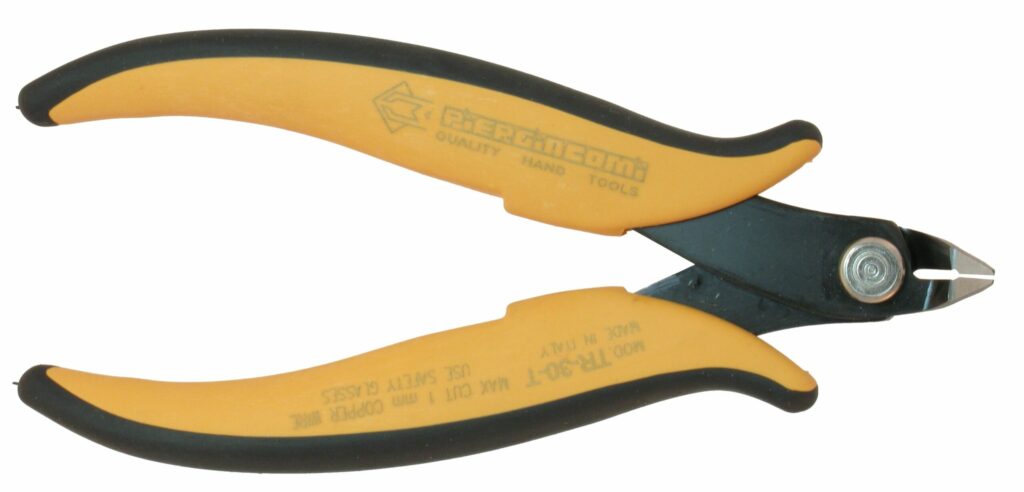

TR 30 T
Medium
2.5
Ø 1.02mm
18 awg
TR 30 T
Medium
2.5
Ø 1.02mm
18 awg
Ergonomic high-precision 50° angled IC pin cutter. Steel thickness 3 mm. Tool length 137 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 T D)

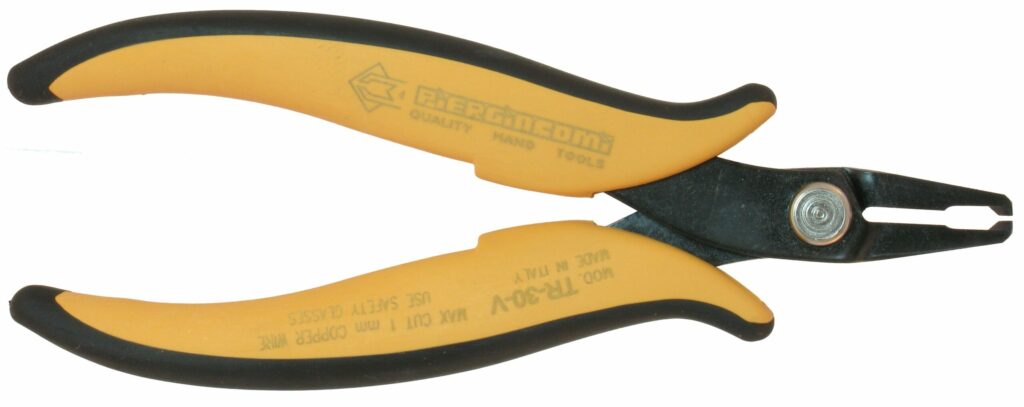

TR 30 V
Medium
3
Ø 1.02mm
18 awg
TR 30 V
Medium
3
Ø 1.02mm
18 awg

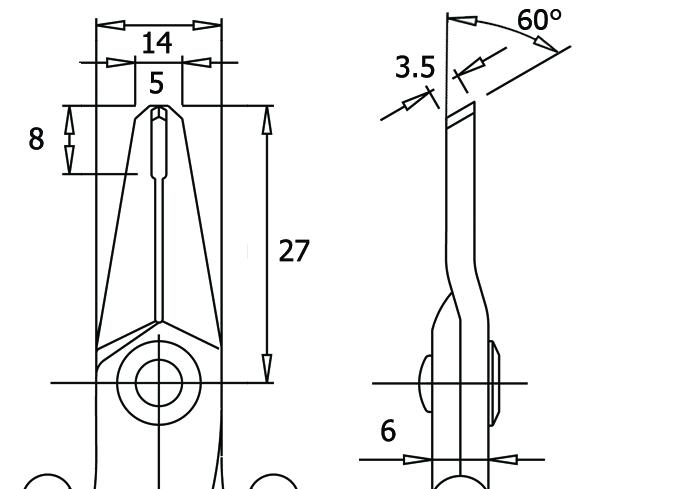

Flush end cutter for clean cuts. The special 60° angle makes the tool ideal for hard-to-reach areas. Steel thickness 3 mm. Tool length 144 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 V D)

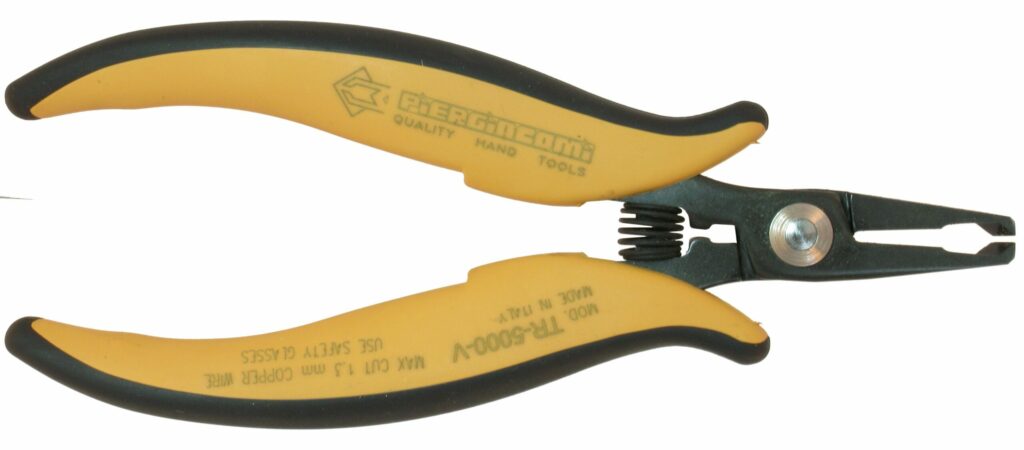

TR 5000 V
Medium
3.5
Ø 1.30mm
16 awg
TR 5000 V
Medium
3.5
Ø 1.30mm
16 awg

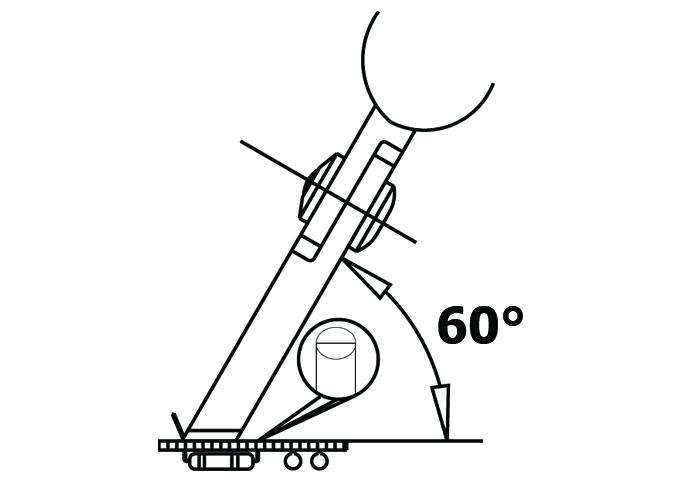

Special 60° angled flush end cutter. Ideal for hard-to-each areas. Similar to TR 30 V, but with 5mm steel thickness. Tool length 147mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 V D)
