Cutters
| ORDER CODE | CUTTING FORCE (KG) | WEIGHT (G) | PITCH ADJUSTMENT |
|---|
STR 50
6
100 g
min 3 – max 50
STR 50
6
100g
min 3 – max 50

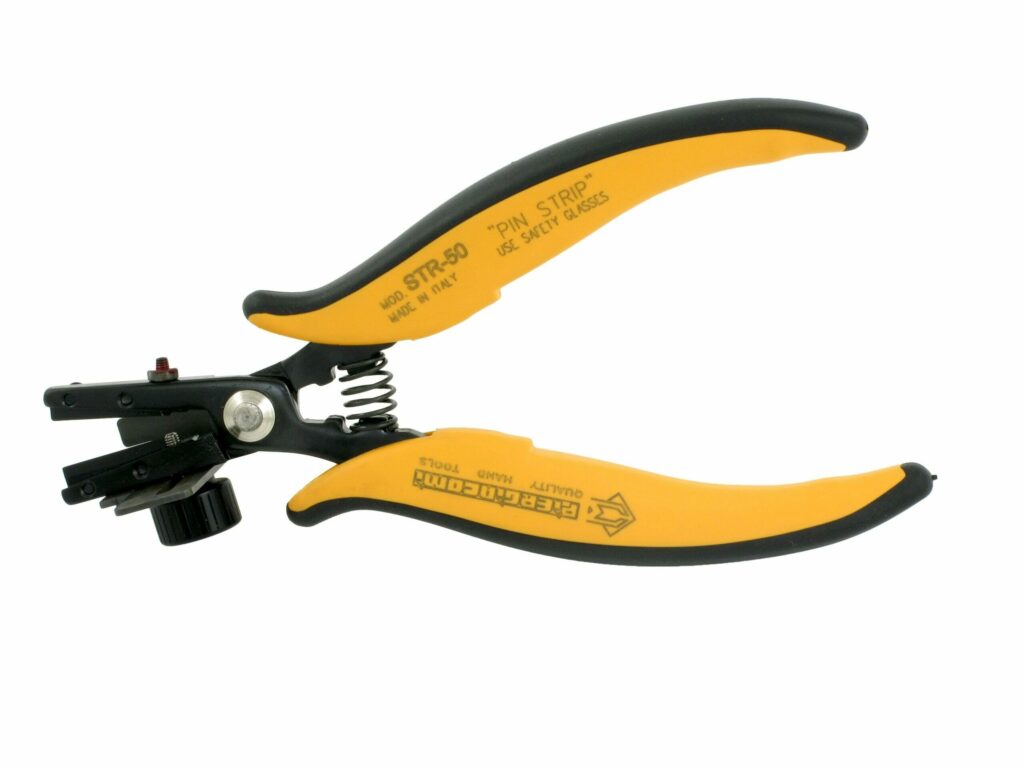

Special tool designed for cutting straight and angled PIN STRIPS.

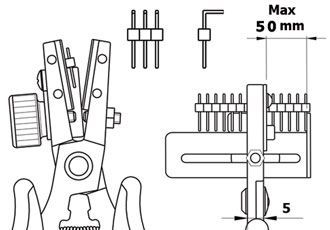

The adjustable stop allows setting the tool for different strip pitches (min. 3mm – max. 50mm). Cutting blade for angled pin strips included. It is possible to customise the adjustable stop’s length. Steel thickness 5mm. Total lenght 150mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code STR 50 D)
OPTIONAL: adjustable stop until to 100mm.
STR 50 K
STR 50 K

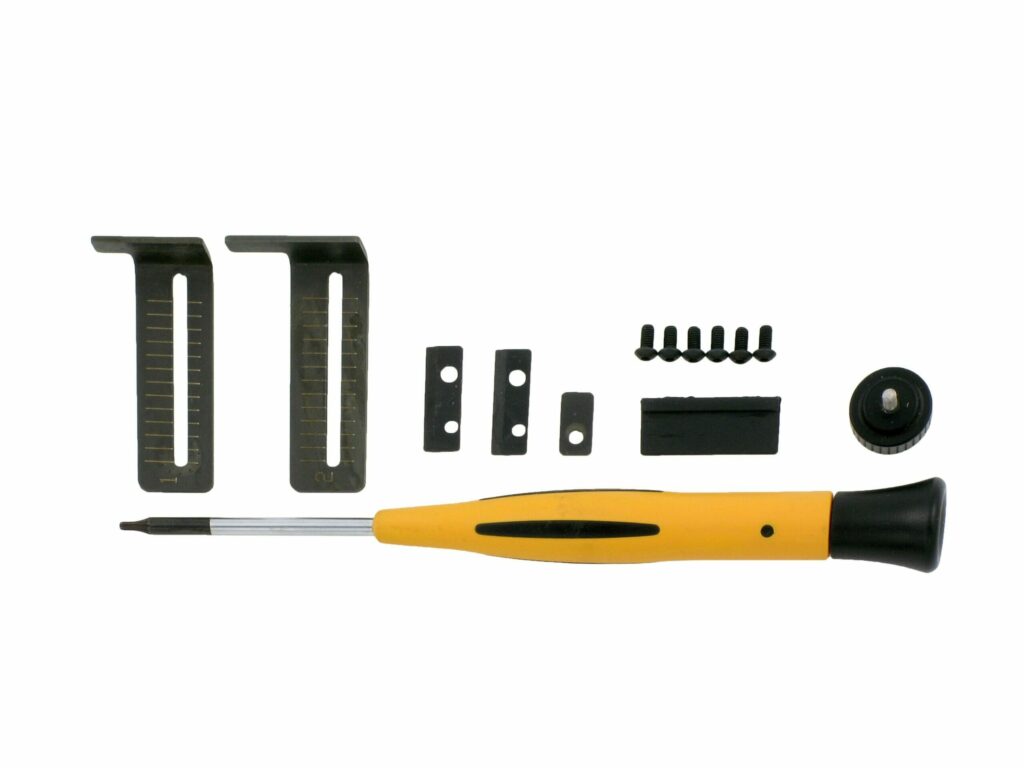

STR 50 Replacement kit.
On request, STR50 tool can be supplied together with a special kit useful for the general replacement of all wear parts.
NOTES:
The kit includes: adjustable stops, fixed reference stop, knob, cutting blade, fixing screw, screwdriver and a plastic tool for blade adjustment.
