Cutters
| ORDER CODE | TIP | ESD ORDER CODE | LENGTH (MM) | CUTTING FORCE (KG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) |
|---|---|---|---|---|---|---|
| TR 25 15 |  | TR 25 15 D | 138mm | 5 | Ø 1.30mm | 16 awg |
| TR 25 15 L | | TR 25 15 L D | 160mm | 3 | Ø 1.30mm | 16 awg |
| TR 30 10 |  | TR 30 10 D | 138mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 30 15 | | TR 30 15 D | 138mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 30 15 V |  | TR 30 15 V D | 144mm | 3 | Ø 1.02mm | 18 awg |
| TR 5000 10 | | TR 5000 10 D | 147mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 5000 13 | | TR 5000 13 D | 147mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 5000 15 | | TR 5000 15 D | 147mm | 5.5 | Ø 1.30mm | 16 awg |
| TR 5000 W |  | TR 5000 W D | 147mm | 3.5 | Ø 1.30mm | 16 awg |
| TR 5015 | | TR 5015 D | 138mm | 8 | Ø 1.60mm | 14 awg |
| TR 5020 | | TR 5020 D | 138mm | 8 | Ø 1.60mm | 14 awg |
| ORDER CODE | TIP | HEAD | CUTTING FORCE (KG) | COPPER WIRE (⌀ MM) | COPPER WIRE (AWG) |
|---|
TR 25 15
Medium
5
Ø 1.30mm
16 awg
TR 25 15
Medium
5
Ø 1.30mm
16 awg

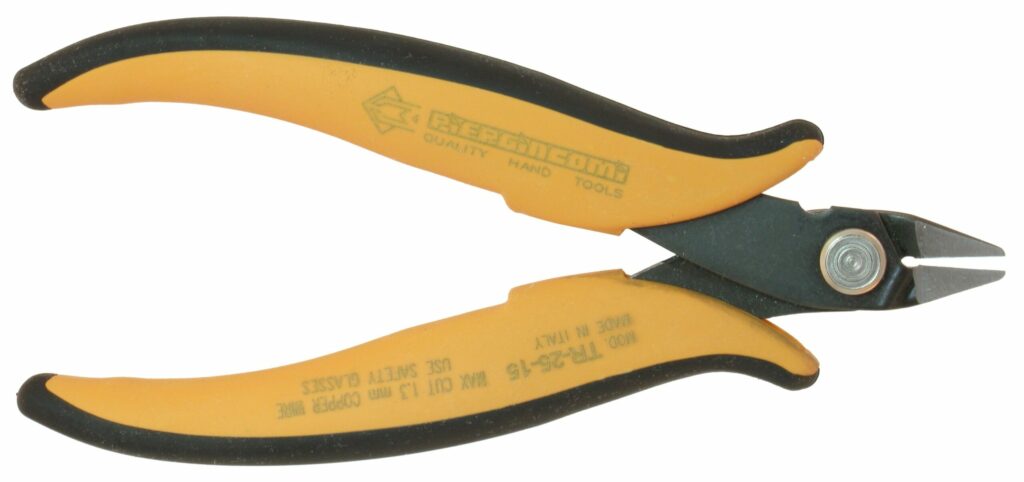

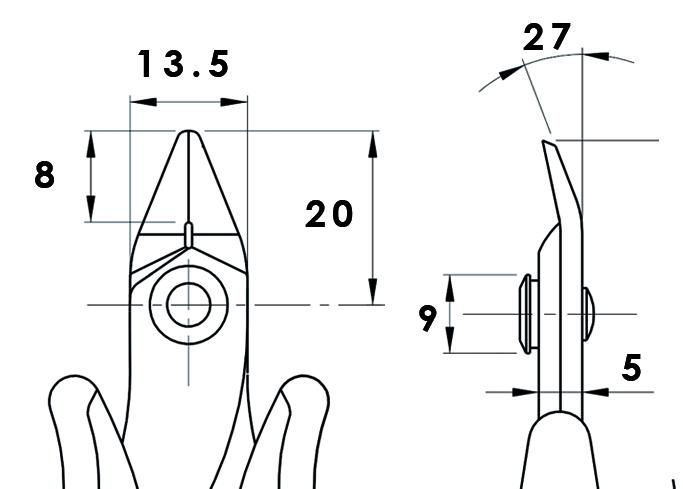

Reverse angle flush cutter. Terminal wire cut at 1.5 mm from the surface. Steel thickness 2.5 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 15 D)

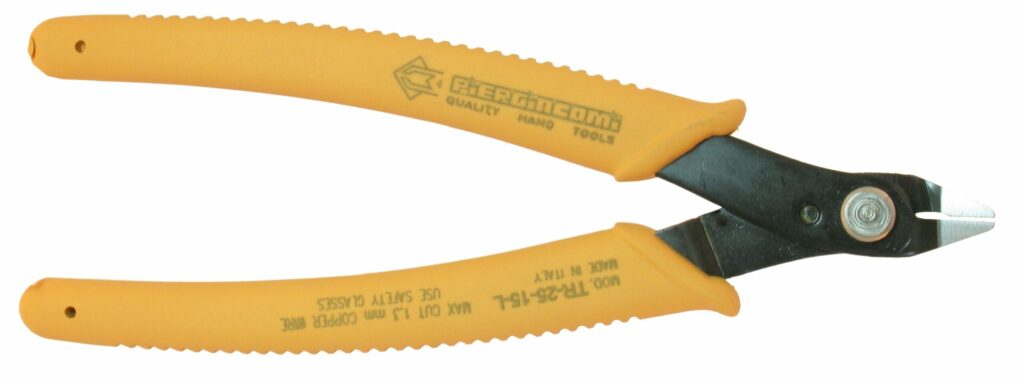

TR 25 15 L
Medium
3
Ø 1.30mm
16 awg
TR 25 15 L
Medium
3
Ø 1.30mm
16 awg

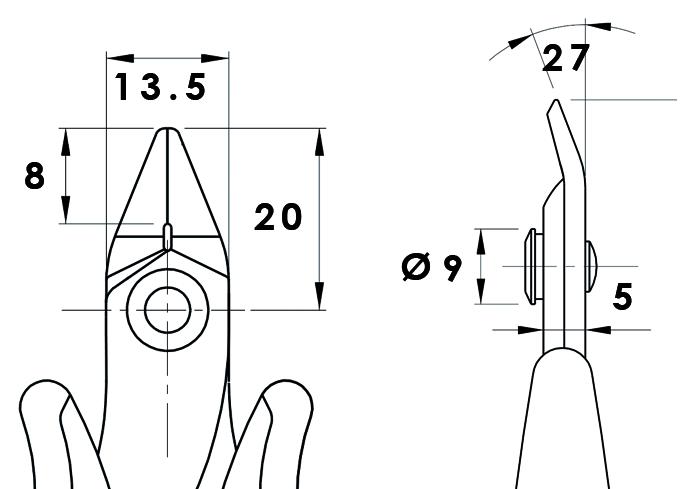

Reverse angle flush cutter. Terminal wire cut at 1.5 mm from the surface. Same characteristics as TR 2515, but designed with longer handles for reduced cutting effort. Steel thickness 2.5 mm. Tool length 160mm. Grip model L.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 25 15 L D)
TR 30 10
Medium
5.5
Ø 1.30mm
16 awg
TR 30 10
Medium
5.5
Ø 1.30mm
16 awg

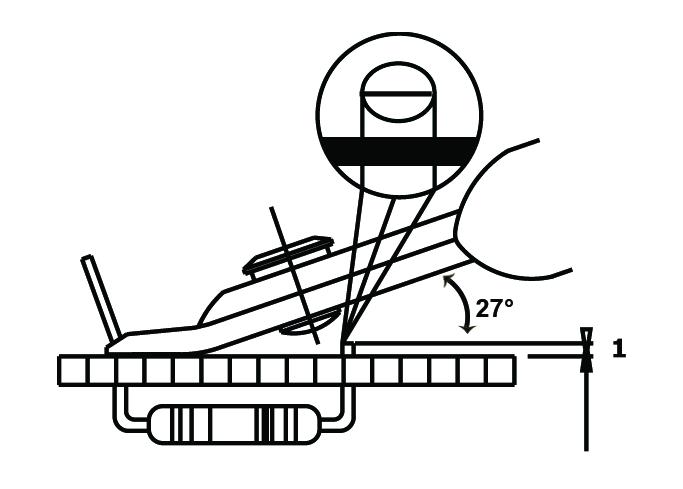

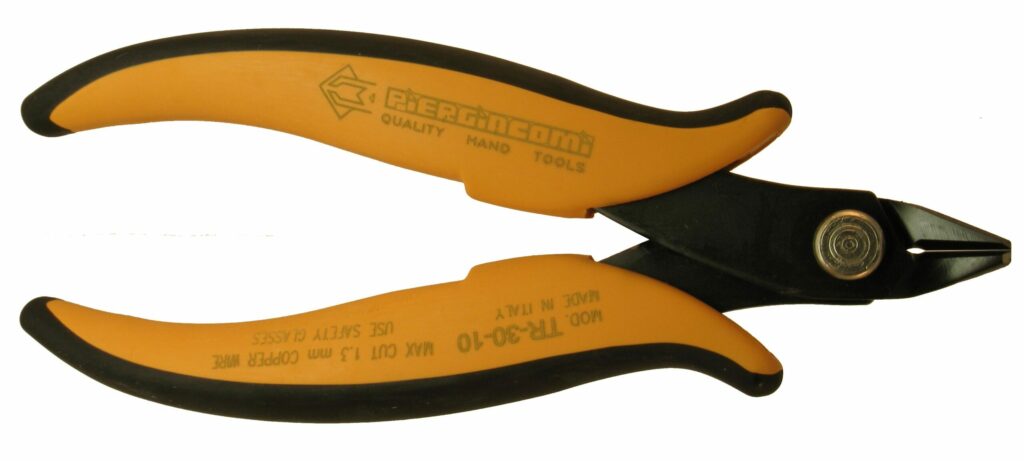

Tool for a clean, flush cut. Specially designed for cutting component leads at 1 mm from the surface. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 10 D)
TR 30 15
Medium
5.5
Ø 1.30mm
16 awg
TR 30 15
Medium
5.5
Ø 1.30mm
16 awg

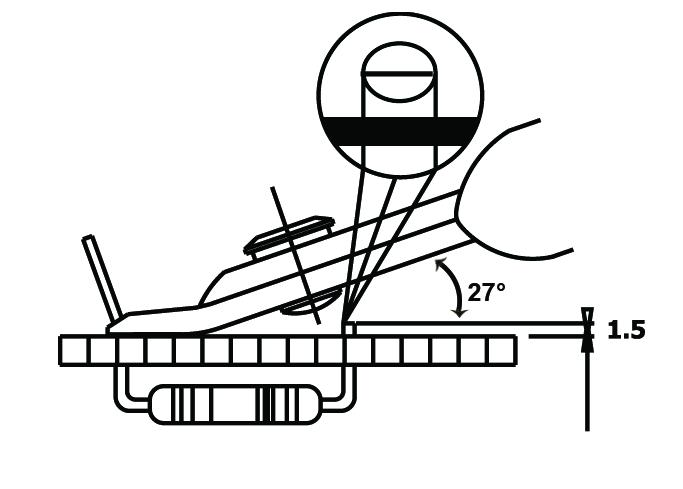

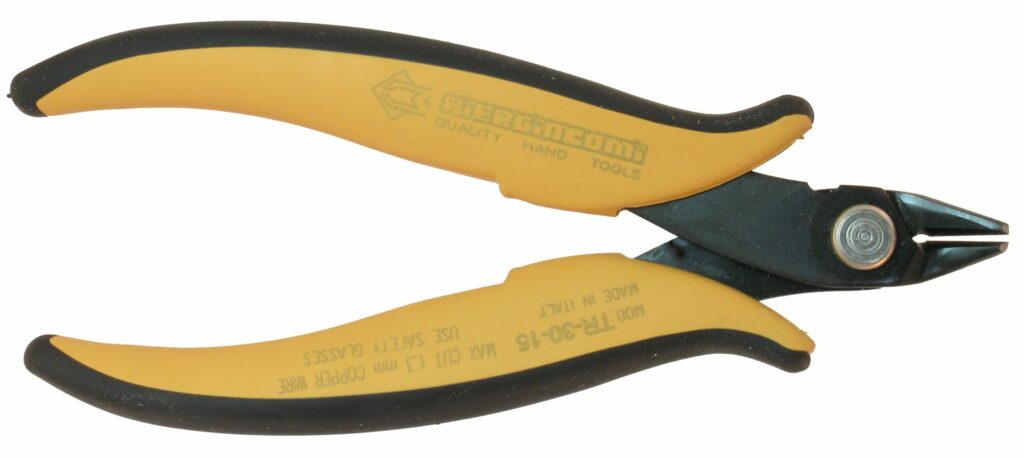

Tool for a clean, flush cut. Specially designed for cutting component leads at 1.5 mm from the surface. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 15 D)
TR 30 15 V
Medium
3
Ø 1.02mm
18 awg
TR 30 15 V
Medium
3
Ø 1.02mm
18 awg

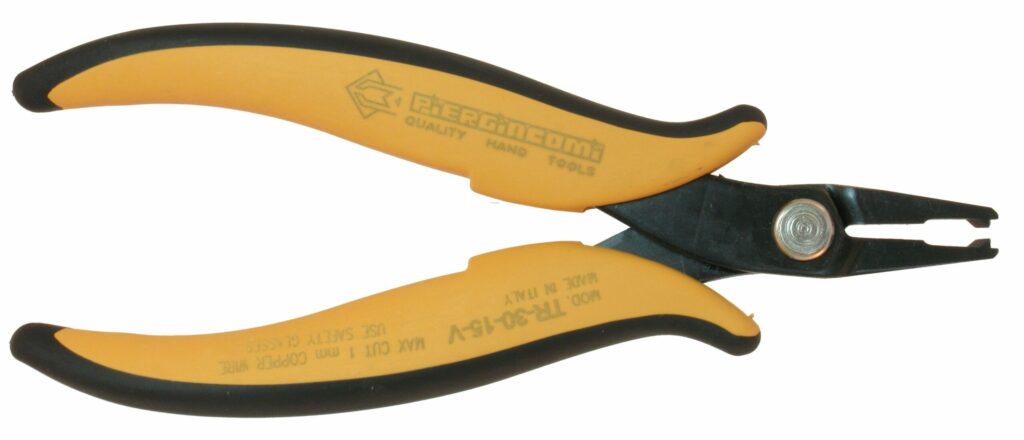

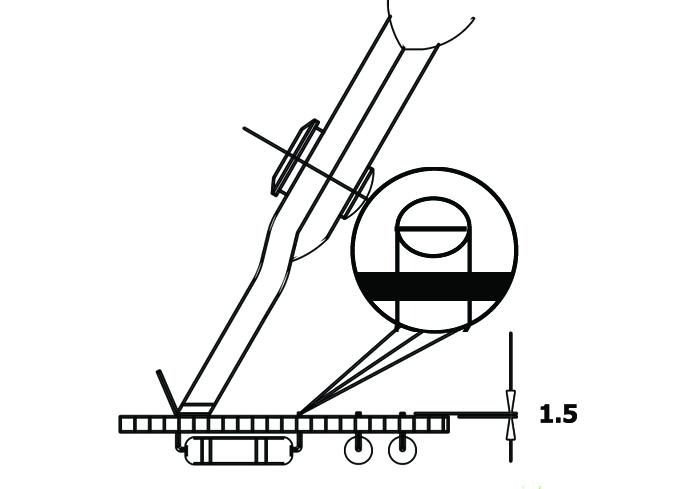

60° angled oblique end cutter. Specially designed for cutting component leads at 1.5 mm from the surface. Steel thickness 3 mm. Tool length 144 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 30 15 V D)

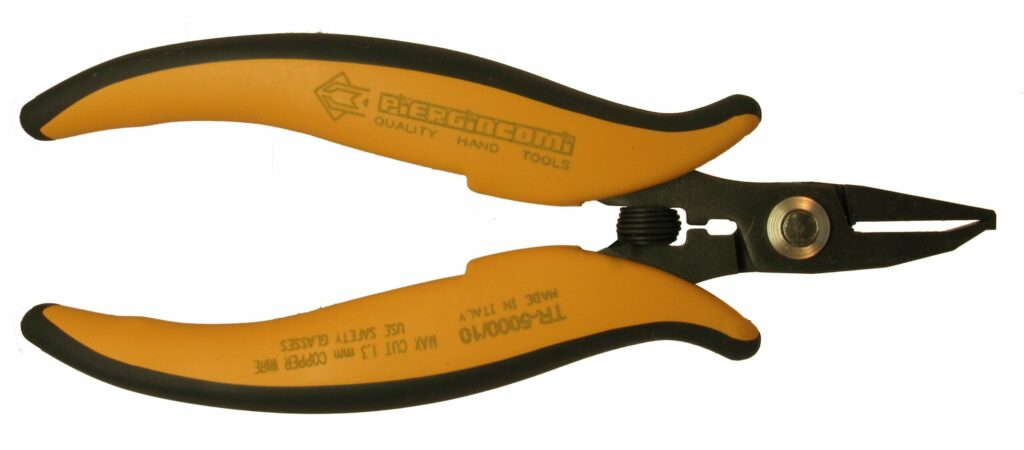

TR 5000 10
Medium
5.5
Ø 1.30mm
16 awg
TR 5000 10
Medium
5.5
Ø 1.30mm
16 awg

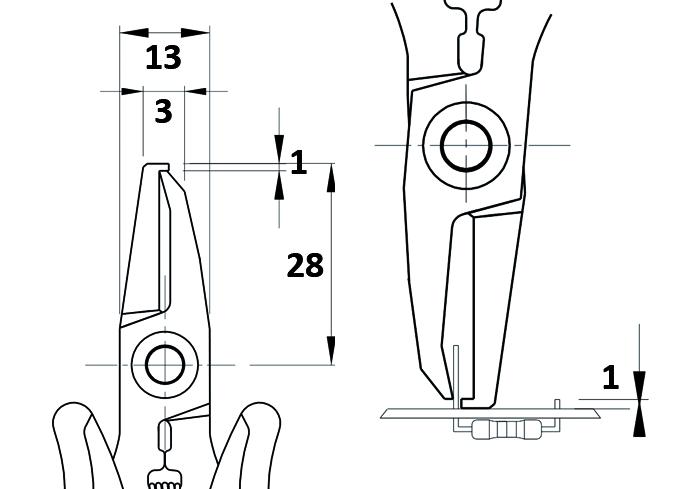

End cutter, ideal for hard-to-reach areas. It cuts the component lead at 1 mm from the surface. Steel thickness 5 mm. Tool length 147 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 10 D)

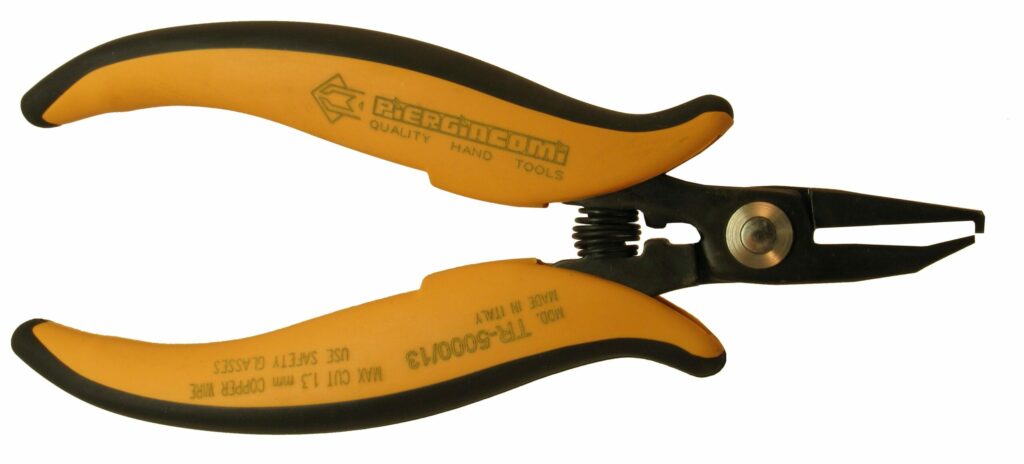

TR 5000 13
Medium
5.5
Ø 1.30mm
16 awg
TR 5000 13
Medium
5.5
Ø 1.30mm
16 awg

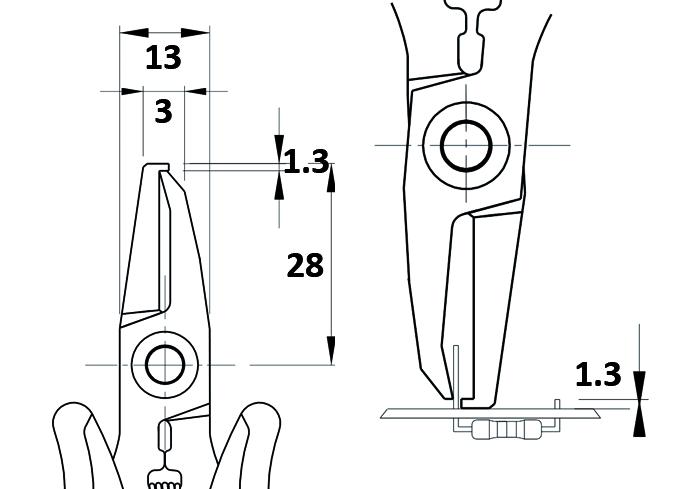

End cutter, ideal for hard-to-reach areas. It cuts the component lead at 1.3 mm from the surface. Steel thickness 5 mm. Tool length 147mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 13 D)

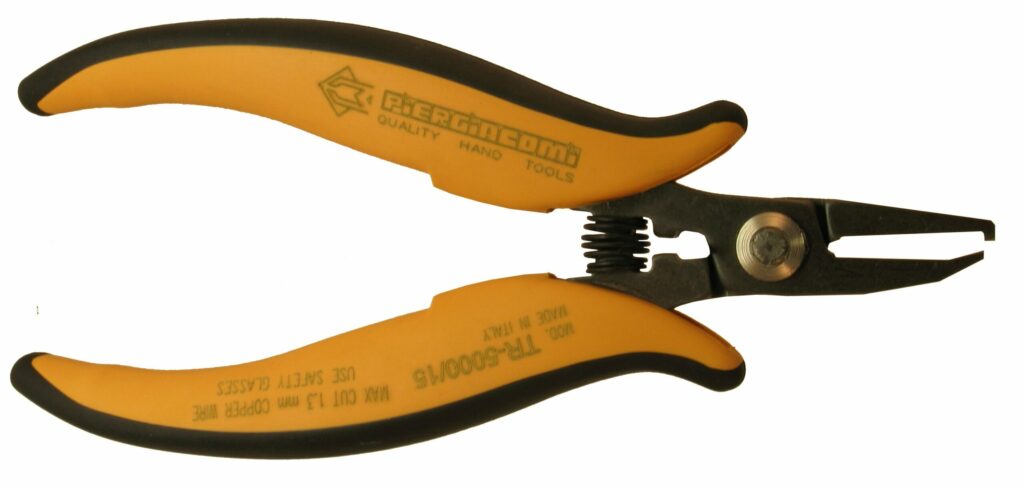

TR 5000 15
Medium
5.5
Ø 1.30mm
16 awg
TR 5000 15
Medium
5.5
Ø 1.30mm
16 awg
End cutter, ideal for hard-to-reach areas. It cuts the component lead at 1.5 mm from the surface. Steel thickness 5 mm. Tool length 147mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 15 D)

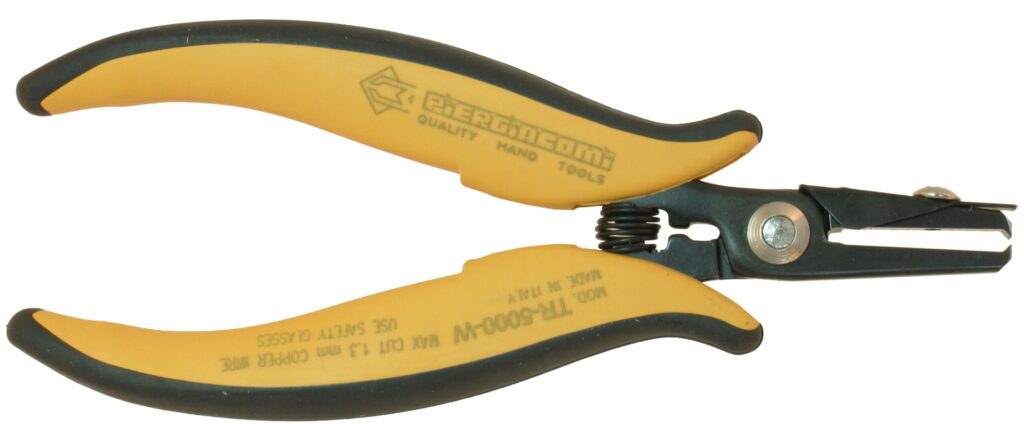

TR 5000 W
Medium
3.5
Ø 1.30mm
16 awg
TR 5000 W
Medium
3.5
Ø 1.30mm
16 awg

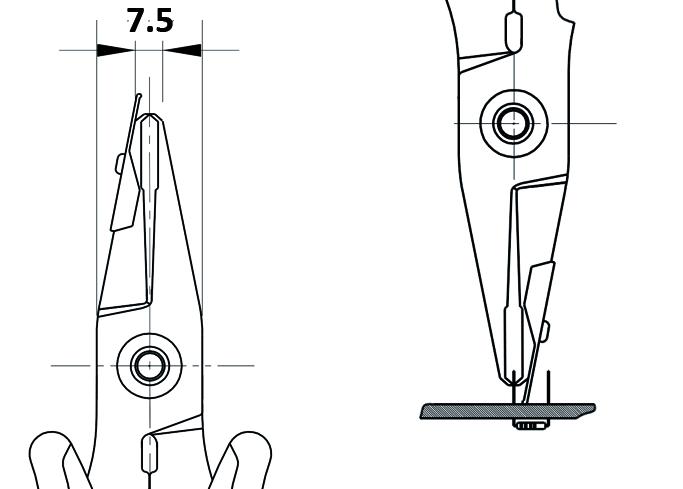

Flush end cutter, ideal for hard-to-reach areas. Adjustable standoff length (from 0 to 5mm). Steel thickness 5 mm. Total length 147 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5000 W D)
TR 5015
Medium
8
Ø 1.60mm
14 awg
TR 5015
Medium
8
Ø 1.60mm
14 awg

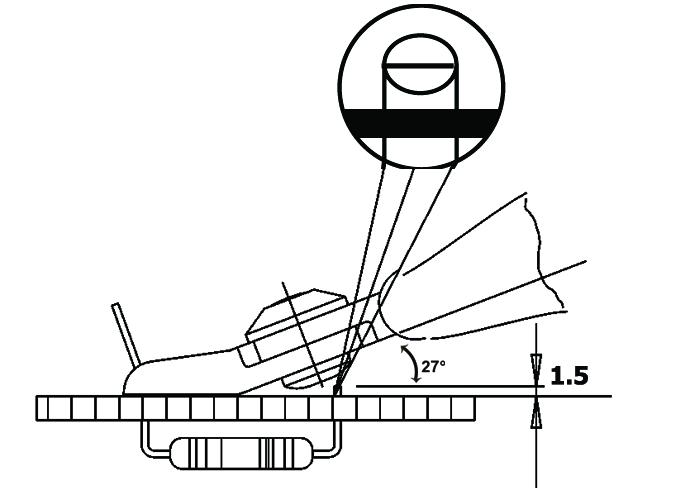

Tool for a clean and flush cut. Specially designed for cutting component leads at 1.5 mm from the surface. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5015 D)

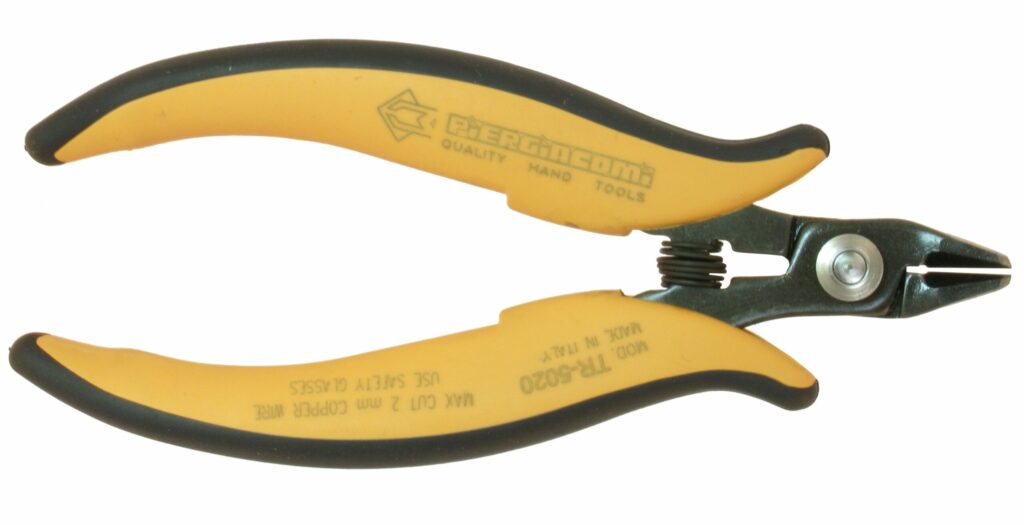

TR 5020
Medium
8
Ø 1.60mm
14 awg
TR 5020
Medium
8
Ø 1.60mm
14 awg

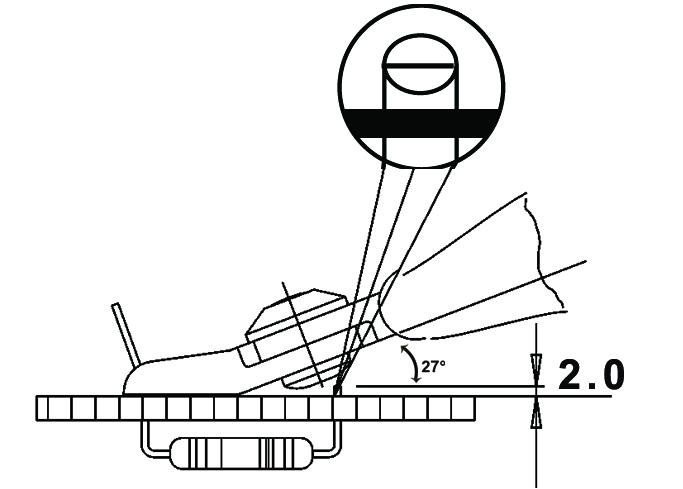

Tool for a clean and flush cut. Specially designed for cutting component leads at 2 mm from the surface. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code TR 5020 D)
