Cutters
| ORDER CODE | TIP | ESD ORDER CODE | Ø MM | AWG | WEIGHT (G) | LENGTH (MM) | NOTES |
|---|---|---|---|---|---|---|---|
| CS 30 X |  |
CS 30 X D | Ø1.63 | 14 | 82g | 150mm | Shears and pliers |
| CS 30 XZ | |
CS 30 XZ D | Ø1.63 | 14 | 82g | 150mm | Shears for soldering iron tips |
| CSF 30 | |
CSF 30 D | w0.4/s1.3* | w26/s16* | 80g | 144mm | Shears and wire stripper |
| CSF 30 S | |
CSF 30 S D | 0.4+1.0 | 26-18 | 80g | 144mm | Adjustable shears / wire stripper |
| CSF 55/4 | |
CSF 55/4 D | w4/s10* | w6/s000* | 130g | 173mm | Combo pliers: cable shears-wire stripper |
| CSP 30.1 | |
CSP 30.1 D | 0.25+0.81 | 30-20 | 102g | 165mm | Shears, wire stripper and pliers |
| CSP 30.10 | |
CSP 30.10 D | 1-6mm² | - | 102g | 165mm | Shears, wire stripper and pliers |
| CSP 30.2 | |
CSP 30.2 D | 0.81+2.59 | 20-10 | 102g | 165mm | Shears, wire stripper and pliers |
| CSP 30.3 | |
CSP 30.3 D | Ø max 10 | 000 | 102g | 165mm | Cable cutting pliers |
| CSP 30.7 | |
CSP 30.7 D | 0.4-1.3 | - | 102g | 165mm | Shears, wire stripper and pliers |
| CSP 30.9 | |
CSP 30.9 D | 0.64 | 22 | 102g | 165mm | Shears, wire stripper and pliers |
| ORDER CODE | TIP | WEIGHT (G) |
|---|

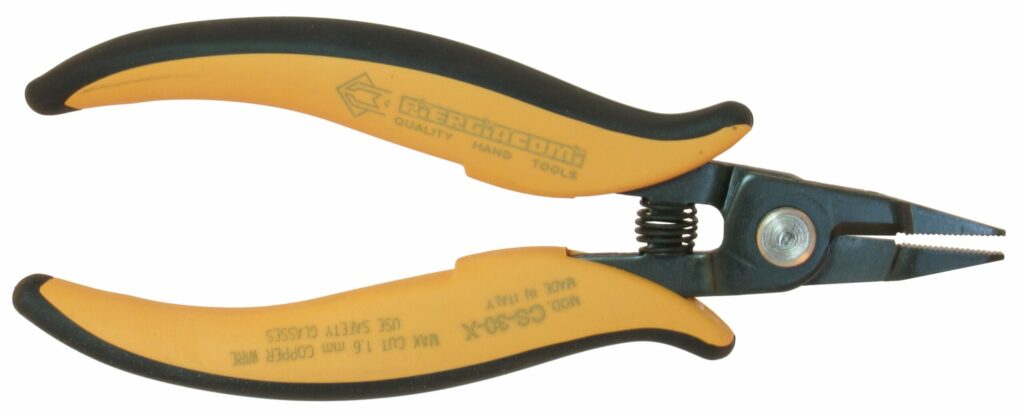

CS 30 X
82 g
CS 30 X
82 g

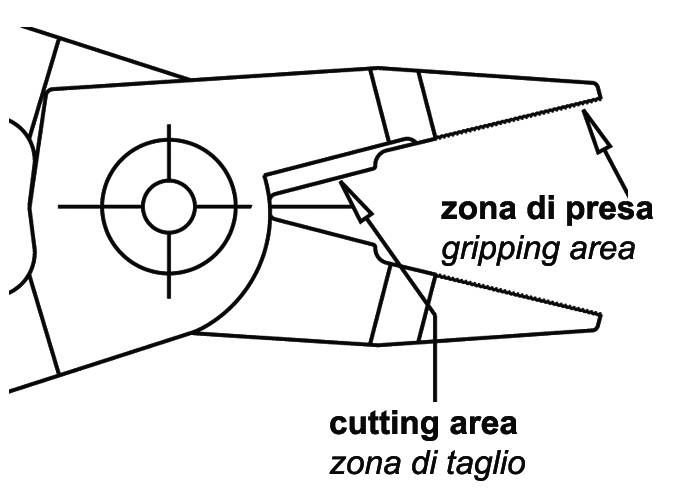

Shears and pliers in one tool; designed for applications that require both functions. Steel thickness 3 mm. Grip model St.
Cutting capacity (soft wire): Ø 1.63mm – 14 awg
Also available in the following version:
– with ESD-safe handles in grey/black (code CS 30 X D)

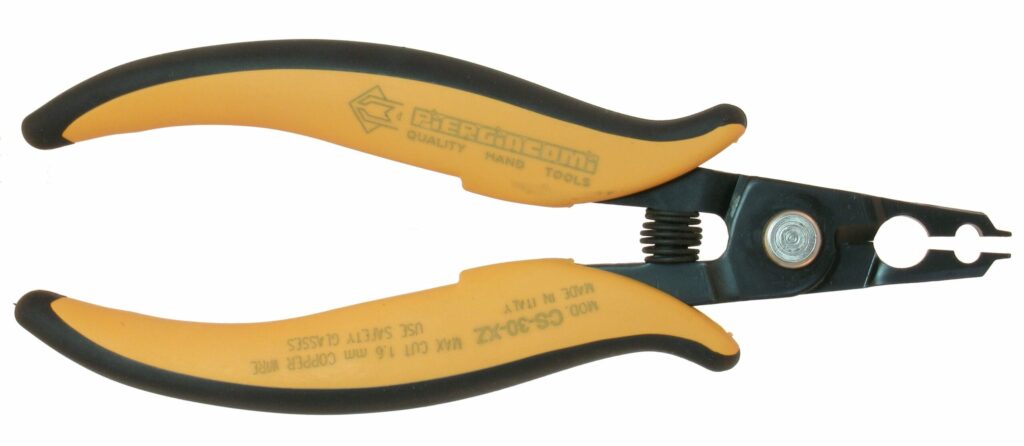

CS 30 XZ
82 g
CS 30 XZ
82 g
Special all-purpose shears. Steel thickness 3 mm. Grip model St.
Cutting capacity (soft wire): Ø 1.63mm – 14 awg
1) the upper part of the blade can be used as a screwdriver (tip thickness 1.6mm=(0.8+0.8mm) to loosen the screw in the soldering iron;
2) the two holes can be used to remove two different tip sizes, even if they have reached a high temperature (grip area: Ø8.6mm and 4mm);
3) the cutting section is used to cut the desoldering braid.
Also available in the following version:
– with ESD-safe handles in grey/black (code CS 30 XZ D)

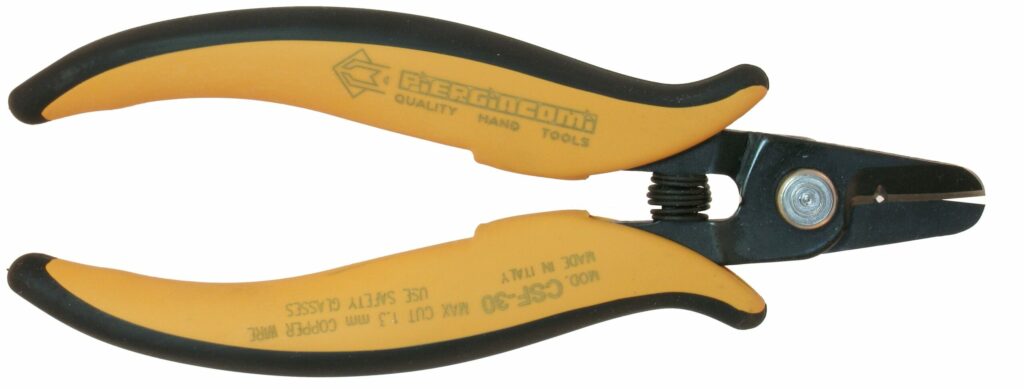

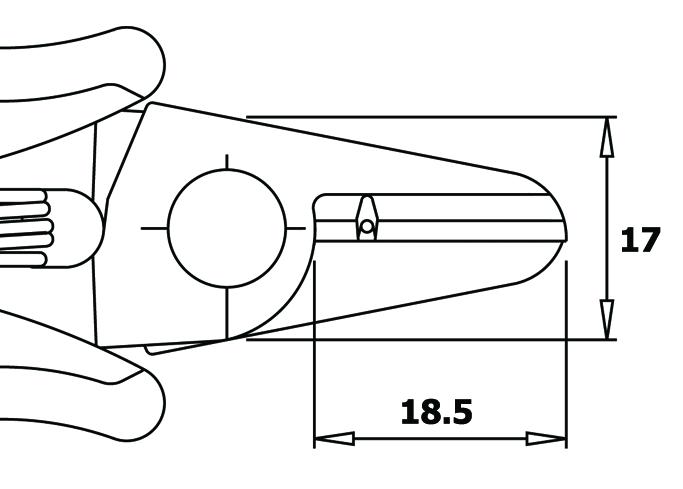

CSF 30
80 g
CSF 30
80 g
All-purpose tool that can be used as both shears (Ø 1.3mm-16 AWG) and wire strippers (Ø 0.4mm-26 awg). Steel thickness 3mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSF 30 D)

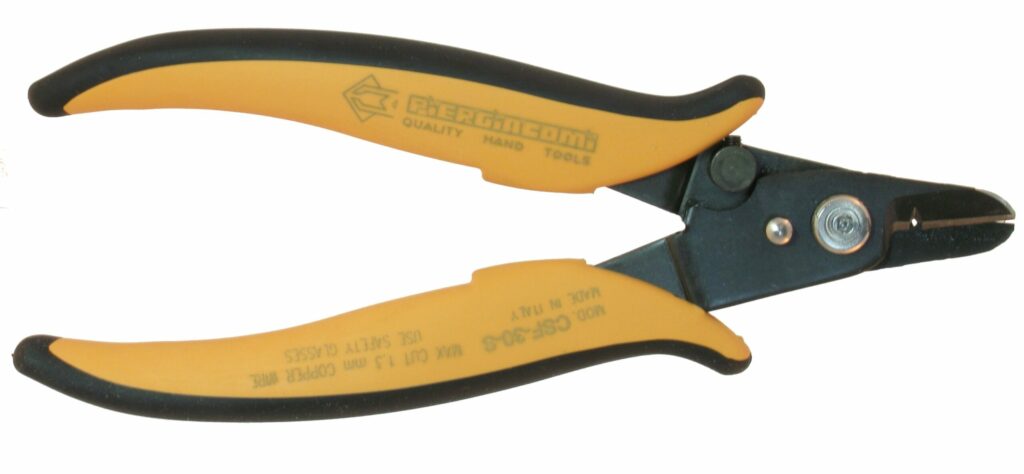

CSF 30 S
80 g
CSF 30 S
80 g

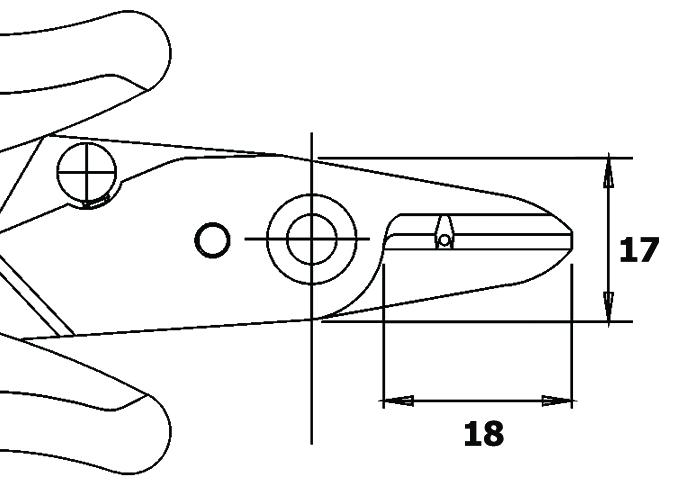

Adjustable shears and wire stripper for wires from Ø 0.4 to 1mm (26–18 awg). Steel thickness 3mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSF 30 S D)
AVAILABLE WHILE STOCKS LAST.

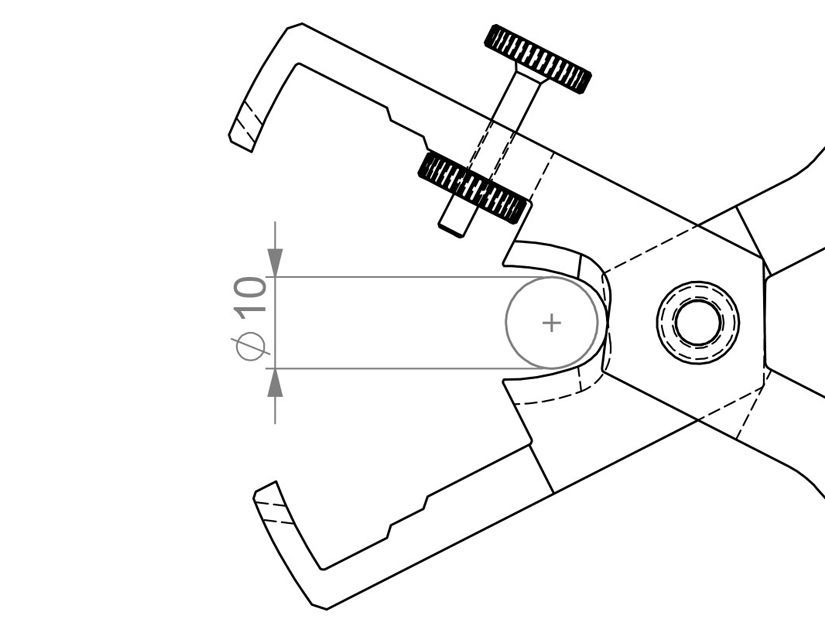

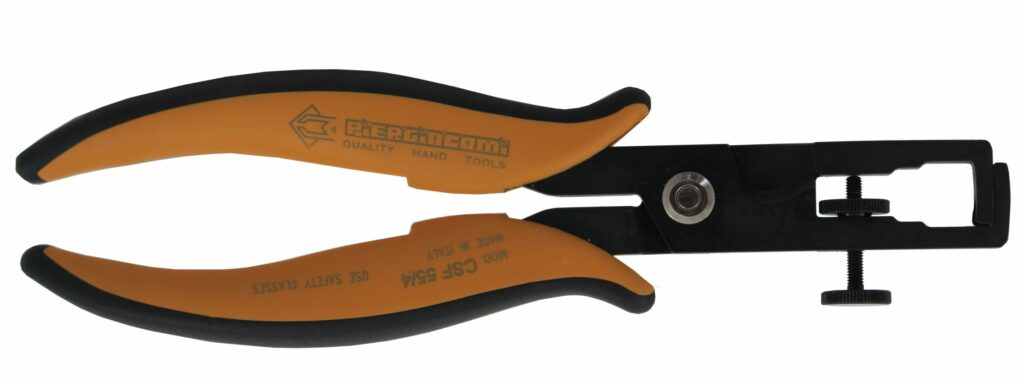

CSF 55/4
130 g
CSF 55/4
130 g
All-purpose tool that can be used as shears for Cu or Al cables (max Ø 10mm – 000 awg) and as adjustable wire stripper (max Ø 4mm – 6 awg) using the knurled screw and the lock nut. The stripping length can be adjusted using the 11 mm and 16 mm notches on the inside of the jaw as reference. Tempered steel for increased excellent precision and durability. Steel thickness 5.5mm. Grip model St.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSF 55/4 D)
CSP 30.1
102 g
CSP 30.1
102 g

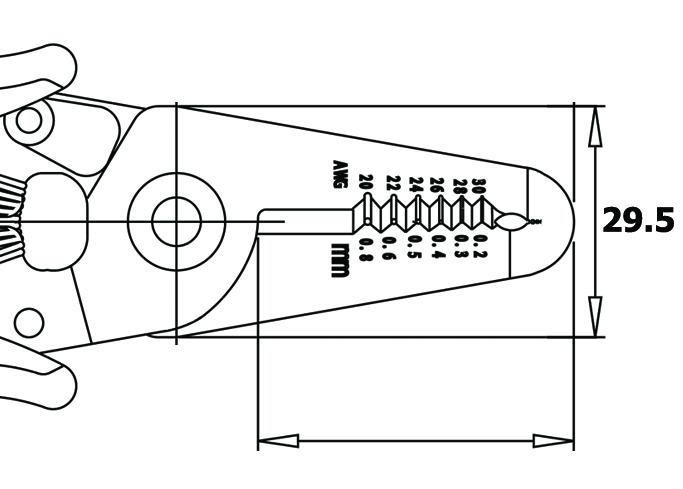

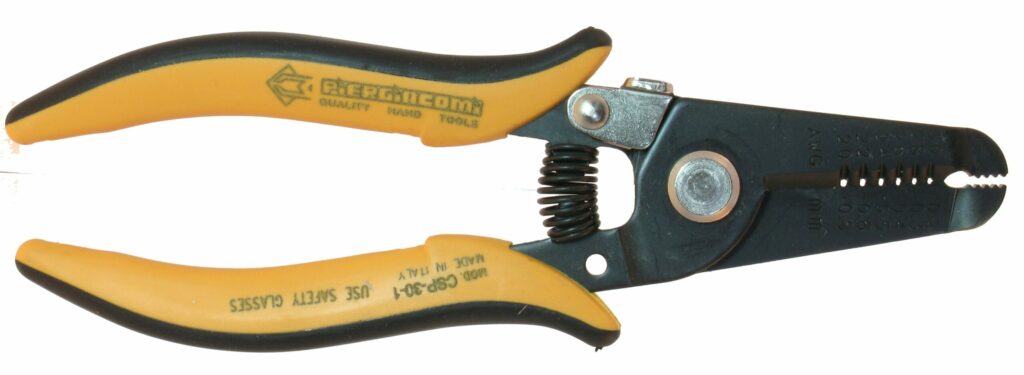

Very strong all-purpose tool, for stripping wires from Ø 0.2mm (30 awg), 0.3mm (28 awg), 0.4mm (26 awg), 0.5mm (24 awg), 0.6mm (22 awg), 0.8mm (20 awg).
It can be used as: Shears, Multi-diameter Wire stripper and Pliers. Steel thickness 3mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSP 30.1 D)
CSP 30.10
102 g
CSP 30.10
102 g
Very strong all-purpose tool, for stripping wires from Ø 0.8mm (20 awg), 1.0mm (18 awg), 1.3mm (16 awg), 1.6mm (14 awg), 2.0mm (12 awg), 2.6mm (10 awg).
It can be used as: Shears, Multi-diameter Wire stripper and Pliers. Steel thickness 3mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSP 30.2 D)
CSP 30.2
102 g
CSP 30.2
102 g

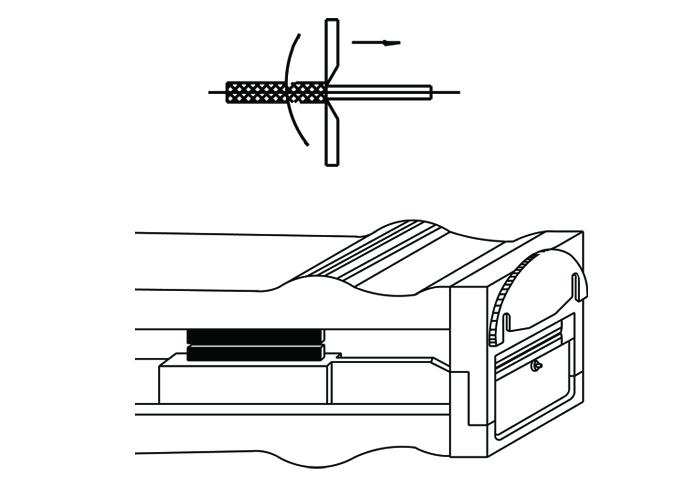

Stripping tweezers for removing insulating coatings from wires Ø 1.0mm.
Lightweight, inexpensive and rapid to use.
High carbon steel tweezers. Plastic handles.
For the electronics industry, repairs and handicrafts.
Made in Italy.

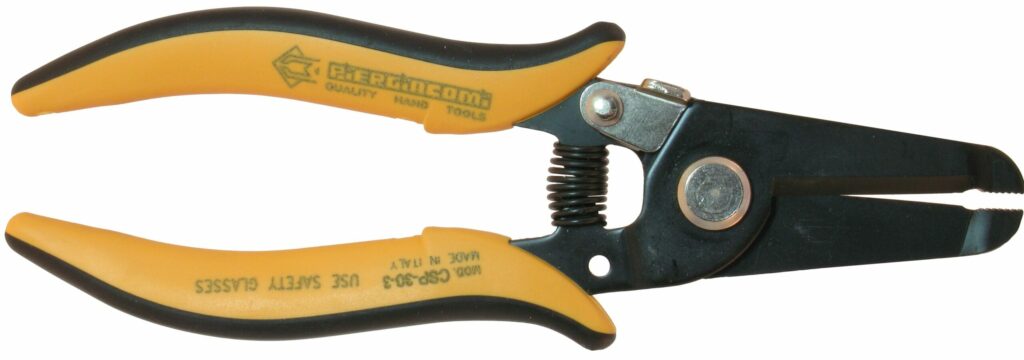

CSP 30.3
102 g
CSP 30.3
102 g

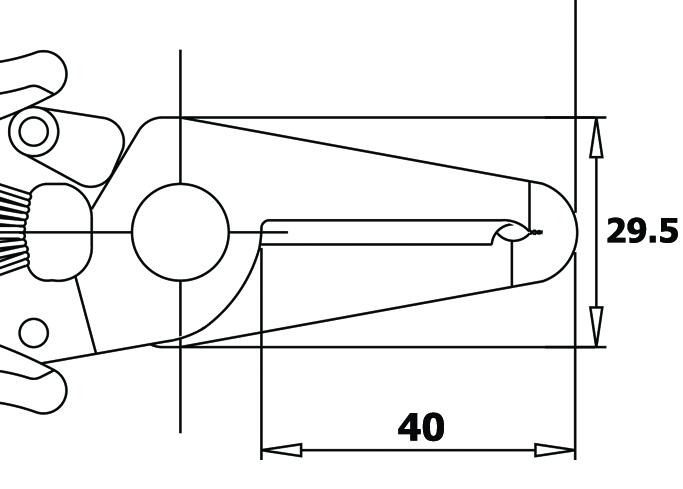

All-purpose tool that can be used as Shears or Pliers. Ideal for cutting electrical cables: Ø max 10 mm (000 awg). Steel thickness 3mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSP 30.3 D)

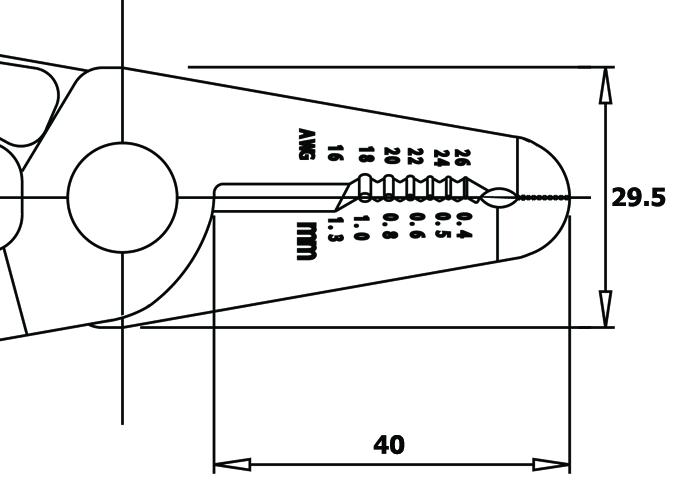

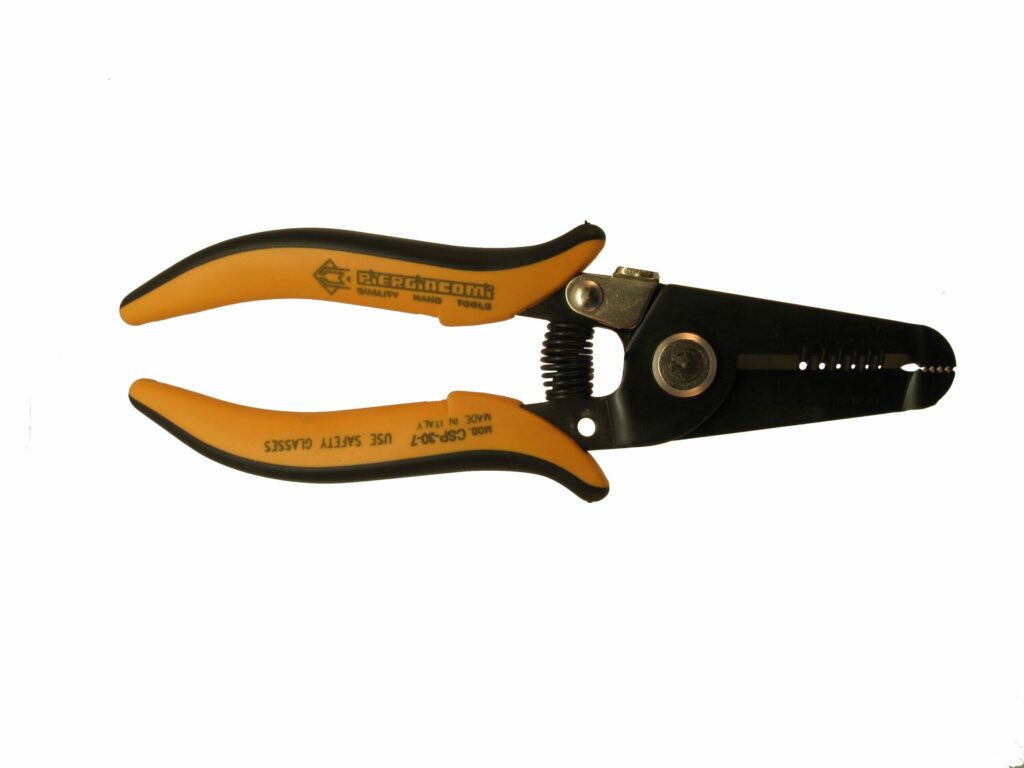

CSP 30.7
102 g
CSP 30.7
102 g
Very strong all-purpose tool, for stripping wires from Ø 1.3mm (16 awg), 1.0mm (18 awg), 0.8mm (20 awg), 0.6mm (22 awg), 0.5mm (24 awg), 0.4mm (26 awg).
It can be used as: Shears, Multi-diameter Wire stripper and Pliers. Steel thickness 3mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSP 30.7 D)

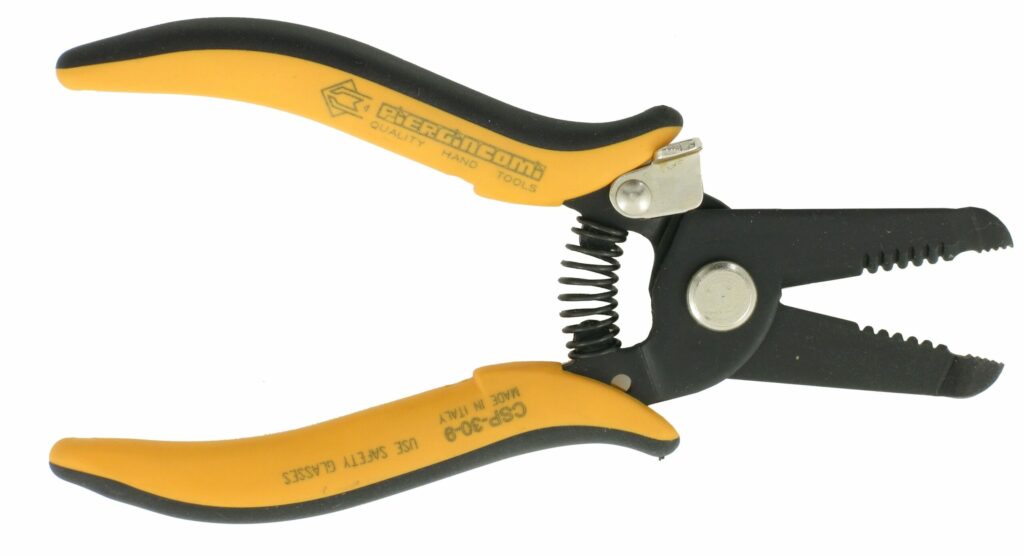

CSP 30.9
102 g
CSP 30.9
102 g
Very strong all-purpose tool. It can be used as: Shears, Multi-diameter Wire stripper and Pliers. Ideal for stripping flat wires (max. 6 wires 0.64 mm – 22 awg and 2.54 mm pitch). Steel thickness 3mm. Grip model S.
Also available in the following version:
– with ESD-safe handles in grey/black (code CSP 30.9 D)
