Cutters
| ORDER CODE | TIP | ESD ORDER CODE | SAFETY CODE | CLIP TYPE | IRON WIRE (Ø MM) | IRON WIRE (AWG) | COPPER WIRE (Ø MM) | COPPER WIRE (AWG) | STEEL WIRE (Ø MM) | STEEL WIRE (AWG) |
|---|---|---|---|---|---|---|---|---|---|---|
| ITR 30 |  | ITR 30 D | ITR 30 A | AL | Ø 1.02mm | 18 awg | Ø 1.30mm | 16 awg | - | - |
| ITR 30 58 | | ITR 30 58 D | ITR 30 58 A | AL | Ø 1.30mm | 16 awg | Ø 1.63mm | 14 awg | - | - |
| ITR 5000 | | ITR 5000 D | ITR 5000 A | AF | Ø 1.63mm | 14 awg | Ø 2.05mm | 12 awg | - | - |
| ITR 5000 R | | ITR 5000 R D | ITR 5000 R A | AF | Ø 1.63mm | 14 awg | Ø 2.05mm | 12 awg | - | - |
| ITR 58 | | ITR 58 D | ITR 58 A | AL | Ø 1.63mm | 14 awg | Ø 2.05mm | 12 awg | - | - |
| ITR 58 R | | ITR 58 R D | ITR 58 R A | AL | Ø 1.63mm | 14 awg | Ø 2.05mm | 12 awg | - | - |
| ITRR 58 | | ITRR 58 D | – | – | Ø 1.63mm | 14 awg | Ø 2.59mm | 10 awg | - | - |
| ITRR 58 G | | ITRR 58 G D | – | – | Ø 1.63mm | 14 awg | Ø 2.59mm | 10 awg | - | - |
| ORDER CODE | TIP | HEAD | IRON WIRE (8 MM) | IRON WIRE (AWG) | COPPER WIRE (8 MM) | COPPER WIRE (AWG) | STEEL WIRE (8 MM) | STEEL WIRE (AWG) |
|---|

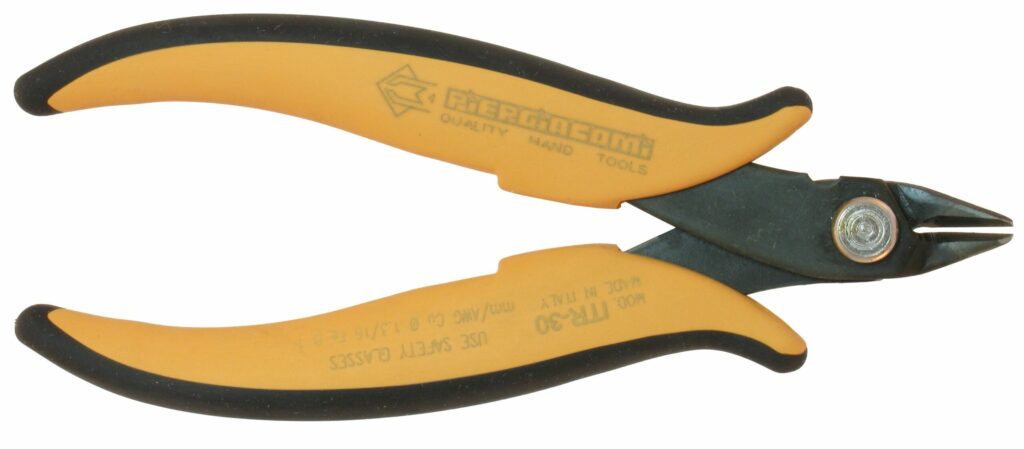

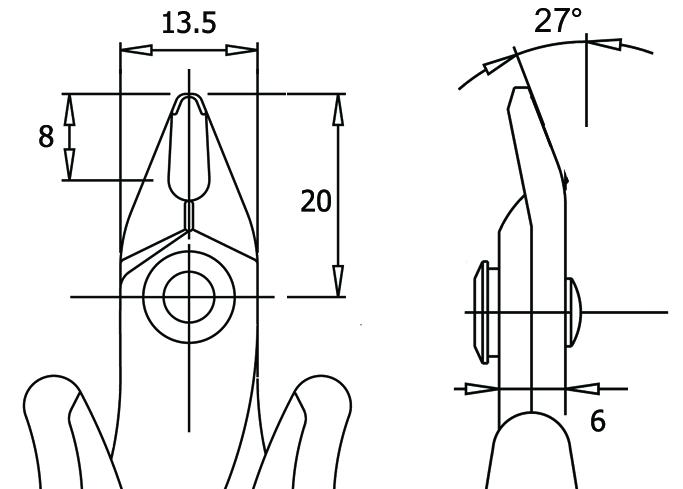

ITR 30
Medium
Ø 1.02mm
18 awg
Ø 1.30mm
16 awg
ITR 30
Medium
Ø 1.02mm
18 awg
Ø 1.30mm
16 awg
Resistant flush cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3 mm. Total length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 30 A)
– with ESD-safe handles in grey/black (code ITR 30 D & ITR 30 A D)

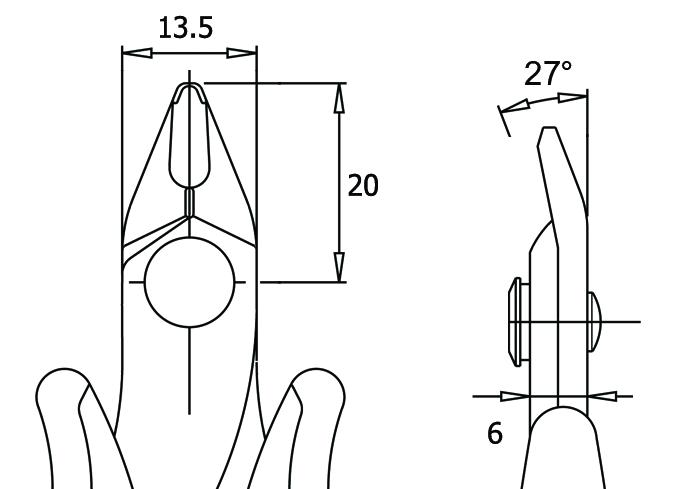

ITR 30 58
Medium
Ø 1.30mm
16 awg
Ø 1.63mm
14 awg
ITR 30 58
Medium
Ø 1.30mm
16 awg
Ø 1.63mm
14 awg
Resistant flush cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 30 58 A)
– with ESD-safe handles in grey/black (code ITR 30 58 D & ITR 30 58 A D)

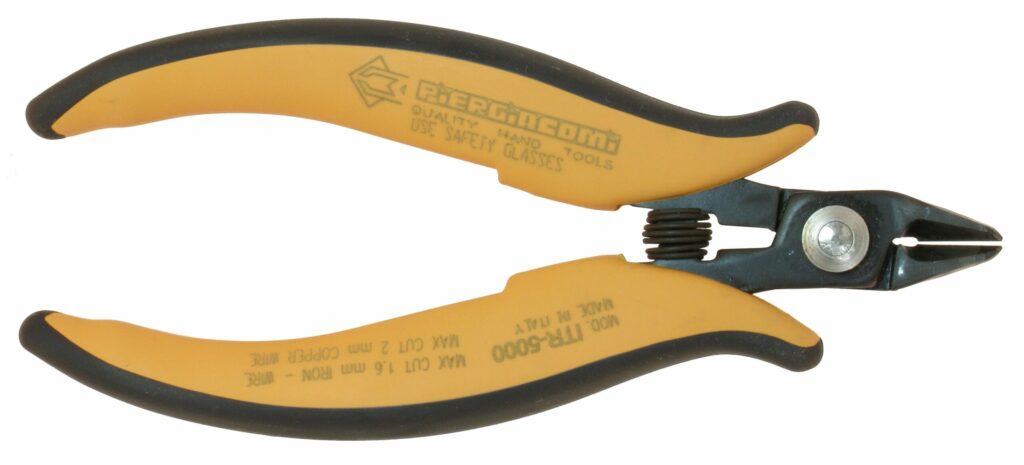

ITR 5000
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
ITR 5000
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
Resistant bevelled-edge cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 5 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 5000 A)
– with ESD-safe handles in grey/black (code ITR 5000 D & ITR 5000 A D)

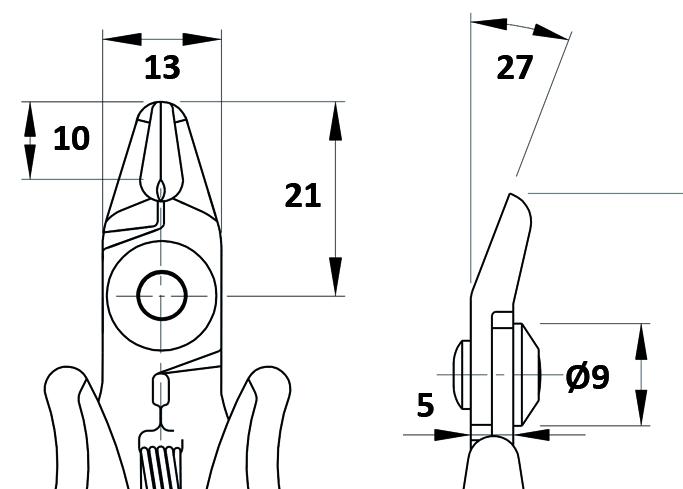

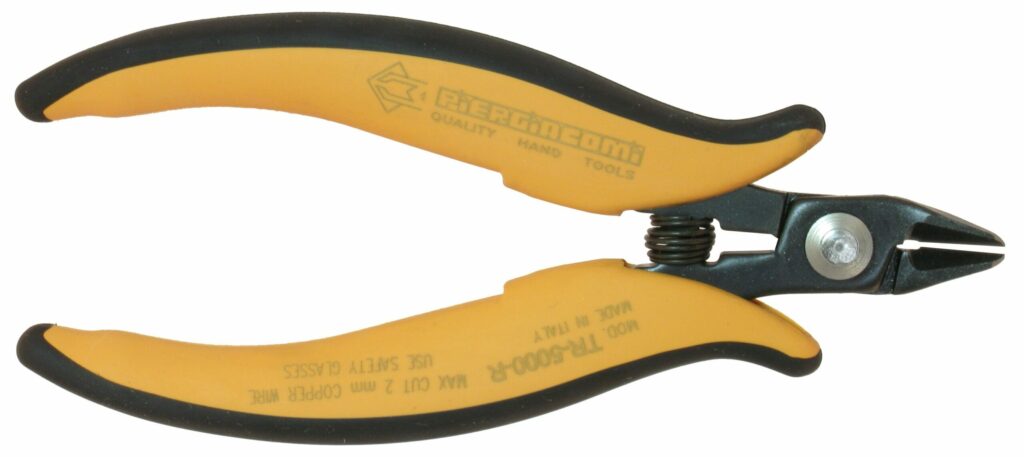

ITR 5000 R
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
ITR 5000 R
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
Resistant flush cutter with special INDUCTION-hardened cutting edges, suitable for copper wire, other soft materials and ferrous wire. Steel thickness 5 mm. Tool length 138mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 5000 R A)
– with ESD-safe handles in grey/black (code ITR 5000 R D & ITR 5000 R A D)

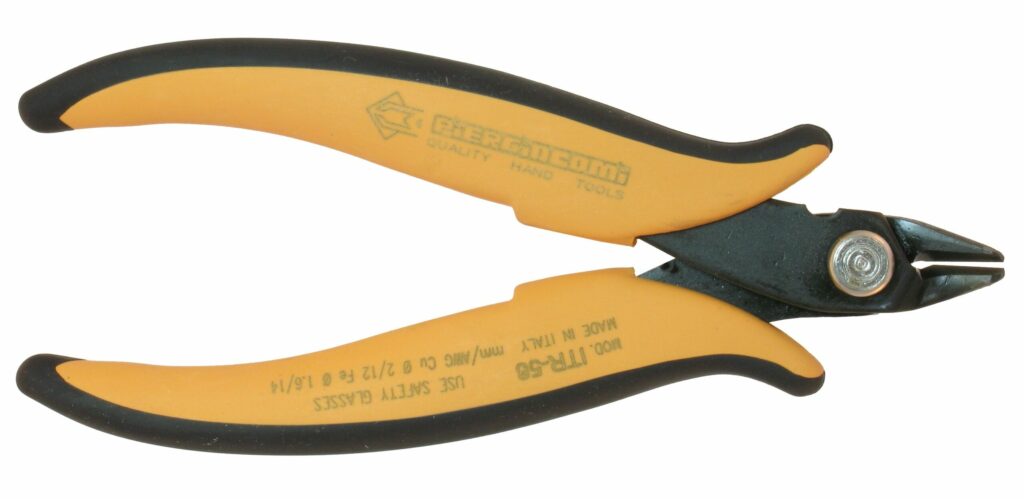

ITR 58
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
ITR 58
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
Resistant bevelled-edge cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3 mm. Total length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 58 A)
– with ESD-safe handles in grey/black (code ITR 58 D & ITR 58 A D)

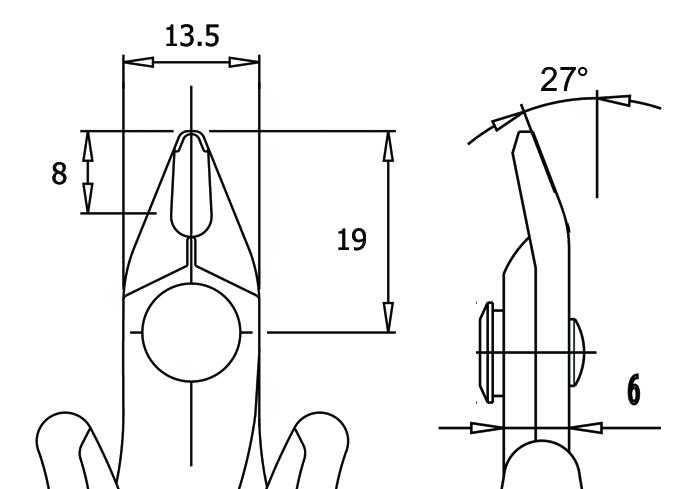

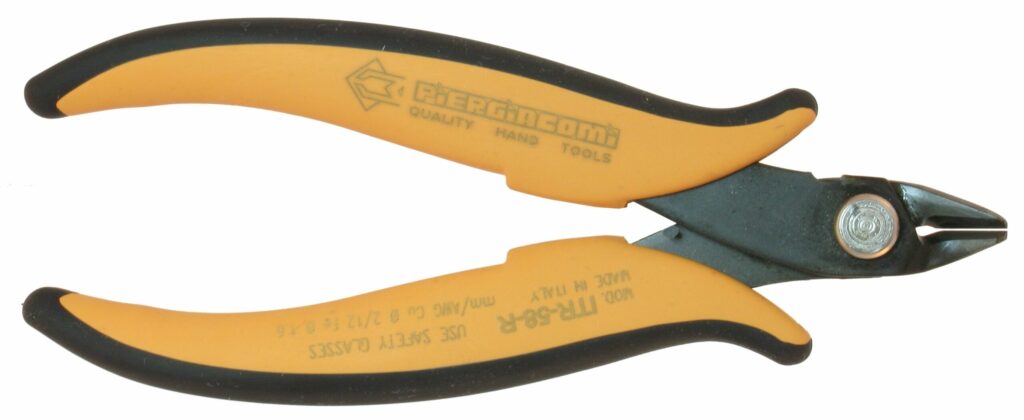

ITR 58 R
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
ITR 58 R
Medium
Ø 1.63mm
14 awg
Ø 2.05mm
12 awg
Resistant flush cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3 mm. Tool length 138 mm. Grip model St.
Also available in the following versions:
– with safety clip (code ITR 58 R A)
– with ESD-safe handles in grey/black (code ITR 58 R D & ITR 58 R A D)

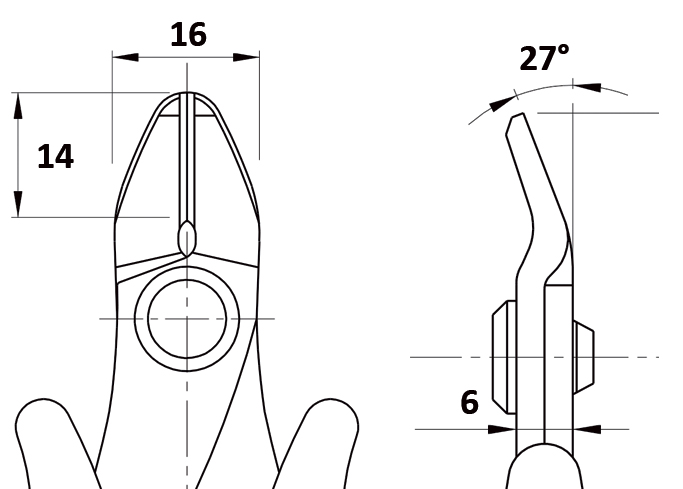

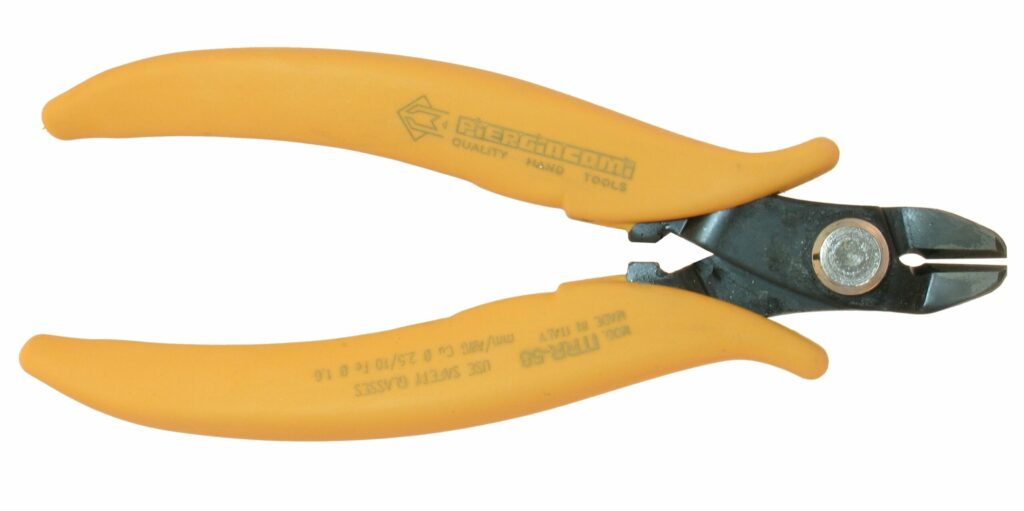

ITRR 58
Maxi
Ø 1.63mm
14 awg
Ø 2.59mm
10 awg
ITRR 58
Maxi
Ø 1.63mm
14 awg
Ø 2.59mm
10 awg
Resistant bevelled-edge cutter with special INDUCTION hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3mm. Tool length 160mm. Grip model B.
Also available in the following version:
– with ESD-safe handles in grey/black (code ITRR 58 D)

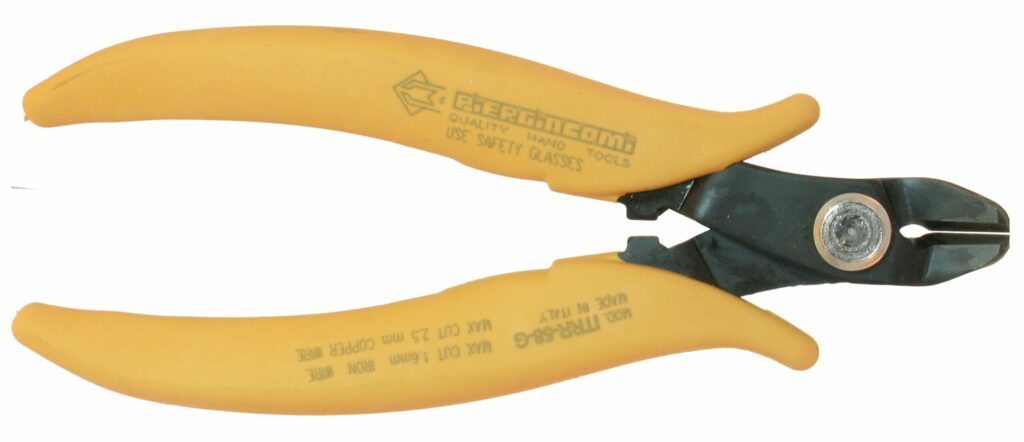

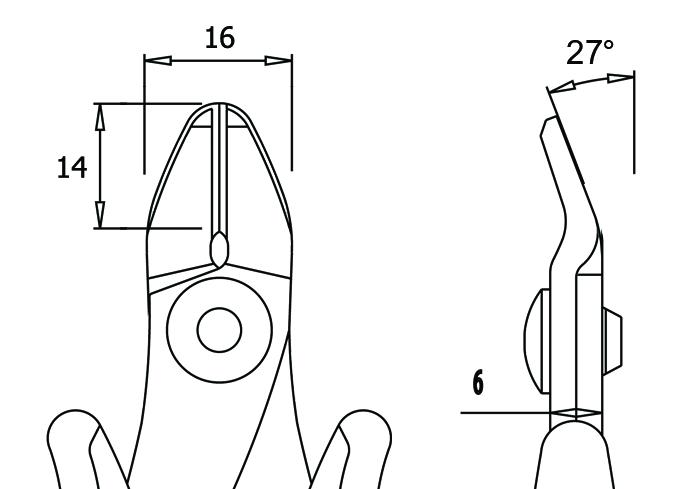

ITRR 58 G
Maxi
Ø 1.63mm
14 awg
Ø 2.59mm
10 awg
ITRR 58 G
Maxi
Ø 1.63mm
14 awg
Ø 2.59mm
10 awg
Resistant flush cutter with special INDUCTION-hardened cutting edges, suitable for copper and ferrous wires. Steel thickness 3 mm. Tool length 160mm. Grip model B.
Also available in the following version:
– with ESD-safe handles in grey/black (code ITRR 58 G D)
